Apparatus and method for creating corrugated cardboard, in particular on the site of systems for automatically forming packaging boxes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 25, 2018
Grant Date -
Aug 4, 2016
app pub date -
Jan 29, 2016
filing date -
Jan 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

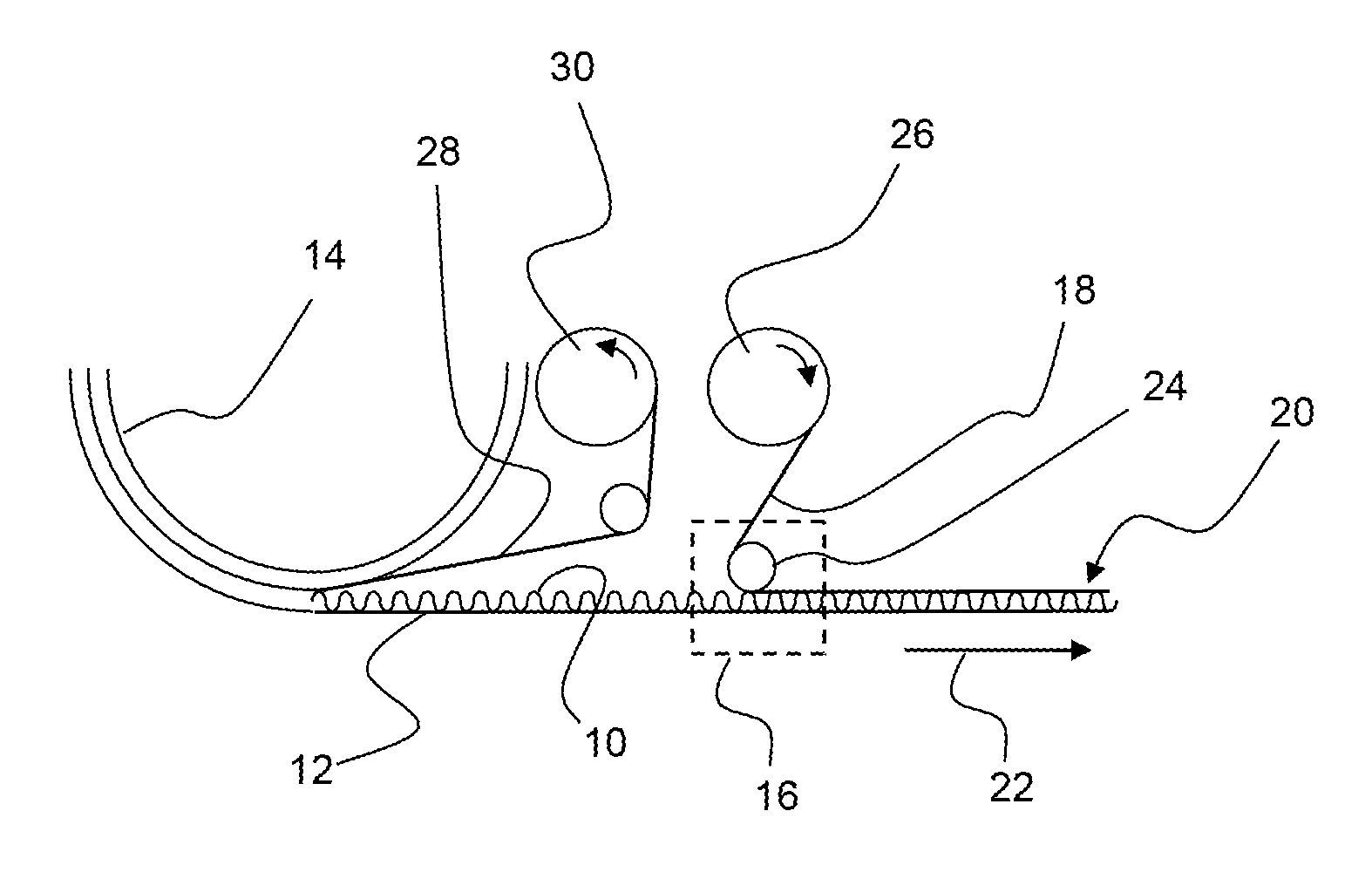

A apparatus for creating corrugated cardboard (20) in particular on the site of a system for automatically forming packaging boxes, said corrugated cardboard having at least one corrugated layer (10) between two flat layers (12, 18). The apparatus includes a joining station (16) for attaching a second flat layer (18) to a corrugated layer (10) provided on a first flat layer (12), means for supplying said corrugated layer (10) with the first flat layer (12) attached thereto to said joining station (16) and means for supplying said second flat layer (18) to said joining station, means for removing a protective layer (28) from the corrugated layer (10) and/or the second flat layer (18), said protective layer (28) protecting an adhesive substance provided on the corrugated layer (10) or the second flat layer (18).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B31F Class
- 111 Applications Filed
- 77 Patents Issued To-Date
- 69.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B31F Class
- 38.58 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 25, 2030 |
