REACTOR DEVICE AND METHOD FOR MANUFACTURING REACTOR DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 21, 2016
app pub date -
Sep 5, 2014
filing date -
Sep 10, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

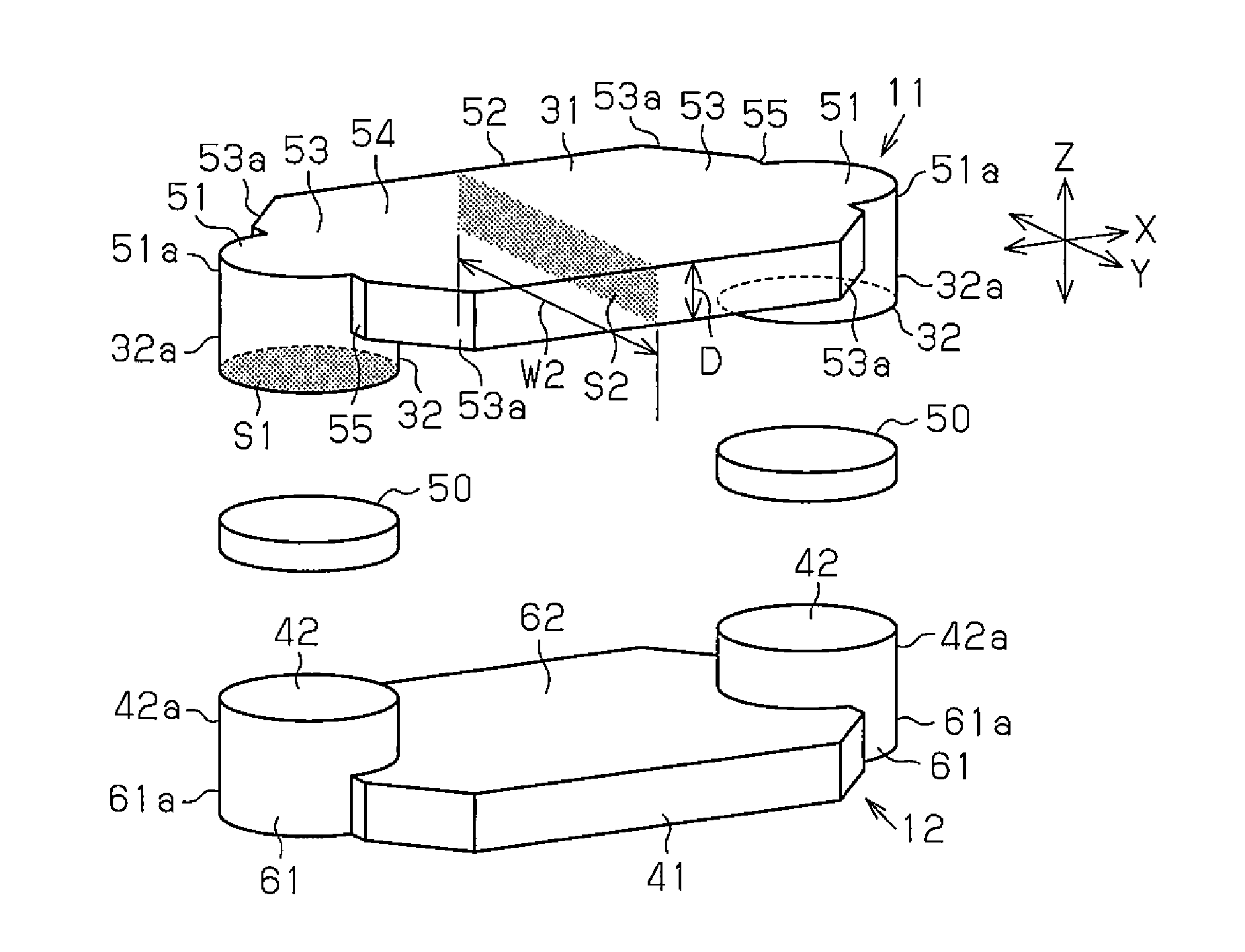

A reactor includes a first core, a second core, and coils. The first core and the second core each include a plate-shaped base and two legs that extend from one plate surface of the base and are arranged in a layout direction. The legs of the first core are extended toward and spaced apart from the legs of the second core. Each of the bases includes narrow portions and a wide portion. The narrow portions are respectively arranged at two ends of the base in the layout direction. The narrow portions each include an end surface that is flush with a side surface of a corresponding one of the legs in a thickness-wise direction. The wide portion is arranged between the two narrow portions. The wide portion has a larger dimension in a widthwise direction than a maximum dimension of the legs in the widthwise direction.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5812068 | Sep 10, 2013 |
| WO | A1 | WO2015037544 | Sep 05, 2014 |
| EP | A1 | EP3046122 | Sep 05, 2014 |
| TW | A | TW201519268 | Sep 09, 2014 |
International Classification(s)
- 2014 Application Filing Year
- H01F Class
- 1722 Applications Filed
- 1461 Patents Issued To-Date
- 84.85 % Issued To-Date
