BOX APPARATUS FOR A VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 21, 2016
app pub date -
Jun 13, 2014
filing date -
Jun 13, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

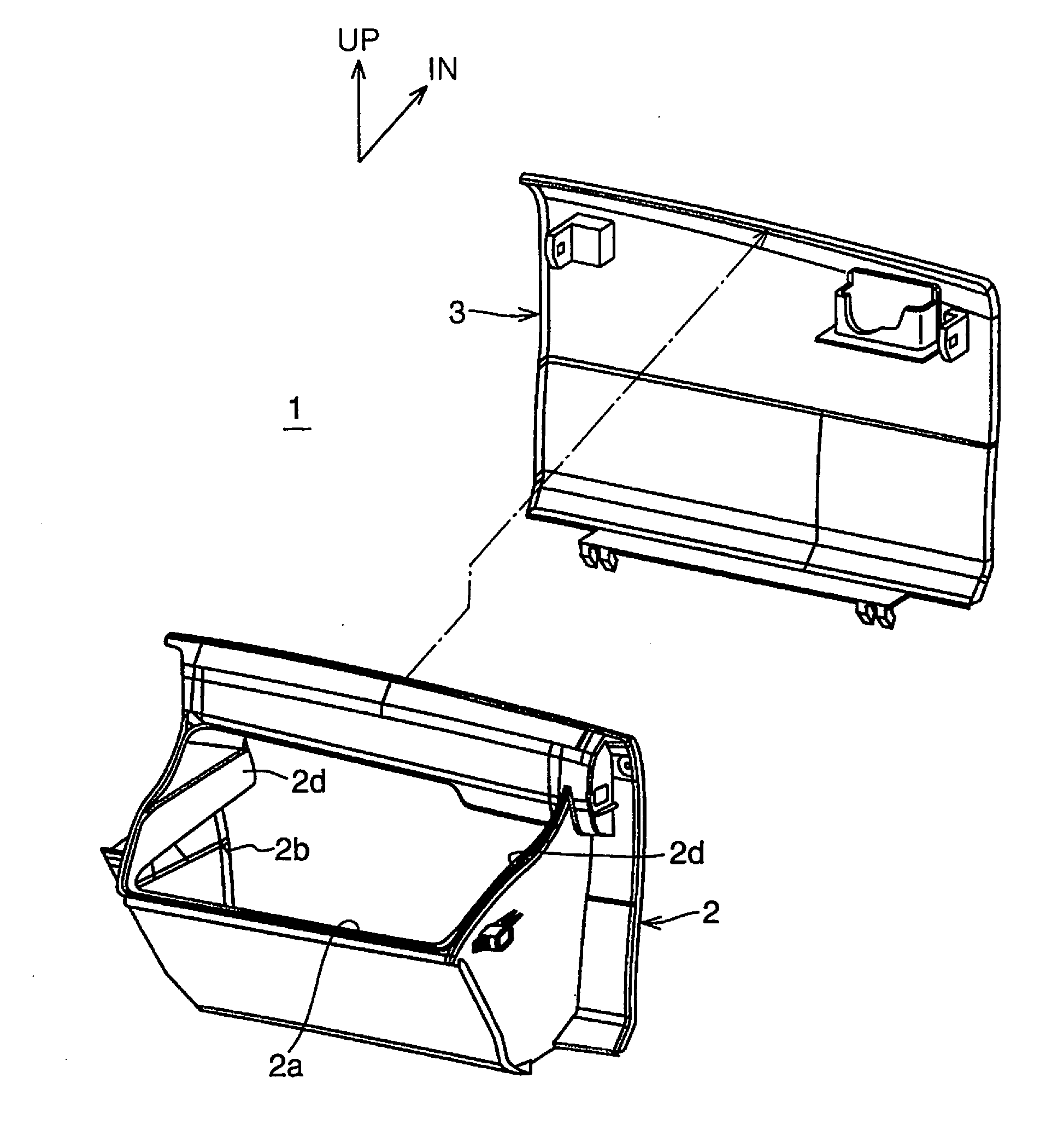

An outer member and an inner member are coupled to each other by causing an engagement-male portion to engage with an engagement-female portion. Therefore, vibration-welding of the outer member with the inner member can be removed and thus, problems generated during vibration-welding can be avoided. Further, a front wall panel and a bottom wall panel are connected to each other via an integral hinge and a rear wall panel and the bottom wall panel are connected to each other via another integral hinge. Therefore, the inner member at a stage after having been manufactured and before being coupled with the outer member can be developed to a flat plate configuration.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60R Class
- 9.67 % this patent is cited more than
- 9 Age
