METHODS OF FABRICATING POLYGON-SECTIONAL RODLIKE INGOT AND SUBSTRATE WITH ORIENTATION MARKER OR ROUNDED CORNERS, RODLIKE INGOT AND SUBSTRATE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 14, 2016
app pub date -
Dec 27, 2013
filing date -
Sep 26, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

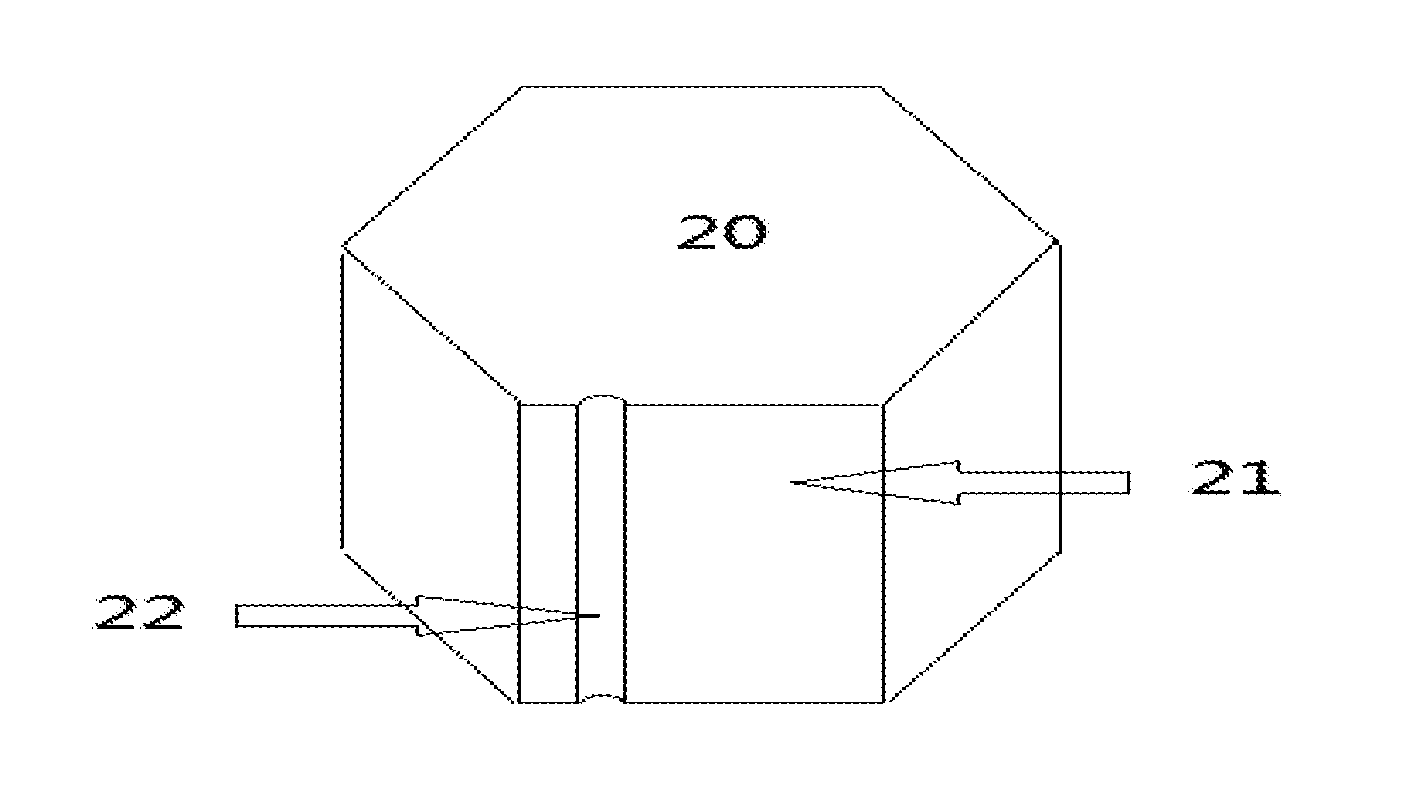

The present invention discloses a method of forming a polygon-sectional rodlike ingot having an orientation marker or rounded corners, a rodlike ingot and a sheet substrate so formed. The method comprises: selecting one of sides of the polygon-sectional rodlike ingot that is parallel to an axial direction thereof as a first feature of a surface orientation marker; forming a minisize notch, which is parallel to an edge, in the one of sides selected as the first feature in the axial direction of the rodlike ingot, as a second feature of the orientation marker; and processing the rodlike ingot to form rounded corners. The sheet substrate is obtained by cutting the rodlike ingot.
First Claim
Other Claims data not available
