Substrate Processing Apparatus, Gas Dispersion Unit, Method of Manufacturing Semiconductor Device and Non-Transitory Computer-Readable Recording Medium
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 14, 2016
app pub date -
Mar 26, 2015
filing date -
Mar 26, 2015
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

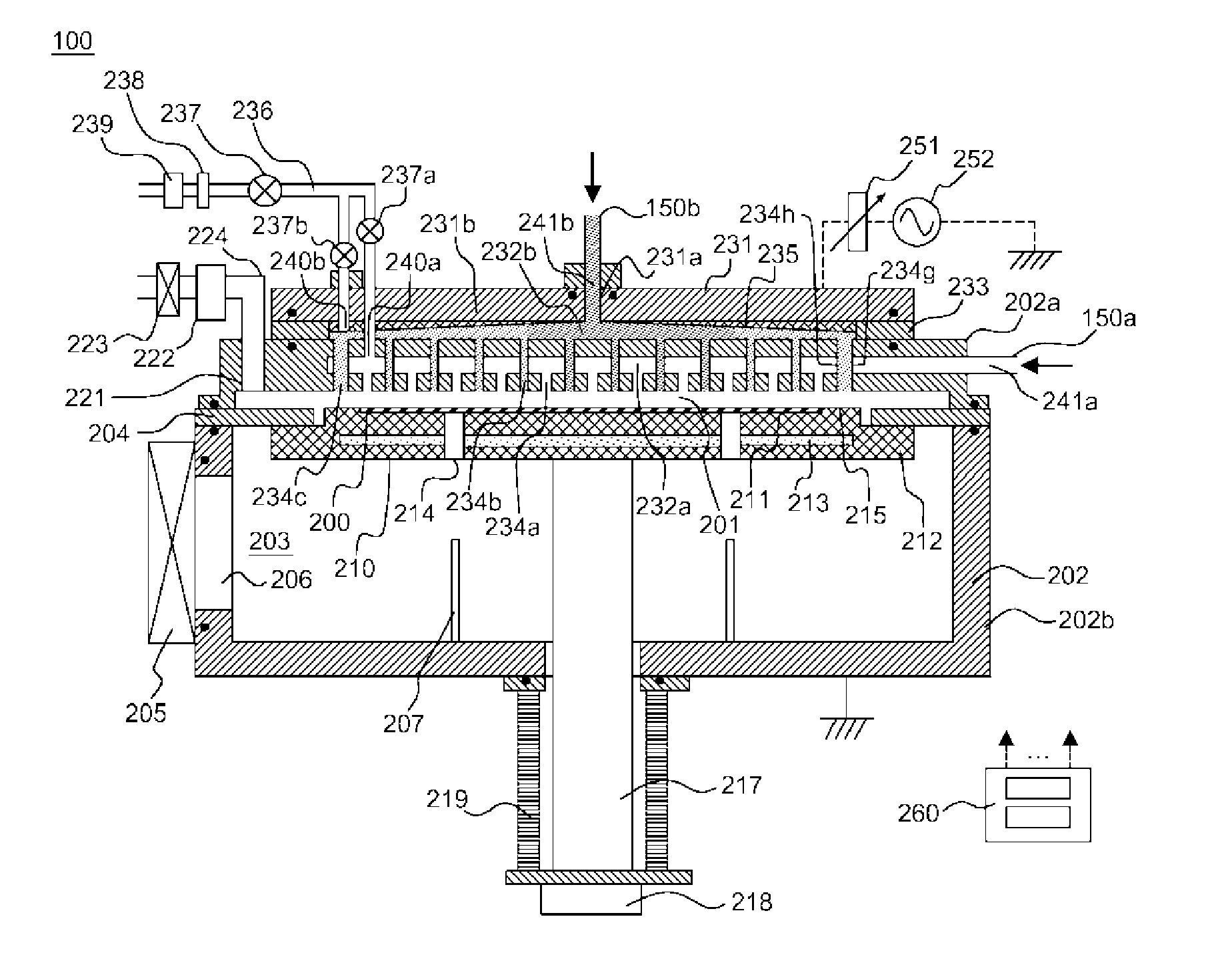

Characteristics of a film formed on a substrate and a manufacturing throughput can be improved. A substrate processing apparatus includes a process chamber configured to process a substrate; a substrate placement unit; and a gas dispersion unit, the gas dispersion unit including: a first supply region facing the substrate and including a first gas dispersion hole configured to supply a first gas and a second gas dispersion hole configured to supply a second gas; and a second supply region facing a portion of a surface of the substrate placement unit outer than a portion of the surface of the substrate placement unit occupied by the substrate and including a third gas dispersion hole having a diameter greater than that of the second gas dispersion hole and configured to supply the second gas.
First Claim
Other Claims data not available
