VEHICULAR DOOR FRAME, AND VEHICULAR DOOR FRAME INTERMEDIARY MEMBER

Number of patents in Portfolio can not be more than 2000

United States of America Patent

SERIAL NO

14913487

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

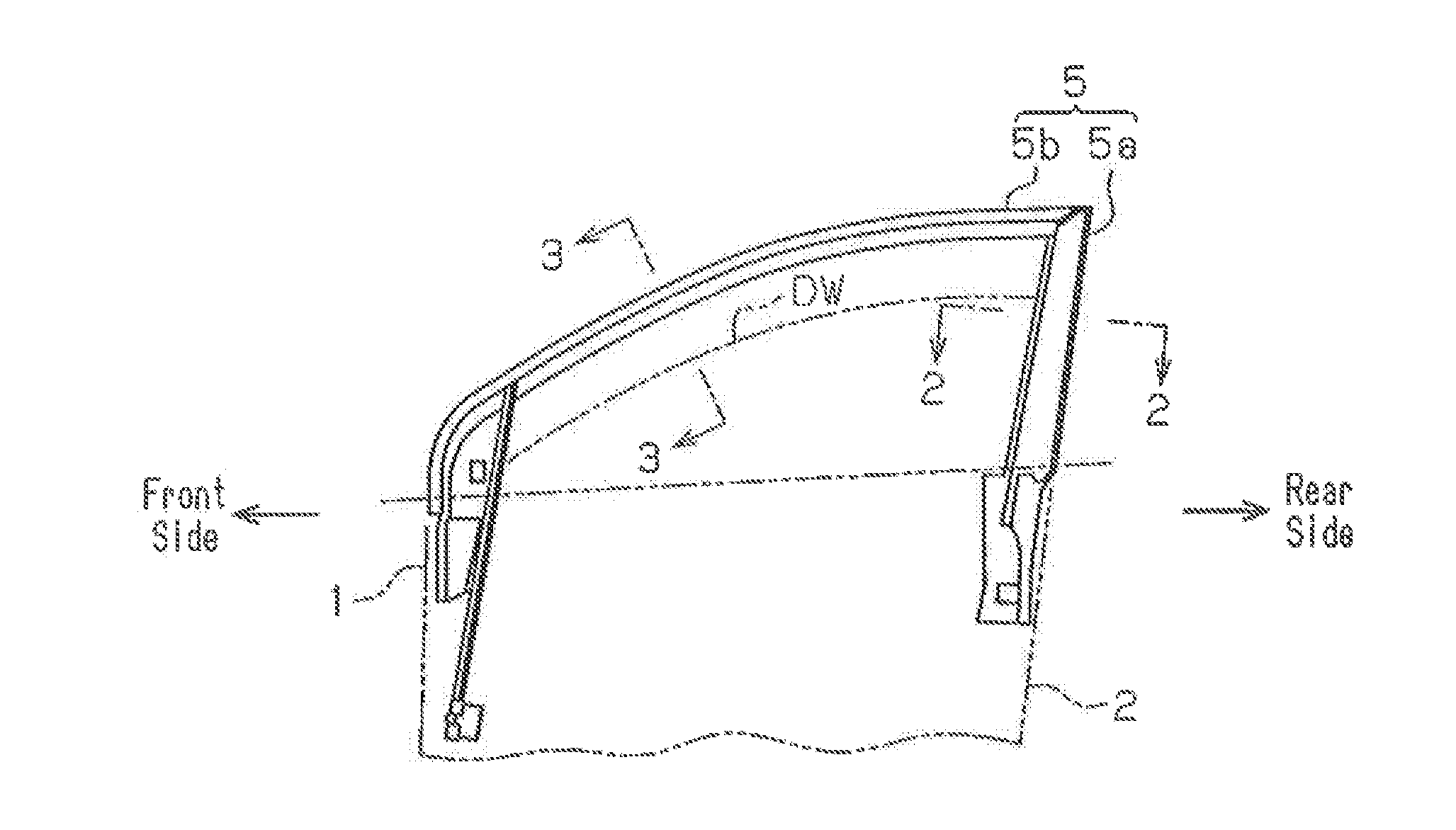

A vehicular door frame includes an outer member constituting a glass-run housing portion and an inner member to be coupled to the outer member. The outer member includes a folded portion with substantially U-shaped cross-section and a return portion. The return portion raises a portion of the housing portion closer to a proximal end portion than the folded portion in a flat manner at least to a first-side end position of the folded portion. The inner member includes an extended portion and a distal end surface on an edge portion of the extended portion. A projection portion on the distal end surface protrudes toward a first side. The projection portion is arranged at a predetermined position on the inner member in the longitudinal direction, and is heated and melted through current concentration during resistance welding, and the distal end surface and a facing portion of the folded portion are pressure-bonded.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
AISIN SEIKI KABUSHIKI KAISHA1 ASAHI-MACHI 2-CHOME KARIYA-SHI AICHI-KEN 448-8650

International Classification(s)

loading....
  • 2014 Application Filing Year
  • B60J Class
  • 574 Applications Filed
  • 487 Patents Issued To-Date
  • 84.85 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2014201520162017201820192020202120220255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
SATO, Eisuke Nagoya-shi, JP 18 98
YANAI, Toshifumi Chita-gun, JP 7 62
