COMBINED BRAZE AND COATING METHOD FOR FABRICATION AND REPAIR OF MECHANICAL COMPONENTS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 14, 2015
filing date -
Jan 14, 2015
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

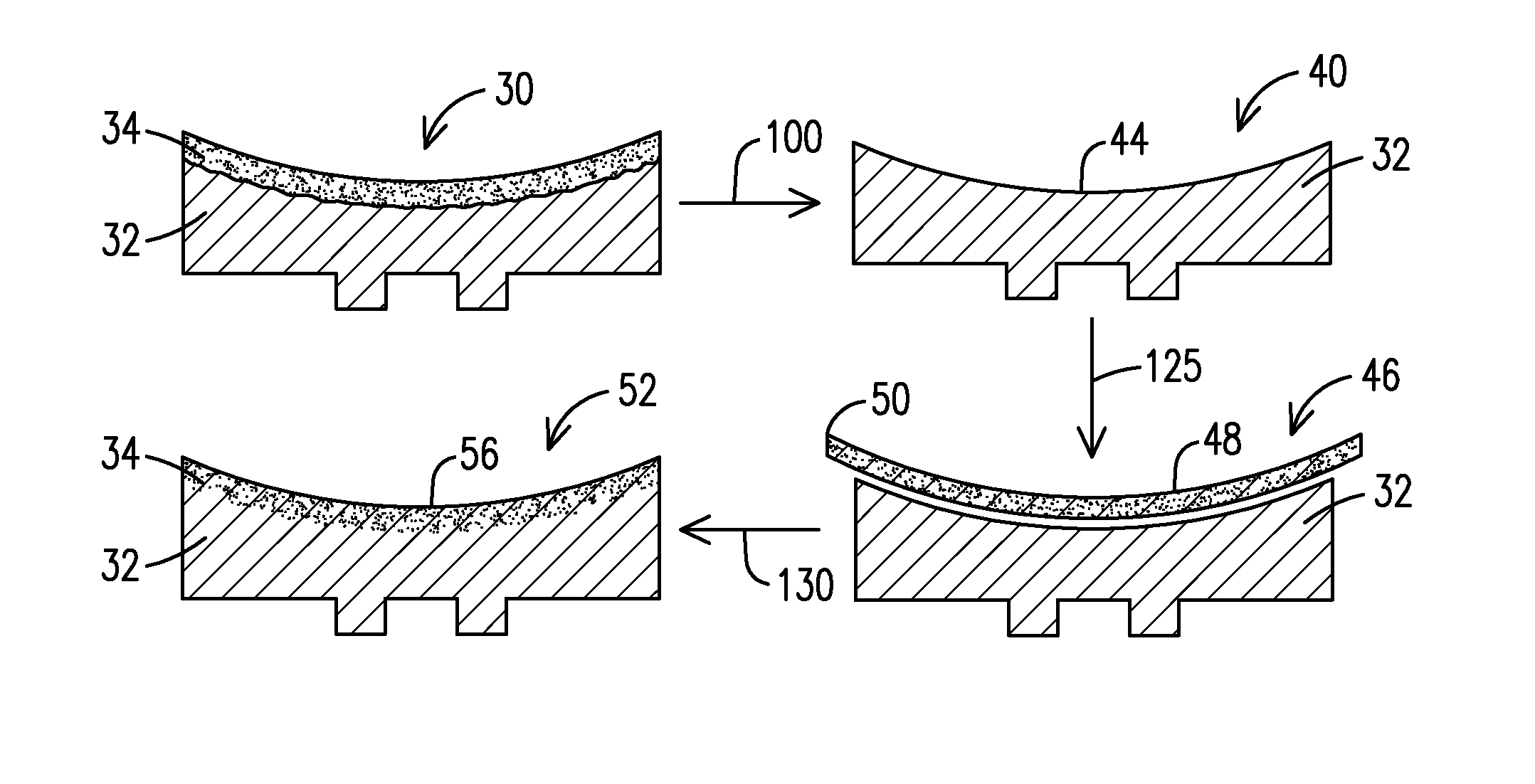

A method disclosed herein involves disposing (125) a pre-sintered preform (50) onto a machined component surface (44) to form a pre-braze assembly. The pre-braze assembly is then heated (130) in order the melt the preform at a temperature less than a liquidus temperature of the component surface to form a multi-layer component (52) having a protective surface (56). The preform may be formed by sintering a first powder including a protective alloy and a second powder including a composition of the protective alloy that is supplemented with an additional element such that a solidus temperature of the second powder is lower than a solidus temperature of the first powder. The method allows a service run gas turbine ring segment (30) to be repaired without chemical stripping or welding.
First Claim
Other Claims data not available
