Backlight source and display apparatus comprising the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Jul 16, 2015
filing date -
Jan 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

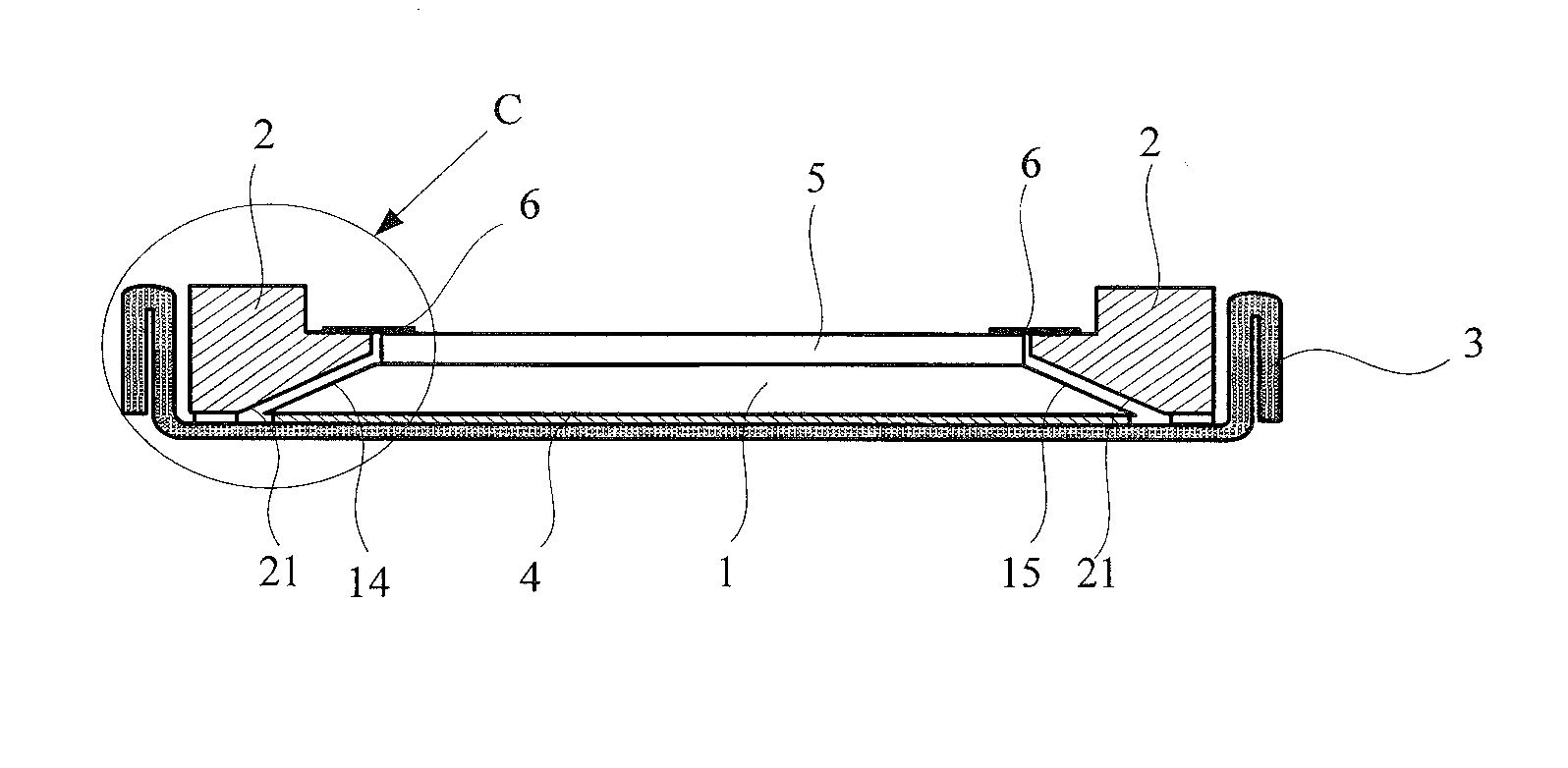

The present disclosure provides a backlight source and a display apparatus. The backlight source comprises: a light guide plate and an adhesive frame. The light guide plate comprises: a light incidence face, a light exit face connected to the light incidence face, a bottom face opposed to the light exit face, and at least one lateral faces configured to connect the light exit face to the bottom face and to be inclined with respect to the bottom face, a projection of the at least one lateral faces with respect to the bottom face falling within the bottom face. The adhesive frame is located at a periphery of the light guide plate, wherein faces of the adhesive frame which face towards the respective lateral faces are matched with the respective lateral faces.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F21V Class
- 3770 Applications Filed
- 2807 Patents Issued To-Date
- 74.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F21V Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
