TOUCH PANEL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 30, 2016
app pub date -
Feb 16, 2015
filing date -
Dec 26, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

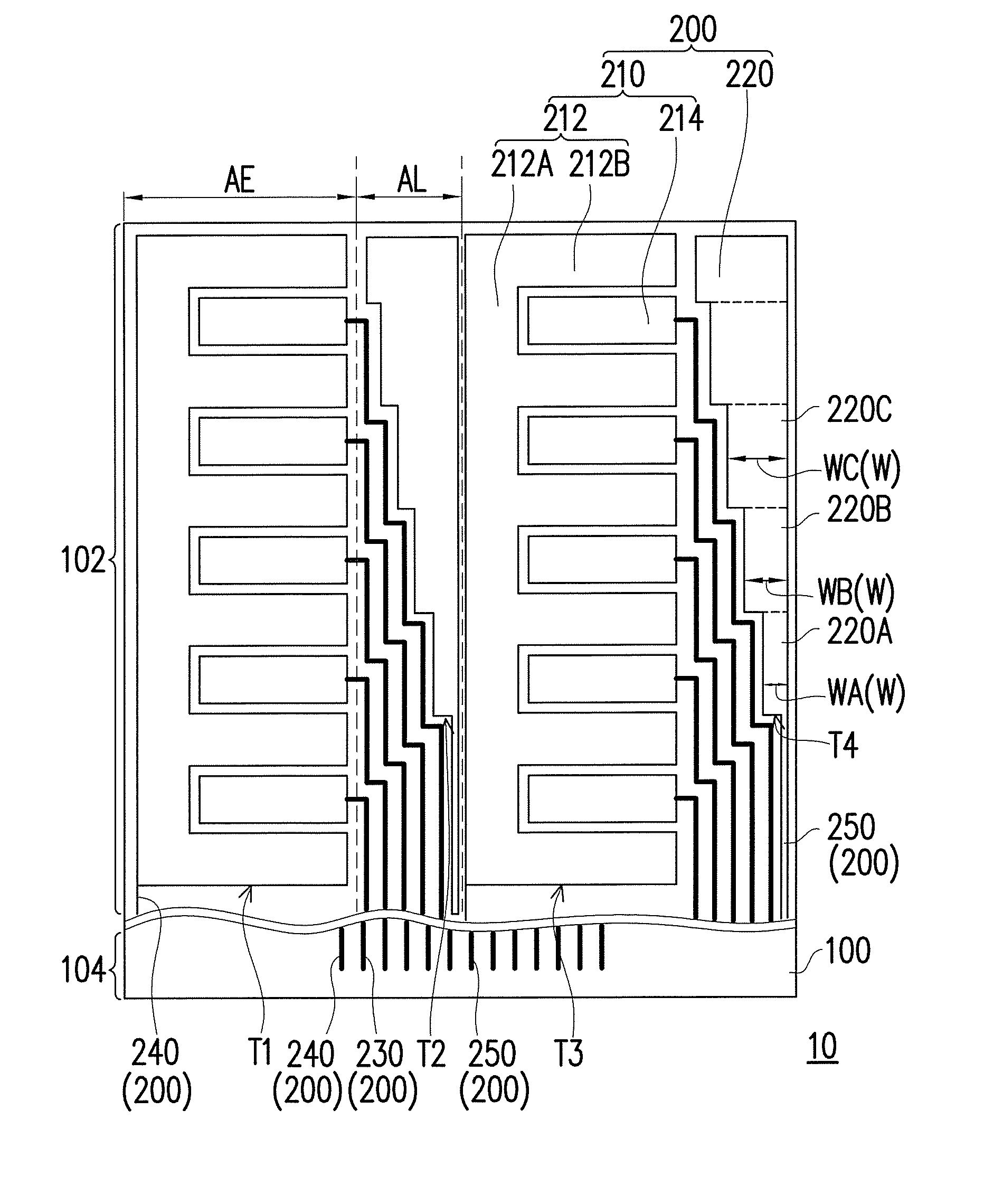

A touch panel including a substrate having an active region and a bonding region and a patterned conductive layer disposed on the substrate. The active region includes electrode regions and signal transmission regions alternately arranged. The patterned conductive layer includes first sensing units, second sensing units and signal transmission lines. Each first sensing unit is located in one electrode region, each second sensing unit is located in one signal transmission region and the signal transmission lines are located in the signal transmission regions and extended into the bonding region. Each first sensing unit is used for performing a mutual-capacitive touch sensing and includes at least one scan electrode and readout electrodes. Each second sensing unit is used for performing a self-capacitive touch sensing and formed by a bar-like electrode. Each transmission line is connected to one readout electrode.
First Claim
Other Claims data not available
