Self-propelled road milling machine for working road surfaces, as well as method for working road surfaces with a road milling machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Jun 30, 2016
app pub date -
Dec 18, 2015
filing date -
Dec 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

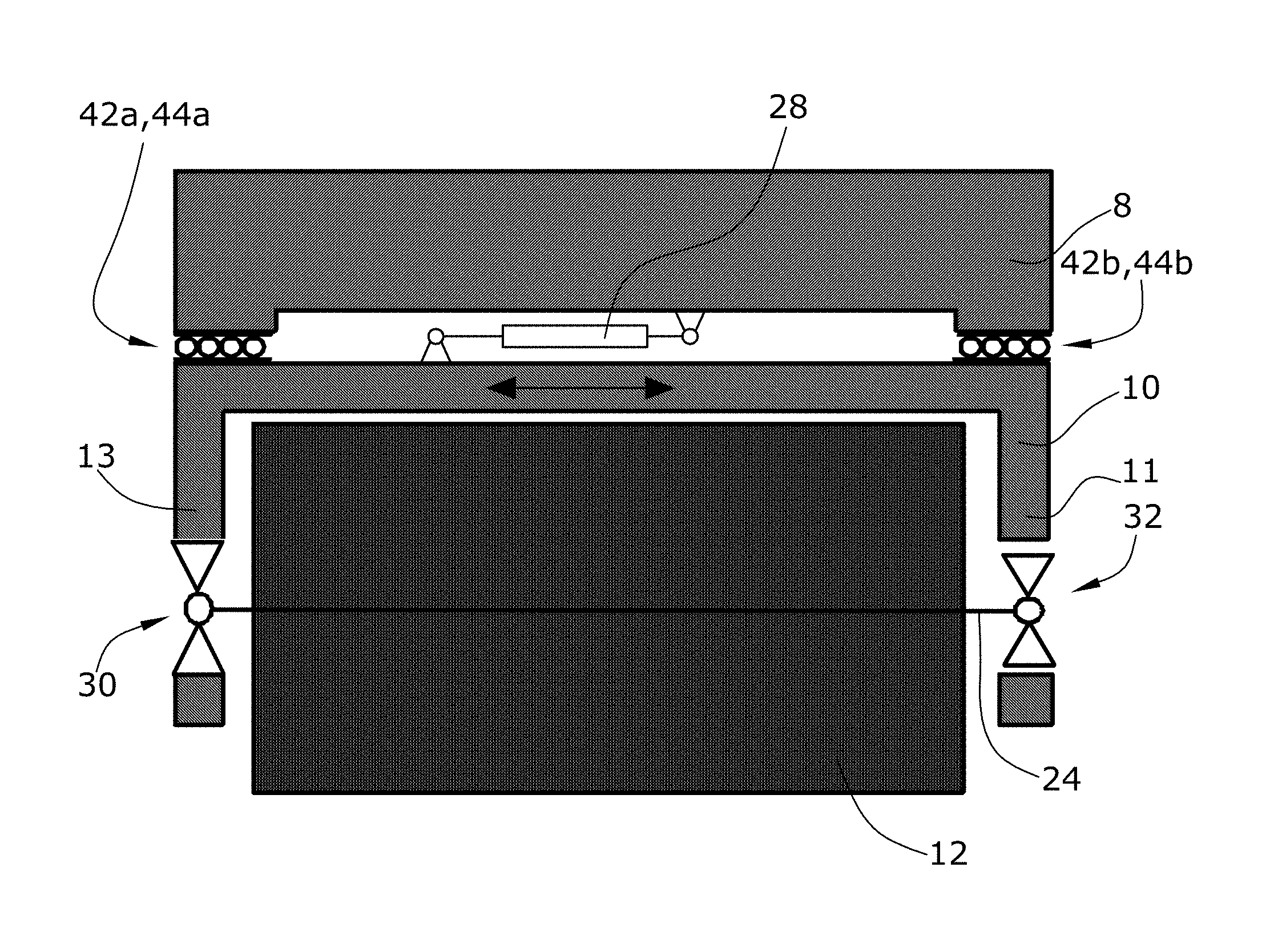

In a self-propelled road milling machine for working road surfaces, comprising a machine frame, comprising a milling drum mounted to rotate and extending in axial direction transverse to the direction of travel, and a milling drum housing enclosing the milling drum, where the milling drum comprises multiple tools circumferentially preferably arranged in the shape of a helix, where the tools, except for the axial peripheral area, feature a specified mutual line spacing, it is provided for the following features to be achieved: an oscillation drive exercises an oscillation stroke on the axis of the milling drum moving to and fro in axial direction relative to the machine frame, where the rotating movement of the tools is superimposable with an axial movement parallel to the axis of the milling drum, the stroke of which is adjustable to the line spacing between two axially neighboring tools.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E01C Class
- 372 Applications Filed
- 309 Patents Issued To-Date
- 83.07 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E01C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
