MAGNETIC ELEMENT USING BANK WINDING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 23, 2016
app pub date -
Aug 7, 2015
filing date -
Dec 23, 2014
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

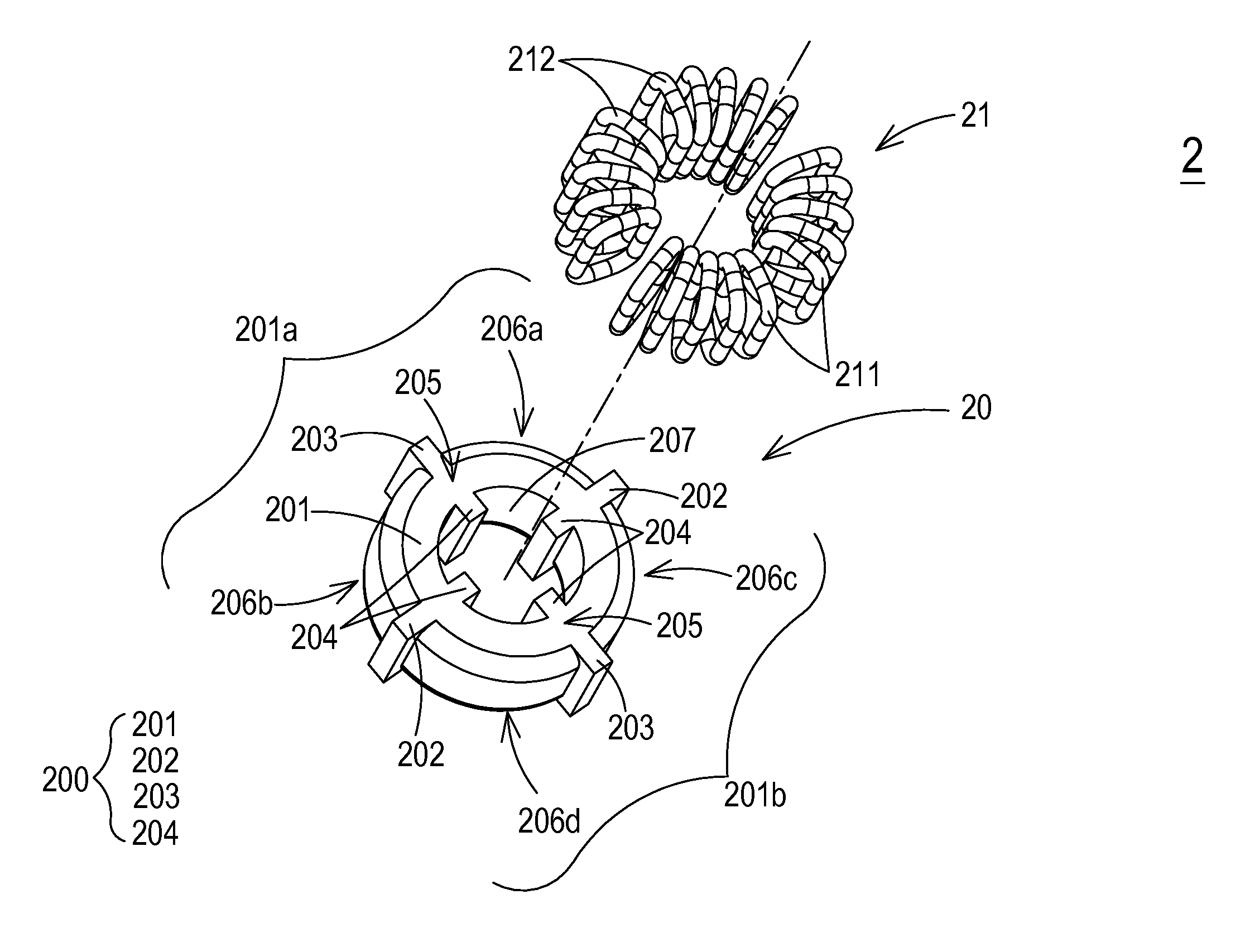

A magnetic element using a bank winding method is provided. The magnetic element includes a toroid core module and at least two winding coil assemblies. The toroid core module includes a magnetic core, at least two first position-limiting structures and at least two second position-limiting structures. The at least two winding coil assemblies are wound around the toroid core module. The at least two winding coil assemblies are separated from each other through the at least two first position-limiting structures. Moreover, two adjacent windings of a middle portion of each winding coil assembly are separated by a specified length through the corresponding second position-limiting structure.
