SLIDING WALL SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 23, 2016
app pub date -
Nov 18, 2015
filing date -
Nov 18, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

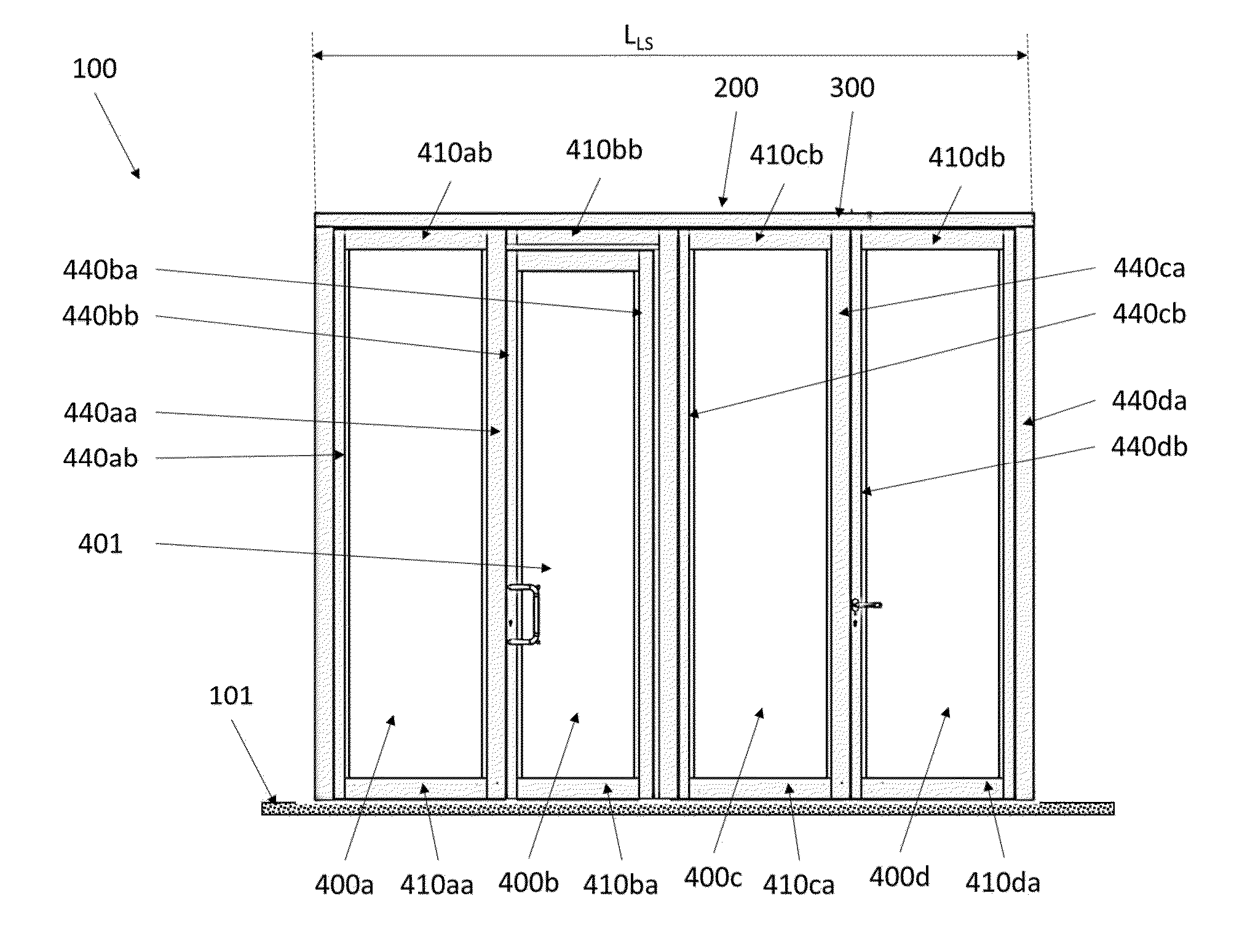

A horizontal sliding wall system includes a ceiling guide with at least one running rail, and at least one door leaf element connected to a roller carriage, which is disposed in the ceiling guide to be displaceable. At least one door leaf element is configured in the ceiling guide to be pivotable and displaceable as a swing sliding leaf. The swing sliding leaf includes a swing leaf door and an interlocking handle, which is configured to be rotatable between first and second interlocking positions, and further includes first and second gear arrangements. The first gear arrangement transforms the rotary motion of the interlocking handle into a vertical translatory motion of first and second interlocking rods. The second gear arrangement is coupled to at least one of the interlocking rods such that the vertical translatory motion of one interlocking rod is transformed into a horizontal movement of a third interlocking rod.
First Claim
Other Claims data not available
