CAGE STUD ASSEMBLY AND RELATED ASSEMBLY METHODS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 16, 2016
app pub date -
Dec 10, 2014
filing date -
Dec 10, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

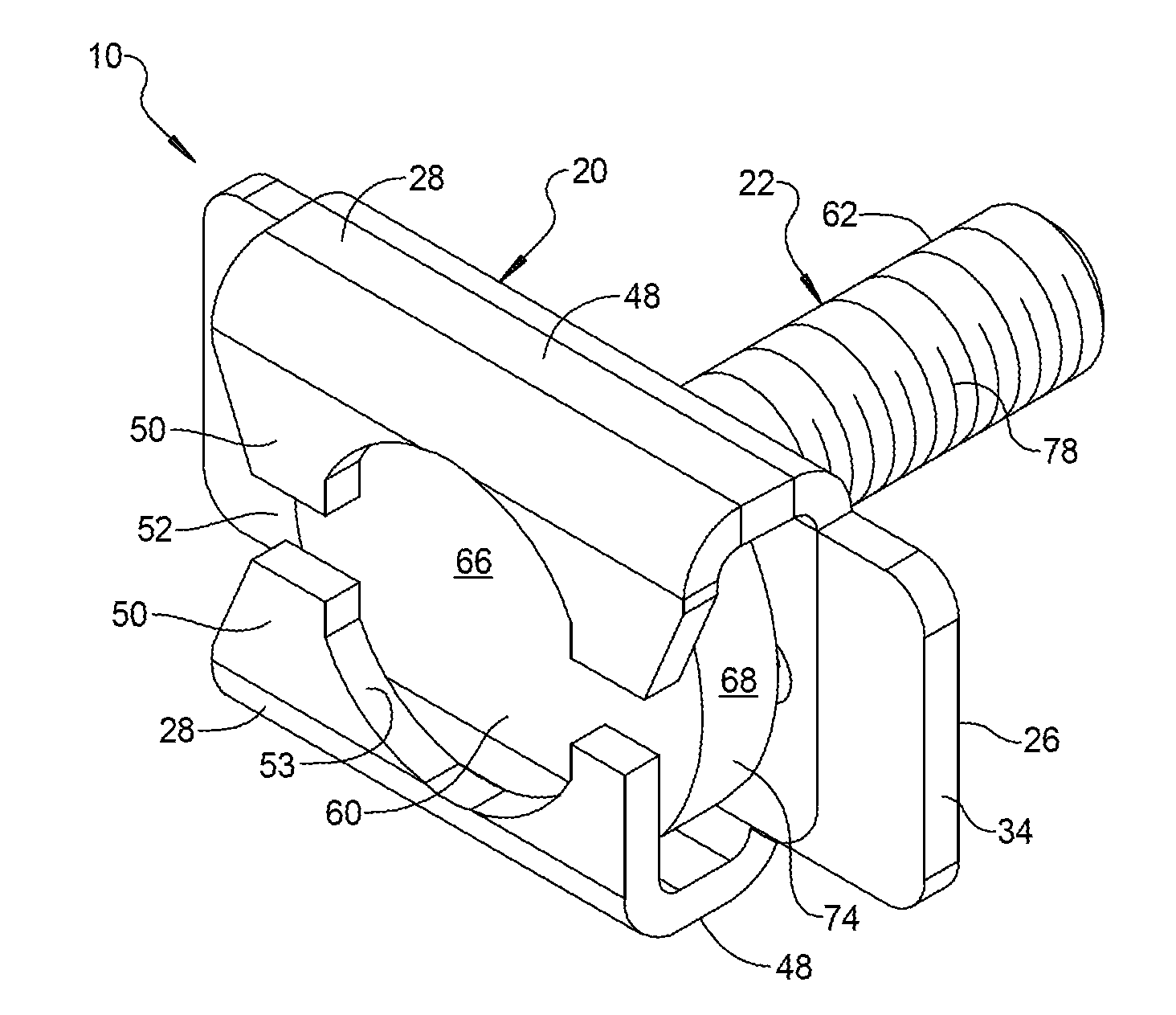

In accordance with a first aspect of the present disclosure, a method of assembling a first automobile component relative to a second automobile component is provided. The method includes providing a cage fastener assembly that includes a cage and a first fastener. The cage includes a cavity, and the first fastener includes a head portion and a threaded shank portion. The head portion is at least partially disposed within the cavity. The threaded shank portion extends from the cavity along a longitudinal axis. The method also includes fixedly coupling the cage to the first automobile component such that the longitudinal axis extends in a substantially horizontal direction during first and second automobile component assembly. The method further includes positioning the threaded shank portion through an aperture of the second automobile component such that a full weight of the second automobile component is supported by the shank.
First Claim
Other Claims data not available
