ENDOLUMINAL FILTER DESIGN VARIATIONS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 30, 2015
filing date -
Jan 4, 2008
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

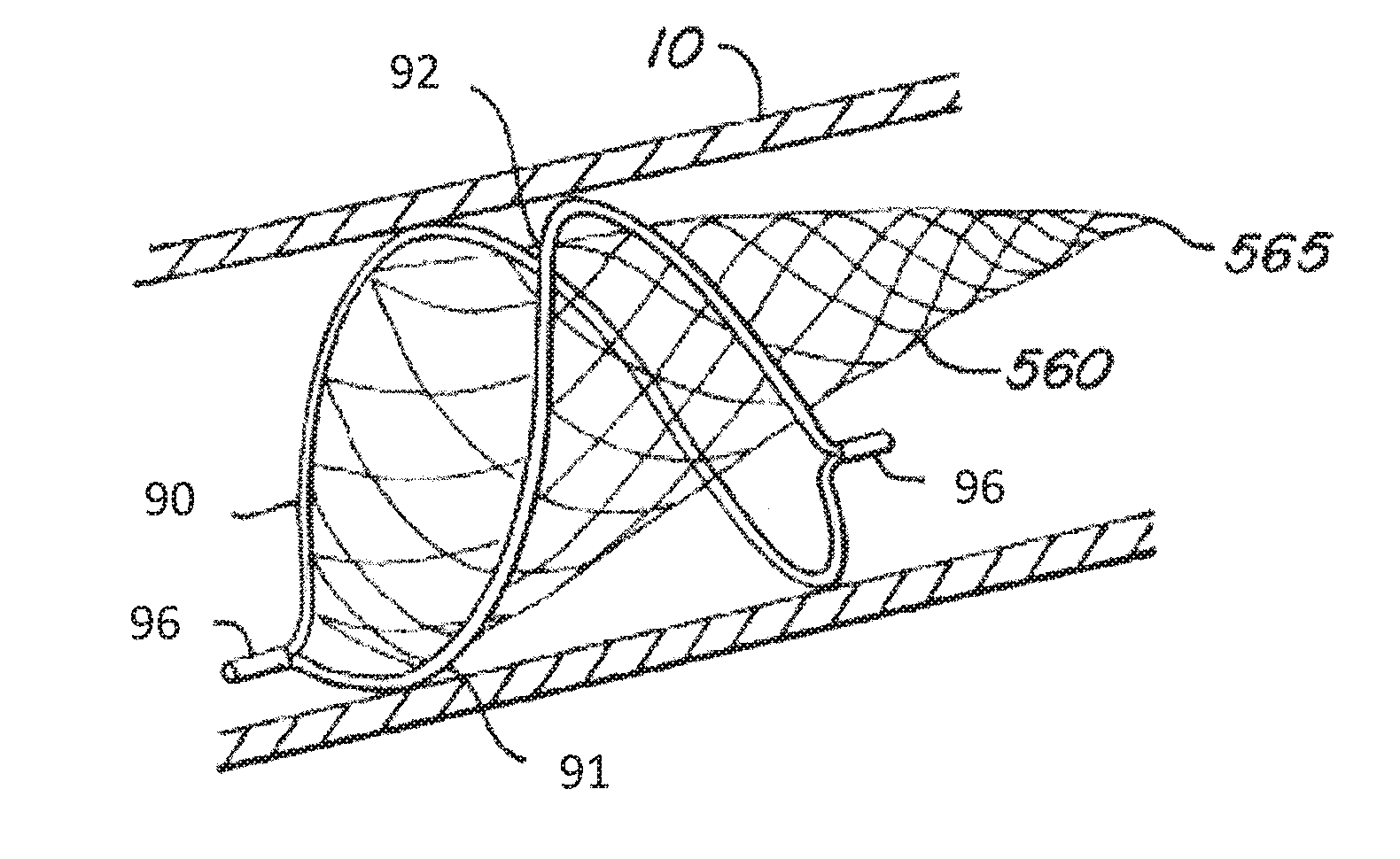

Endoluminal filters are disclosed including a first support member and a second support member forming a crossover with the first support member fixed to the second support member. The endoluminal filters also include a material capture structure extending between the first and second support members, the crossover, and the first end or the second end of the first support member. Endoluminal filters are disclosed in some embodiments that include a support frame forming a first loop and a second loop where the walls of the support frame do not cross over each other. The endoluminal filters also include a material capture structure extending between the first loop or second loop. Methods for making the endoluminal filters are disclosed, such as 3D printing and laser cutting tubular or flat materials. Methods for deploying the endoluminal filters are also disclosed.
First Claim
Other Claims data not available
