Pneumatic distribution system using shared pump plenum
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2018
Grant Date -
Jun 9, 2016
app pub date -
Nov 19, 2015
filing date -
Dec 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

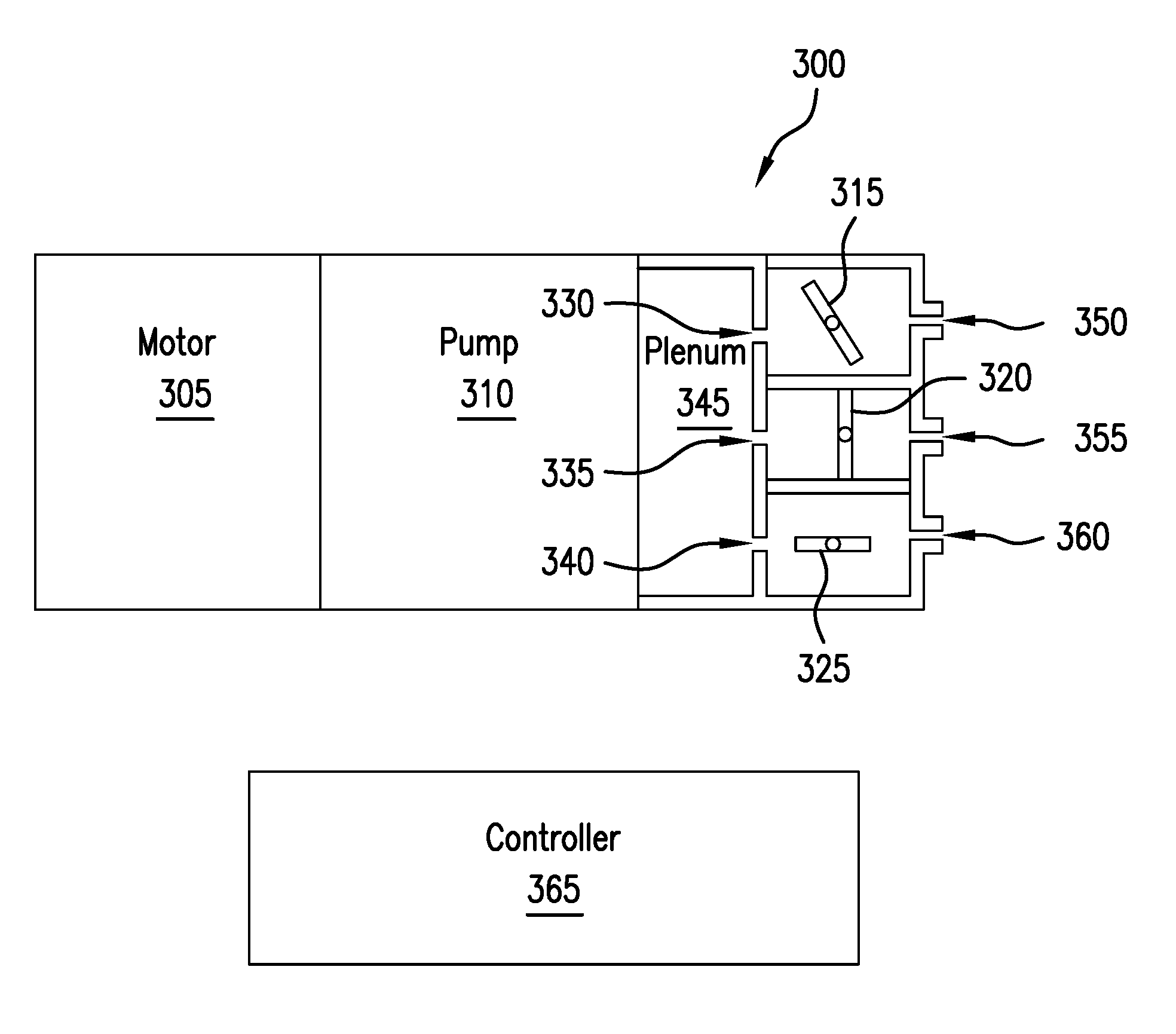

Apparatus and associated methods relate to a pneumatic distribution system having pneumatic pump that exhausts into a common plenum that is in fluid communication with a plurality of flow controllers. In an illustrative embodiment, a system controller may coordinate the operation of the one or more pneumatic pumps and the plurality of flow controllers to provide air pressure control to a system of pneumatic chambers. In some embodiments, one of the plurality of flow controllers may be configured to provide fluid communication with an ambient atmosphere so as to permit a fluid path from a pneumatic chamber connected to another flow controller to the ambient atmosphere via both flow controllers and the common plenum. In an exemplary embodiment, the system controller may advantageously control the air pressures in a plurality of pneumatic chambers independently of one another using coordinated control of the pump and flow controllers.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16K Class
- 1801 Applications Filed
- 1435 Patents Issued To-Date
- 79.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 2, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 2, 2030 |
