FUEL COOLING APPARATUS

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20160160814A1
SERIAL NO

14562013

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

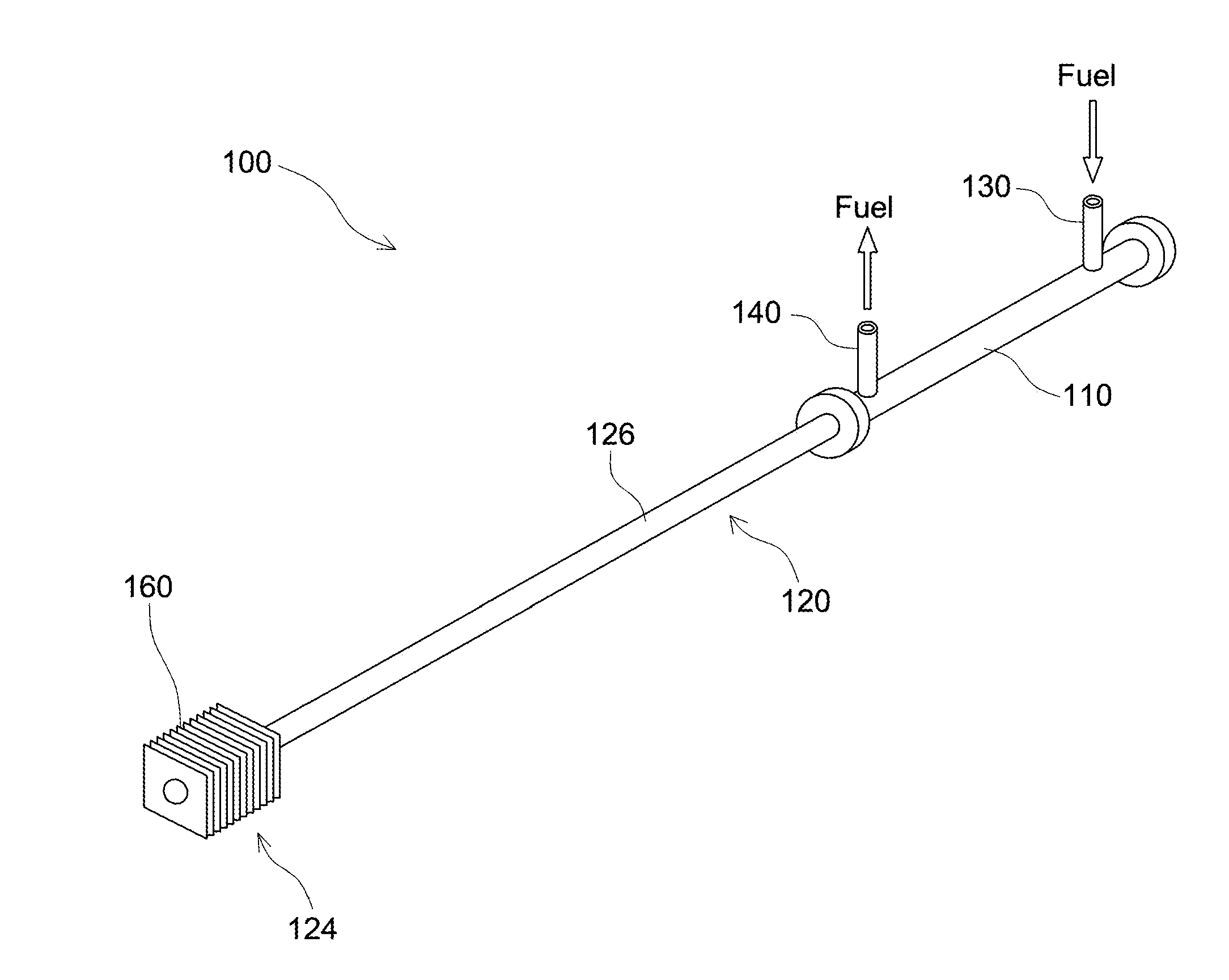

A fuel cooling apparatus includes a fuel cooling pipe having an inner circumferential surface and a hermetically sealed space formed therein and a heat pipe allowing a working medium to flow therein. The heat pipe includes an evaporation region inserted into the hermetically sealed space of the fuel cooling pipe so that a fuel passage is formed between the evaporation region and the inner circumferential surface of the fuel cooling pipe. The evaporation region evaporates the working medium by heat exchange with a fuel flowing through the fuel passage. The heat pipe also includes a condensation region for condensing the working medium evaporated at the evaporation region and an adiabatic region adiabatically connecting the evaporation region and the condensation region to each other. The condensation region is arranged outside of the fuel cooling pipe. The fuel cooling apparatus also has a fuel inlet port configured to introduce the fuel into the fuel passage of the fuel cooling pipe from the fuel pipe and a fuel outlet port configured to return the fuel that has flowed through the fuel passage in the fuel cooling pipe to the fuel pipe.

First Claim

See full text

Other Claims data not available

Family

PCTEP
+
  • No Family data available.

Patent Owner(s)

Patent OwnerAddress
FUJIKURA LTD5-1 KIBA 1-CHOME KOTO-KU TOKYO 135-8512

International Classification(s)

loading....
  • 2014 Application Filing Year
  • F02M Class
  • 1366 Applications Filed
  • 1150 Patents Issued To-Date
  • 84.19 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2014201520162017201820192020202120220255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
SAITO, Yuji Tokyo, JP 222 1790
TAKAHASHI, Makoto Tokyo, JP 401 4129
WU, Xiao Ping Raleigh, US 1 0
