Turbo decoders with stored column indexes for interleaver address generation and out-of-bounds detection and associated methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 23, 2019
Grant Date -
May 26, 2016
app pub date -
Nov 26, 2014
filing date -
Nov 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

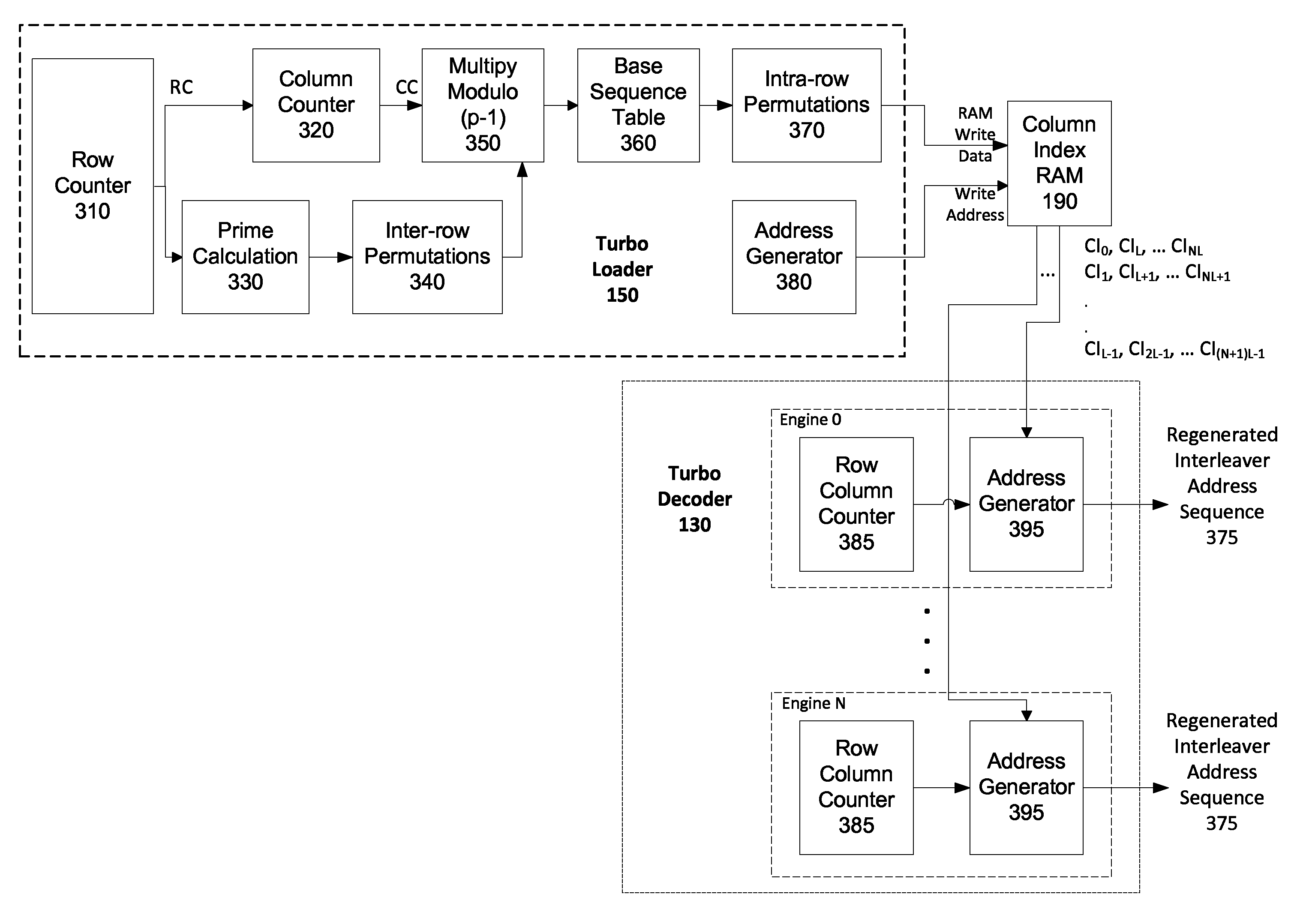

A turbo decoder decodes encoded data using a regenerated interleaver sequence. An addressable column index memory stores column indexes of the encoded data during an input phase of a turbo decode operation. An address generator generates the regenerated interleaver sequence based on the column indexes and computed data. In embodiments the address generator can read column indexes from the addressable column index memory, compute the computed data by permuting row indexes in a same row permuting order as an encoder that encoded the encoded data, combine the column indexes so read and the row indexes so permuted, use a row counter, and identify out of bounds addresses using the regenerated interleaver sequence.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- H03M Class
- 1593 Applications Filed
- 1478 Patents Issued To-Date
- 92.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H03M Class
- 28.58 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 23, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 23, 2030 |
