MICROSTRIP ANTENNA STRUCTURE AND MICROWAVE IMAGING SYSTEM USING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 26, 2016
app pub date -
Dec 9, 2014
filing date -
Nov 25, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

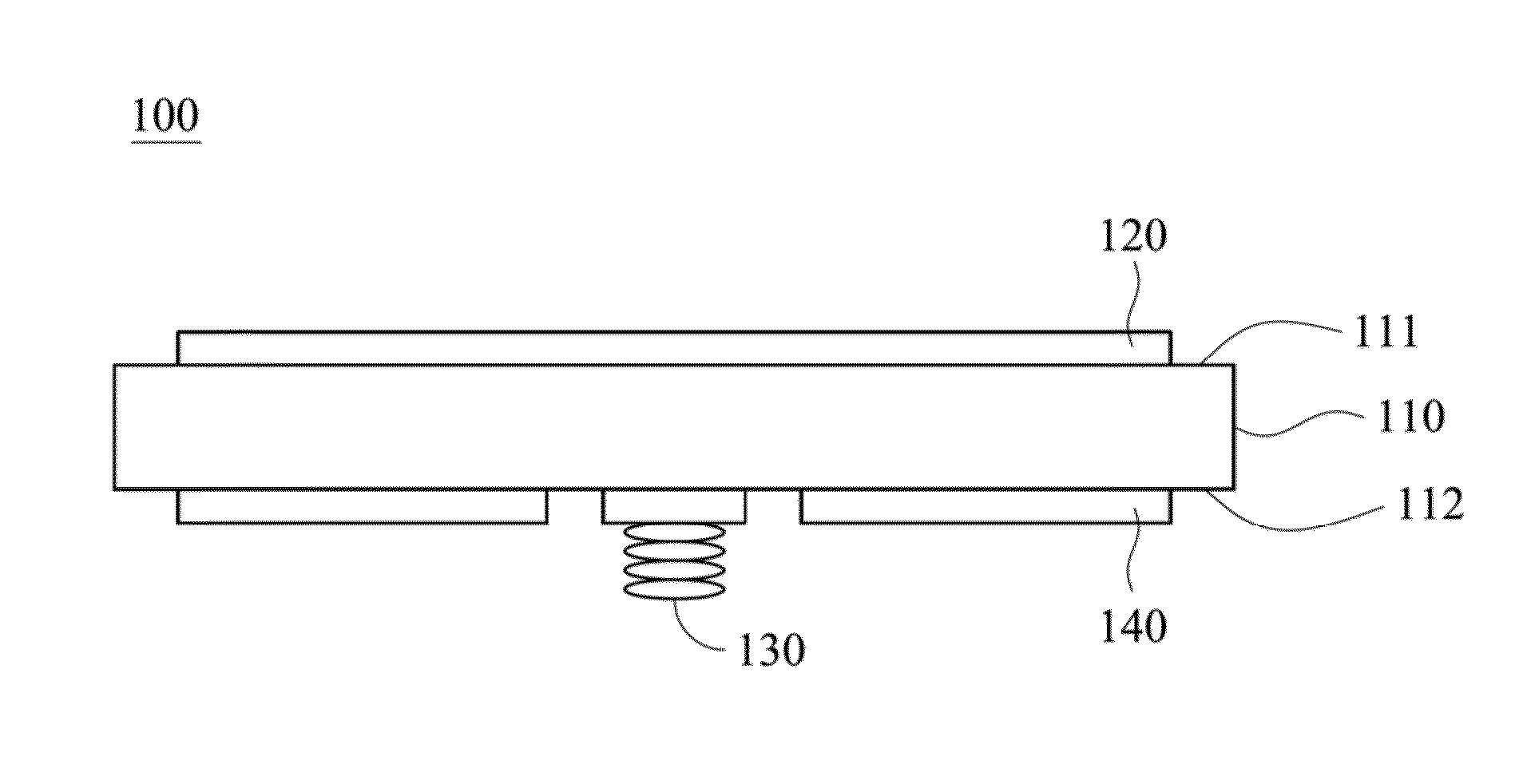

A microstrip antenna structure is provided, which includes a substrate, a ring microstrip line and a signal transmission port. The substrate has opposite first and second surfaces. The ring microstrip line is disposed on the first surface of the substrate. The ring microstrip line has a short coupling gap ranged between 0.004λg and 0.06λg for forming a radiation bandwidth with high selectivity, where λg represents a guided wavelength of an electromagnetic wave in the ring microstrip line corresponding to a center frequency of the radiation bandwidth. The signal transmission port is disposed on the second surface of the substrate. The signal transmission port penetrates through the substrate and is electrically connected to the ring microstrip line.
