Compound Bow with Offset Synchronizer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 25, 2015
filing date -
Nov 26, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

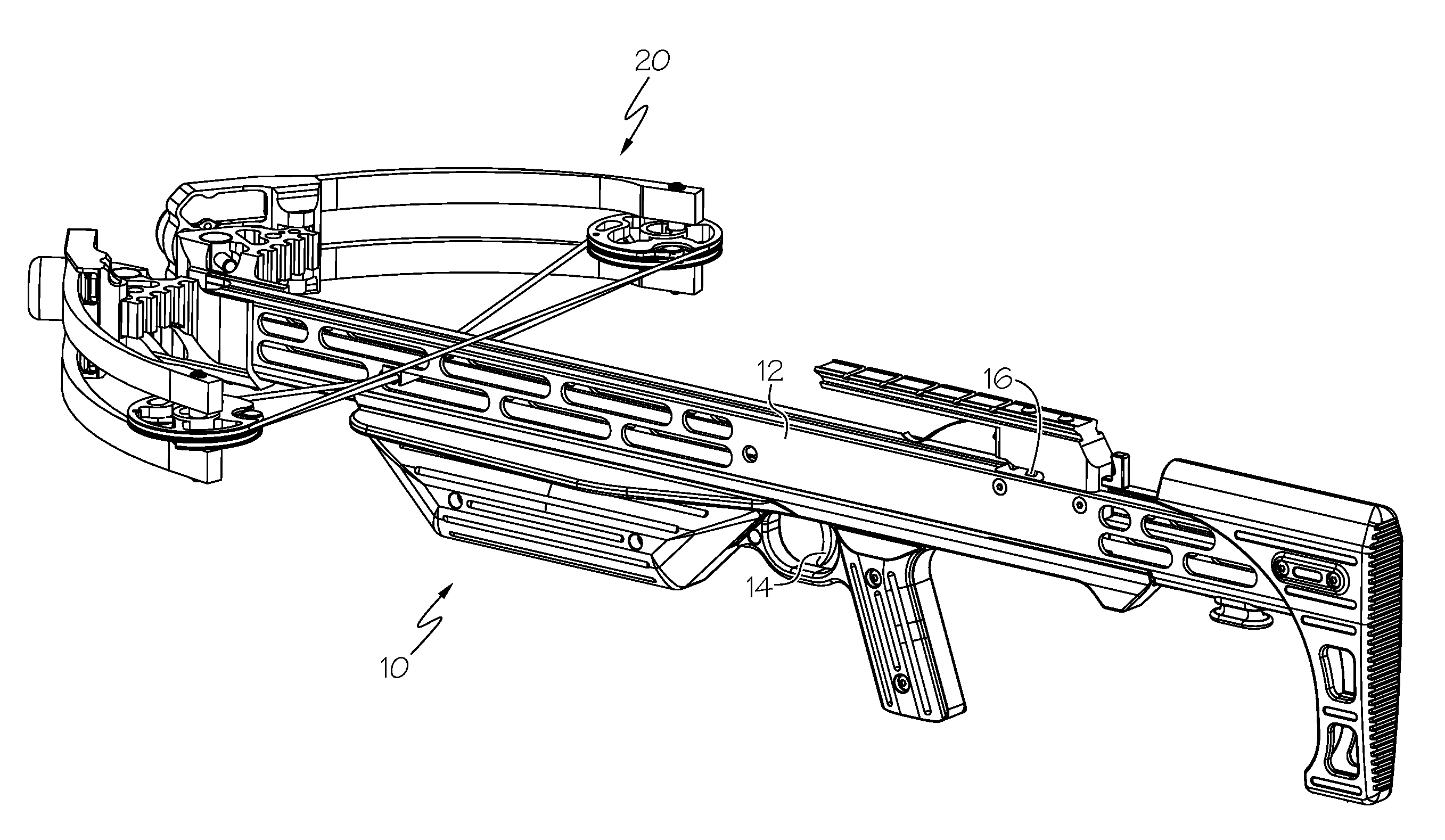

In some embodiments, an archery bow comprises a frame supporting a first limb and a second limb. A first rotatable member is supported by the first limb and arranged to rotate about a first rotation axis. The first rotatable member comprises a cam track. A second rotatable member is supported by the second limb and arranged to rotate about a second rotation axis. The second rotatable member comprises a synchronizer track. A bowstring extends between the first rotatable member and the second rotatable member. A power cable is arranged to be taken up on the cam track and fed out from the synchronizer track as the bow is drawn. The synchronizer track is circular and a centerpoint of the synchronizer is offset from the second rotation axis.
First Claim
Other Claims data not available
