Apparatus for applying a load to an installed wind turbine blade and method of using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jun 18, 2014
filing date -
Jun 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

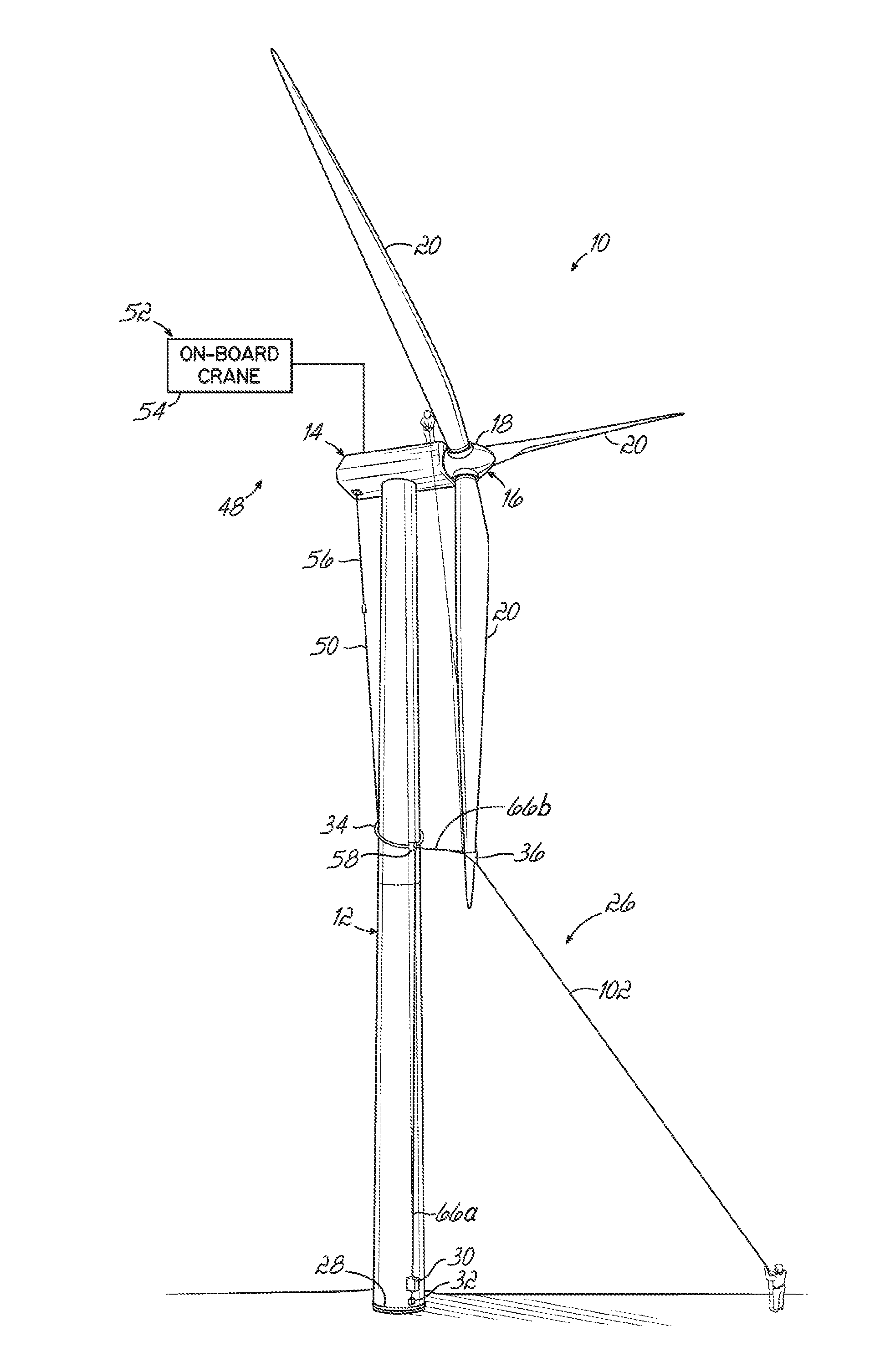

A blade loading system for imposing a force on a wind turbine blade includes a portable load device having a cable, a tower support movably coupled to the tower, and a blade attachment device coupled to the blade and coupled to the cable, wherein when the blade attachment device is coupled to the blade and the tower support is adjacent the blade, the load device induces tension in the cable so that a force is imposed on the blade in a direction toward the tower. A method of applying a force to a blade includes: coupling a tower support to the tower adjacent the base, coupling a cable to the blade attachment device, raising the tower support along the tower, coupling the blade attachment device to the blade, and tensioning the cable to provide a force on the blade in a direction toward the tower.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F03D Class
- 702 Applications Filed
- 580 Patents Issued To-Date
- 82.63 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F03D Class
- 13.22 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
