Method and apparatus for feeding in and handling waste material

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10773886
APP PUB NO 20160145042A1
SERIAL NO

14904613

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

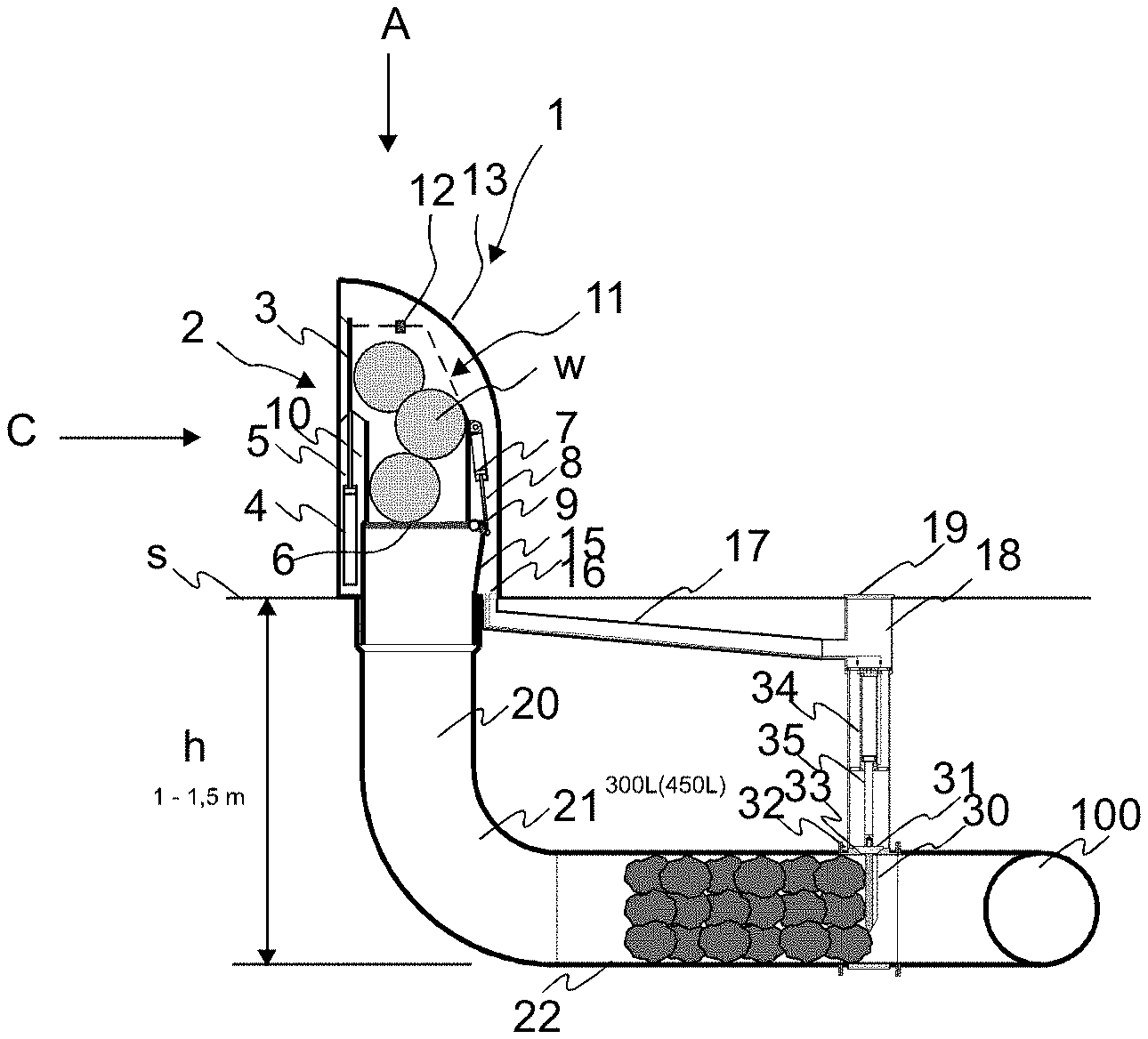

Method for feeding in and for handling waste material in the channel section of a pneumatic wastes conveying system, in which method waste material or recycleable material is fed into a feed-in container from the input aperture of an input point of a pneumatic pipe transport system for material and onwards into the channel section between the feed-in container and the material conveying pipe, from where the material is conveyed along with the transporting air via the material conveying pipe to the delivery end of the pneumatic material conveying system, where the material is separated from the transporting air. In the method the material is acted upon by the combined effect of suction and replacement air in the channel section by bringing about compression in size in at least a part of the material being conveyed, by means of an impediment arranged between the conveying pipe and the material to be handled, or against the impediment, before transportation of the material to the delivery end of the pneumatic transport system for wastes.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
MARICAP OY01450 VANTAA

International Classification(s)

loading....
  • 2014 Application Filing Year
  • B65G Class
  • 1383 Applications Filed
  • 1168 Patents Issued To-Date
  • 84.46 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20142015201620172018201920202021202220230255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Sundholm, Göran Tuusula, FI 108 392

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • B65G Class
  • 0 % this patent is cited more than
  • 5 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges48642392101 - 1011 - 2021 - 3031 - 400255075100125150175200225250275300325350375400425450475500525

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Mar 15, 2028
11.5 Year Payment $7400.00 $3700.00 $1850.00 Mar 15, 2032
