Internal splitting method of cross-section of end of metal plate or metal rod, manufacturing method of metal container and metal pipe by the internal splitting method and joining method of metal components
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
May 26, 2016
app pub date -
Jul 22, 2014
filing date -
Jul 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

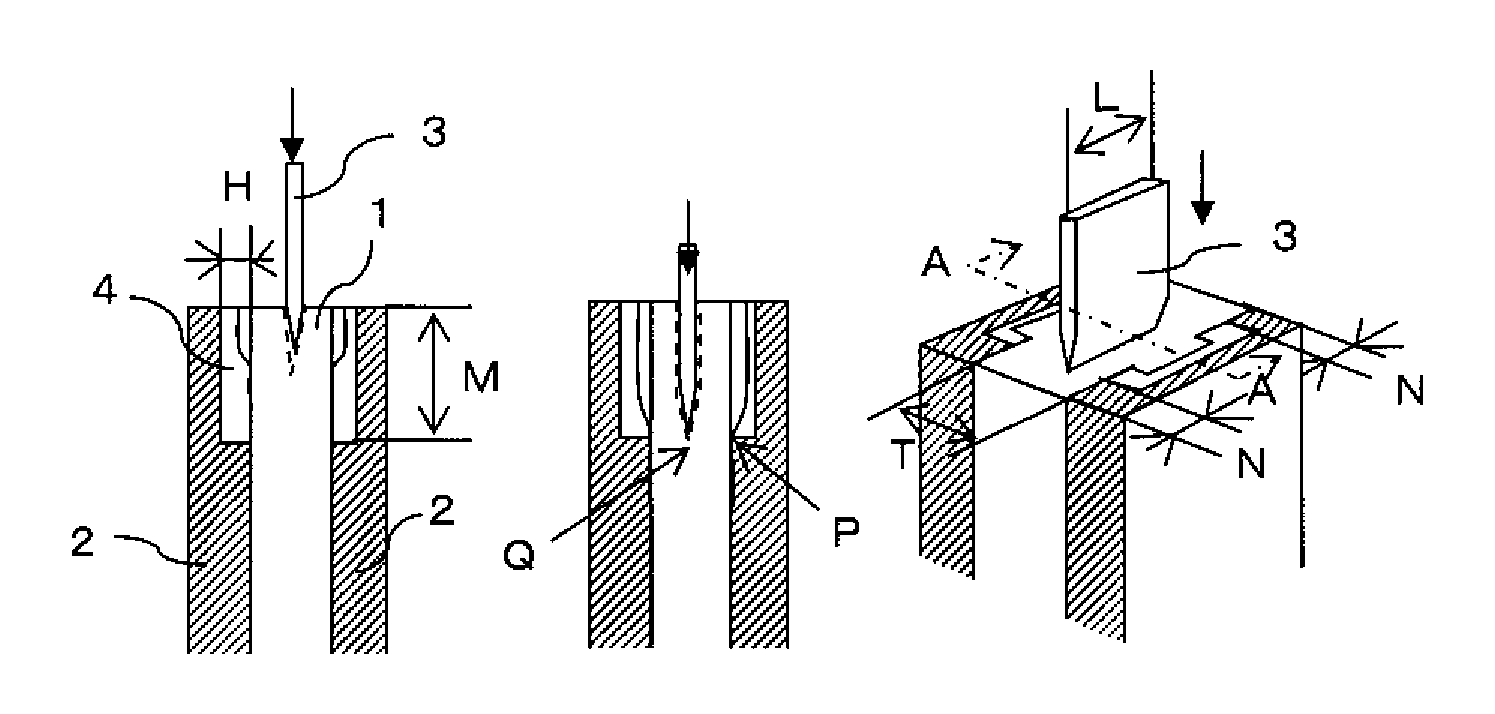

Provided is a method for internal splitting in the cross-section of the end of a metal plate or a metal rod. The method permits free-adjustment of the width and length of incision of the internal split and gives smooth and even surfaces to the cut face of the internal split for an accurate internal splitting in the cross-section of the end of a metal plate or a metal rod only at the desired position. The invention also provides a method for manufacturing a metal container and a metal pipe by that splitting method and a method for joining metal components. The present invention includes the steps of: a process to form a crevice by abutting a splitting punch or a cleaving punch on the cross-section of the end of the metal plate or the metal rod using a means for determining the width of the internal split; and a process to advance the internal splitting further by repeating the press-splitting on the crevice multiple times using a splitting punch or a cleaving punch. The invented method uses a clamping die, at least one side of which has an opening and a clamping margin to pinch both sides of the metal plate or two opposed positions on the circumference of the metal rod. Every time of each operation step, the clamping die is positioned in advance in accordance with the position of the tip of the intended internal split.
