ATOMIZING APPARATUSES, SYSTEMS, AND METHODS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 26, 2016
app pub date -
Nov 24, 2014
filing date -
Nov 24, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

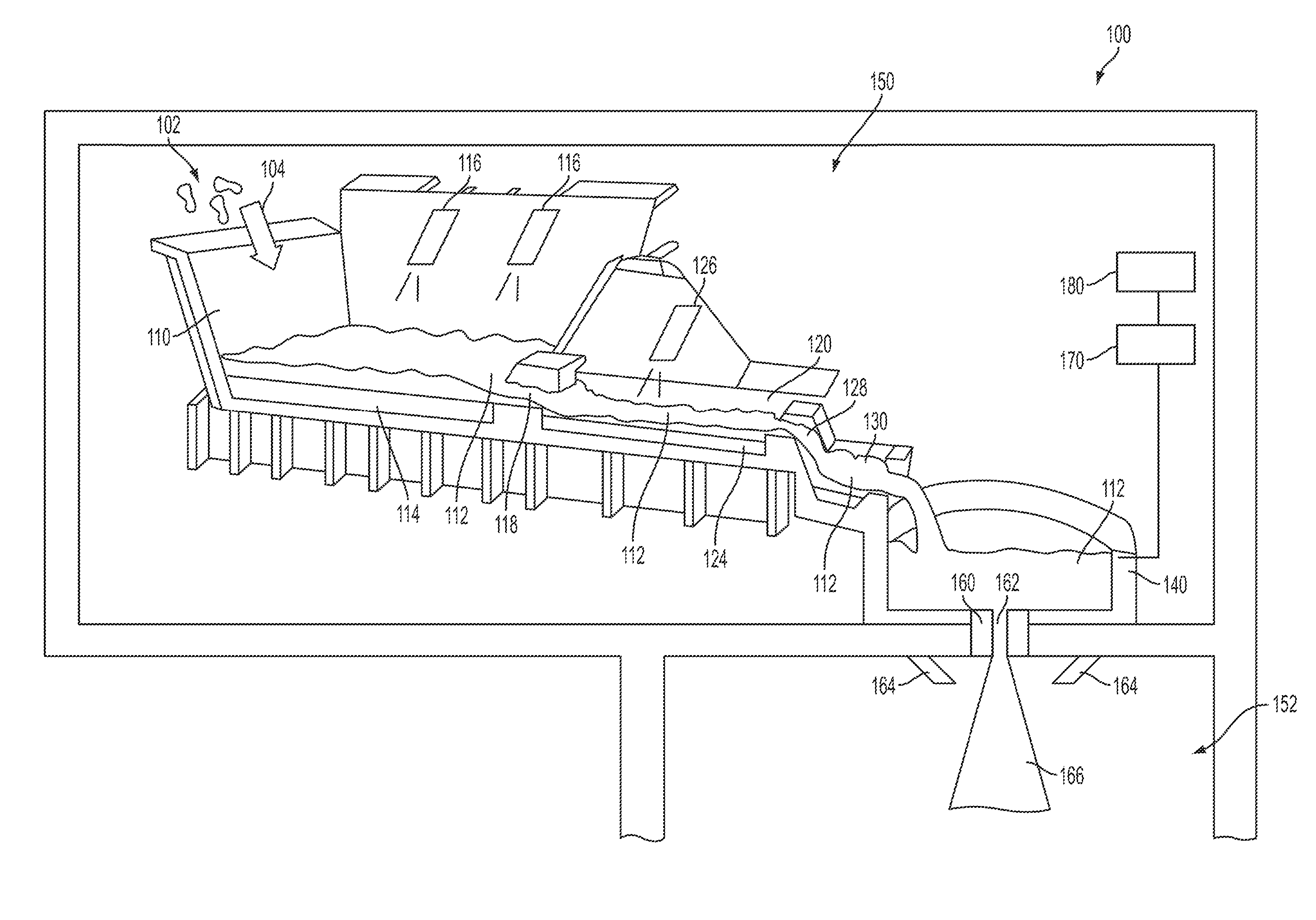

An atomizing system and method are disclosed. A system can include a tundish configured to hold a molten material and a nozzle in fluid communication with the tundish. The nozzle and/or the tundish can be comprised of a material having a composition that is substantially similar to the composition of the molten material. An internal channel can be defined in at least one of the tundish or the nozzle. Additionally, a pump can be configured to pump a molten heat transfer medium through the internal channel. A method of atomizing the molten material can include affecting heat transfer between the molten material and the tundish and/or the nozzle with a molten heat transfer medium in at least one internal channel in the tundish and/or the nozzle. The tundish and/or the nozzle can comprise a material that is substantially similar to the molten material.
First Claim
Other Claims data not available
