Implantable Stimulator Device Having Charge Measuring Circuitry Useable in Conjunction with DC-Blocking Capacitors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 26, 2016
app pub date -
Oct 9, 2015
filing date -
Oct 9, 2015
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

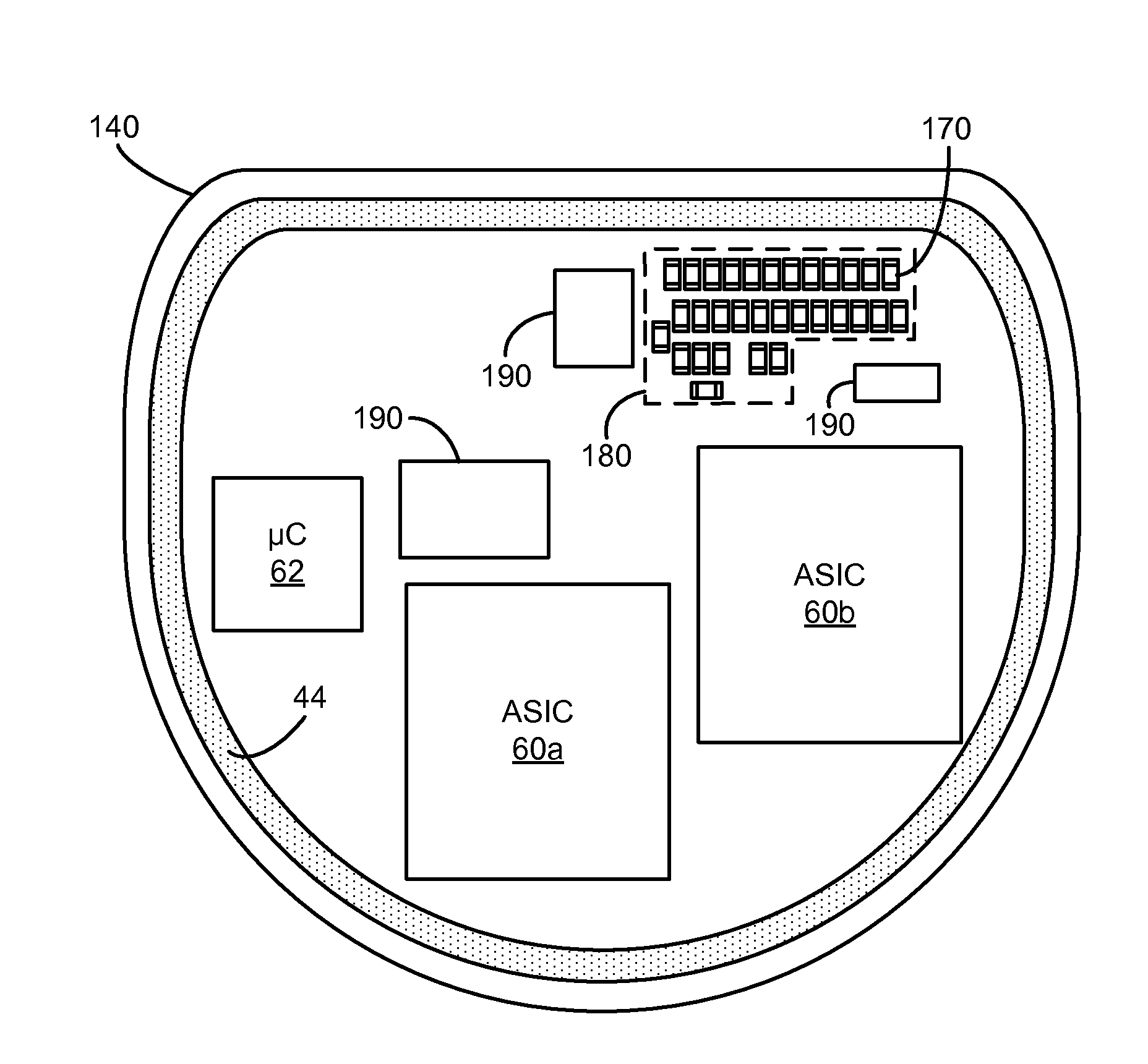

Improved circuitry for an Implantable Pulse Generator (IPG) is disclosed that allows much smaller-value DC-blocking capacitors to be used with supported electrodes—with capacitance values orders of magnitude smaller than those used in traditional IPGs. Such improved circuitry operates by alternating the direction of the current through the DC-blocking capacitor during the provision of a therapeutic current pulse. Such smaller-value DC-blocking capacitors do not take up significant space in the IPG, or surface area on the IPG's PCB. Additionally, the improved circuitry includes the ability to measure the current amplitude provided to selected electrodes—for example, to ensure that the sources are actually providing a prescribed current amplitude to the patient's tissue—and to provide for perfect active charge recovery.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- A61N Class
- 10.45 % this patent is cited more than
- 9 Age
