LIQUID DISPENSER AND DISCHARGE HEAD FOR SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 19, 2016
app pub date -
Oct 19, 2015
filing date -
Nov 18, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

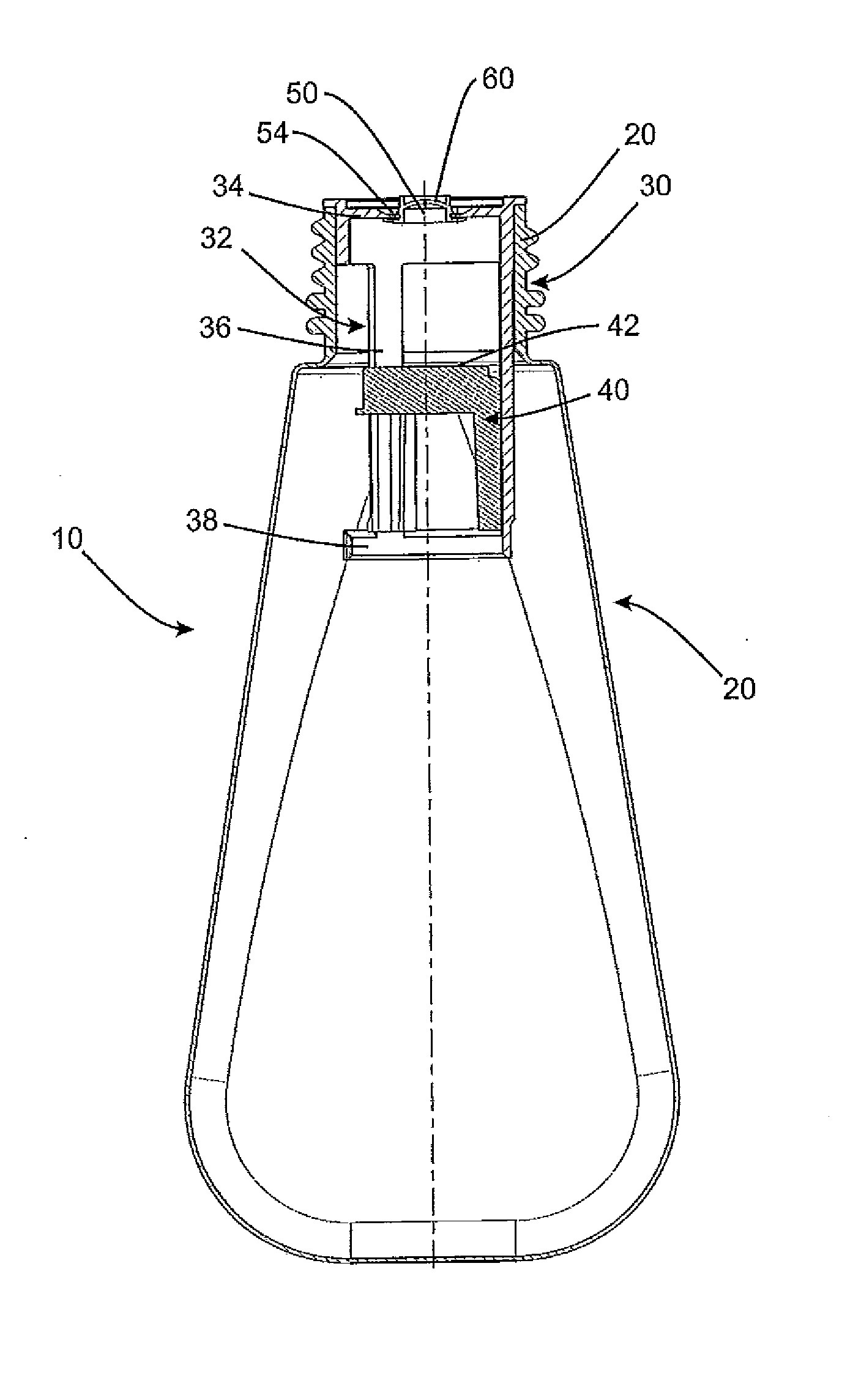

A metering head for a liquid dispenser with a discharge opening for dispensing liquid from an interior of the metering head into an environment, a metering body and a metering channel within which the metering body is arranged movably between a closed position and an open position. The metering body is designed as a float and is adapted to the metering channel such that, during the movement in the direction of the closed position, liquid flowing to the discharge opening flows around it at least in phases. The metering body is adapted to the discharge opening such that, in its closed position, it closes the discharge opening off from the metering channel. The metering head also includes a ventilation channel separate from the discharge opening and having an inlet valve that opens when there is an underpressure in the metering channel in relation to the environment.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01F Class
- 14.40 % this patent is cited more than
- 9 Age
