Recoil starter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Nov 18, 2015
filing date -
Nov 19, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

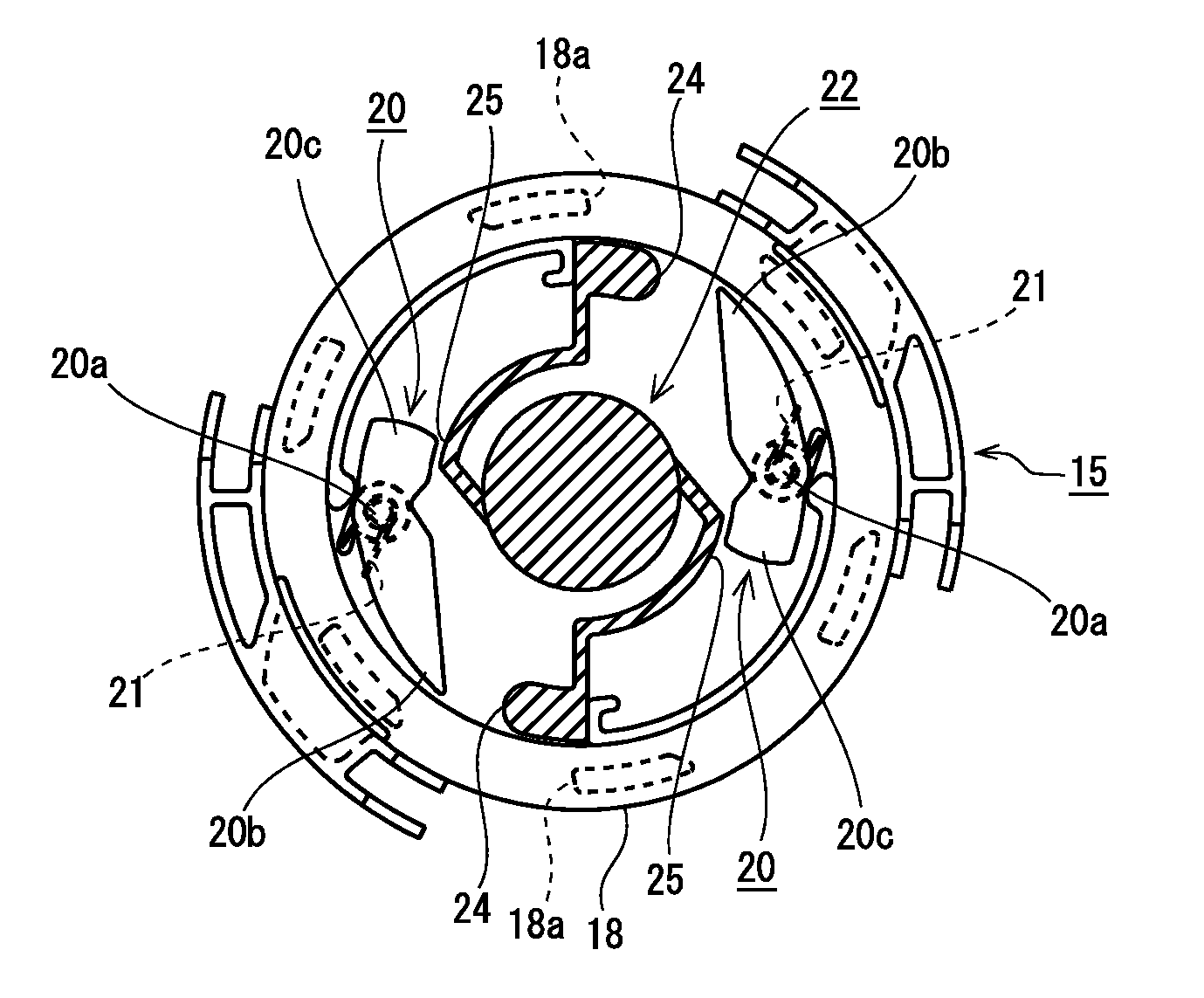

One aspect of the invention provides a recoil starter including: a reel support shaft; a rope reel that is rotatably mounted on the reel support shaft; a ratchet member that is swingably mounted on the rope reel; a ratchet guide that is rotatably mounted on the reel support shaft with friction resistance. The ratchet guide includes: a guide portion and a swinging-prevention portion. When the rope reel rotates in an engine starting direction, the guide portion pushes out the ratchet member to an outer diameter direction. When the ratchet member does not contact the guide portion, the swinging-prevention portion prevents the ratchet member from swinging to the outer diameter direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F02N Class
- 284 Applications Filed
- 234 Patents Issued To-Date
- 82.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
