MULTI-LOCKING UTILITY CUTTER

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20160136825A1
SERIAL NO

14540808

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

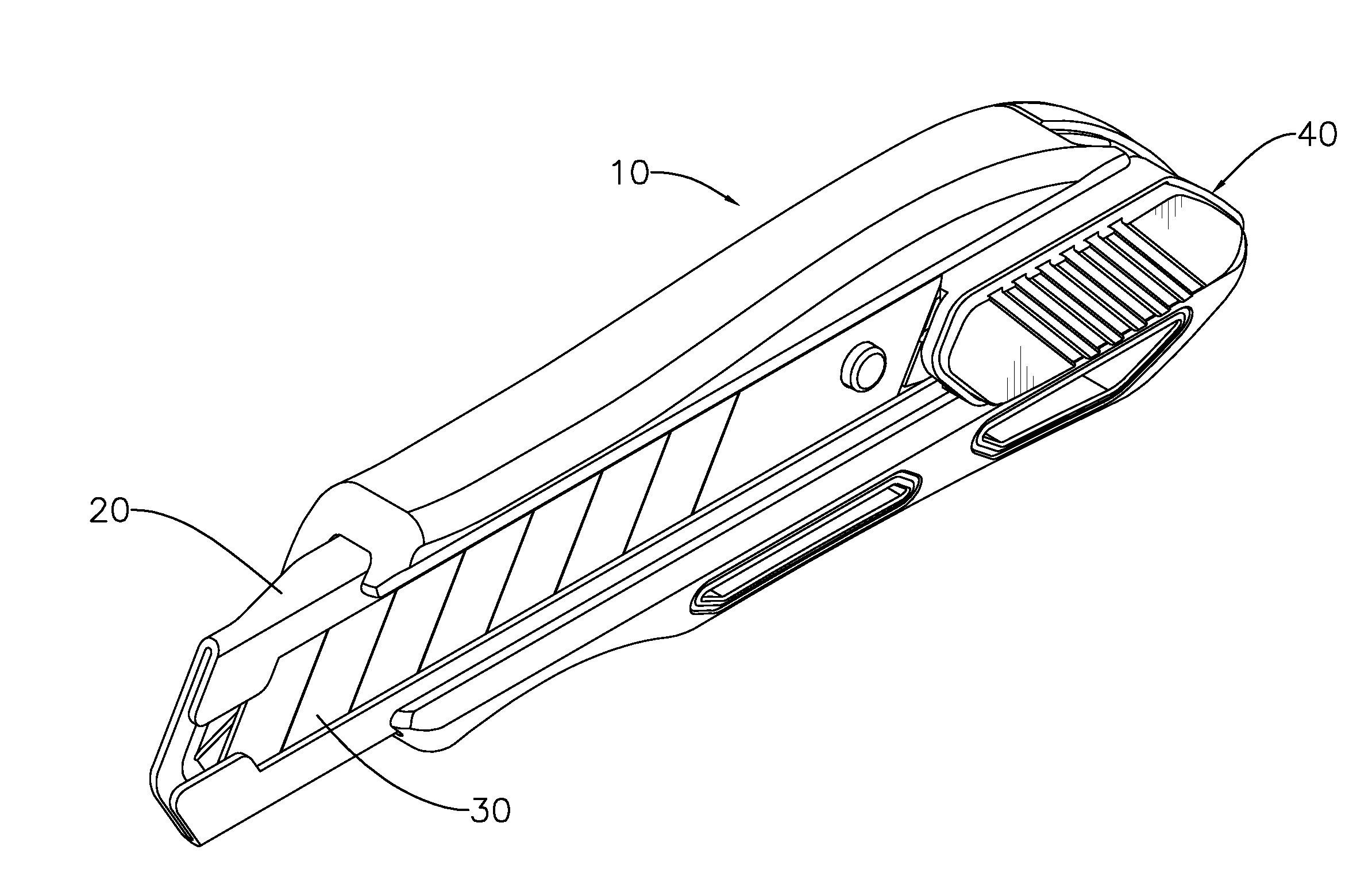

A multi-locking utility cutter has a shank, a blade and a slider. The shank has a guiding groove having multiple first locking units. The blade is slidably mounted in the shank and selectively covers the first locking units. The slider is connected with the blade and has a second locking unit. When no external force is applied on the slider, the first locking unit and the second locking unit are engaged with each other to provide a locking effect to the blade. When the slider is forced, the second locking unit is disengaged from the first locking unit, such that the blade can slide. A locking position between the first locking unit and the second locking unit is located at the guiding groove of the shank, such that a locking force can be uniformly distributed on the guiding groove of the shank. Therefore, the guiding groove can be forced uniformly and the locking effect can be increased and improved. Further, the first locking units are covered and avoid exposure to the exterior environment to prevent damage.

First Claim

See full text

Other Claims data not available

Family

PCTEP
+
−
  • No Family data available.

Patent Owner(s)

Patent OwnerAddress
SDI CORPORATIONNO 260 SEC 2 CHANG NAN RD CHANG HUA R O C

International Classification(s)

loading....
  • 2014 Application Filing Year
  • B26B Class
  • 250 Applications Filed
  • 219 Patents Issued To-Date
  • 87.60 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2014201520162017201820192020202120220255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
HSU, Chih-Wei CHANG HUA, TW 371 3899

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 2 Citation Count
  • B26B Class
  • 14.34 % this patent is cited more than
  • 9 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges411944071301 - 1011 - 2021 - 3031 - 4041 - 500102030405060708090100110120130140150160170180190200210

Forward Cite Landscape

Load Citation
