THERMOELECTRIC GENERATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 12, 2016
app pub date -
Jun 11, 2014
filing date -
Jun 11, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

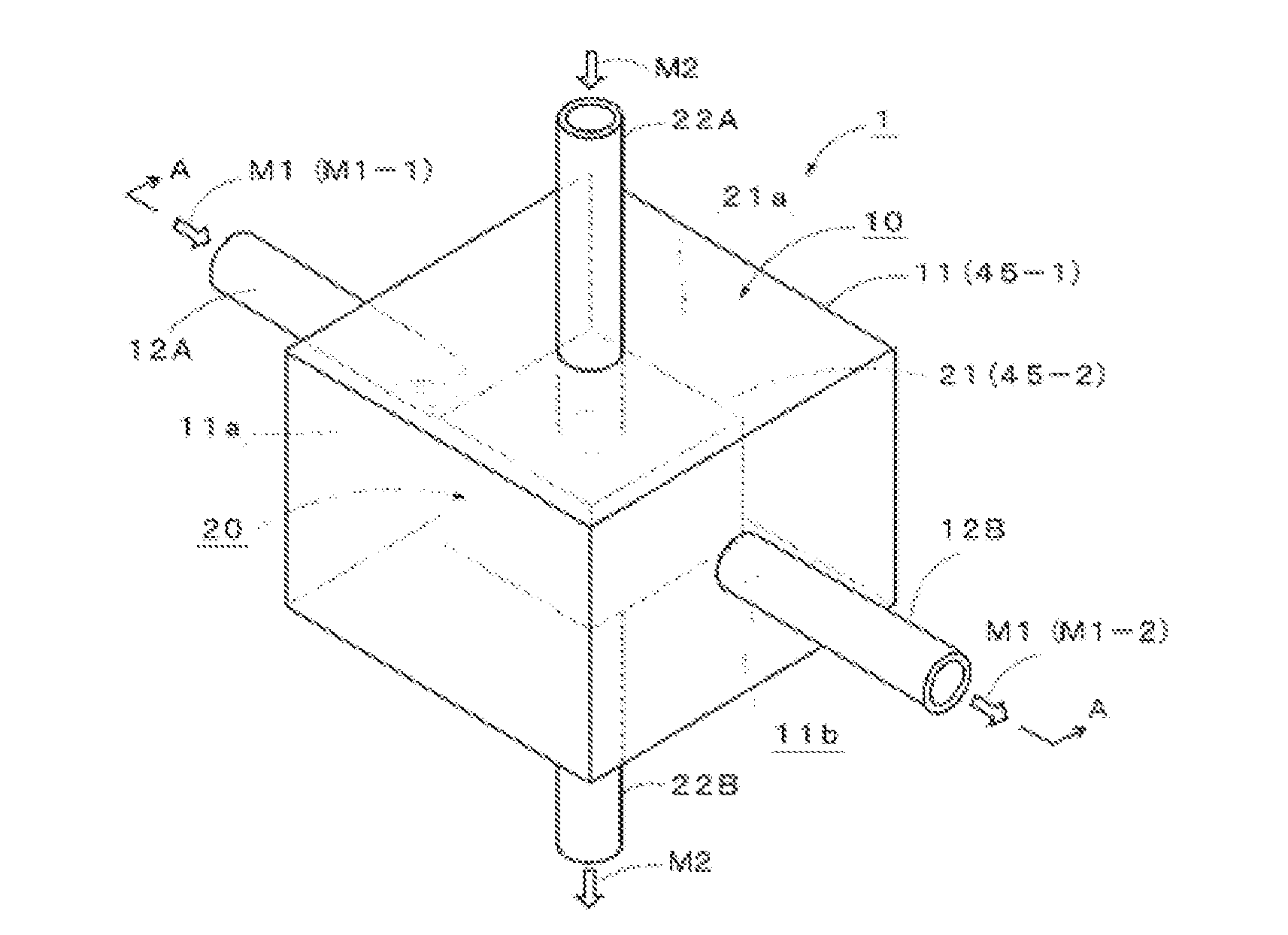

A thermoelectric generator is provided that can perform thermoelectric generation efficiently. This generator includes: a first heat medium chamber into which a first heat medium flows and out of which the first heat medium flows; a first chamber wall which defines the first heat medium chamber; a second heat medium chamber into which a second heat medium flows and out of which the second heat medium flows; a second chamber wall which defines the second heat medium chamber; and thermoelectric generation layers. The two second heat medium chambers are within the first heat medium chamber. Both the second heat medium chambers are separated from each other and are arranged parallel to each other. The first chamber wall and the second chamber wall are not in contact with each other, and the temperature of the first heat medium and the temperature of the second heat medium are different from each other. The thermoelectric generation layers are provided on the outer surface of the first chamber wall and the outer surface of the second chamber wall.
First Claim
Other Claims data not available
