INTEGRATED DIODE ASSEMBLIES FOR PHOTOVOLTAIC MODULES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 15, 2015
filing date -
Nov 4, 2008
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

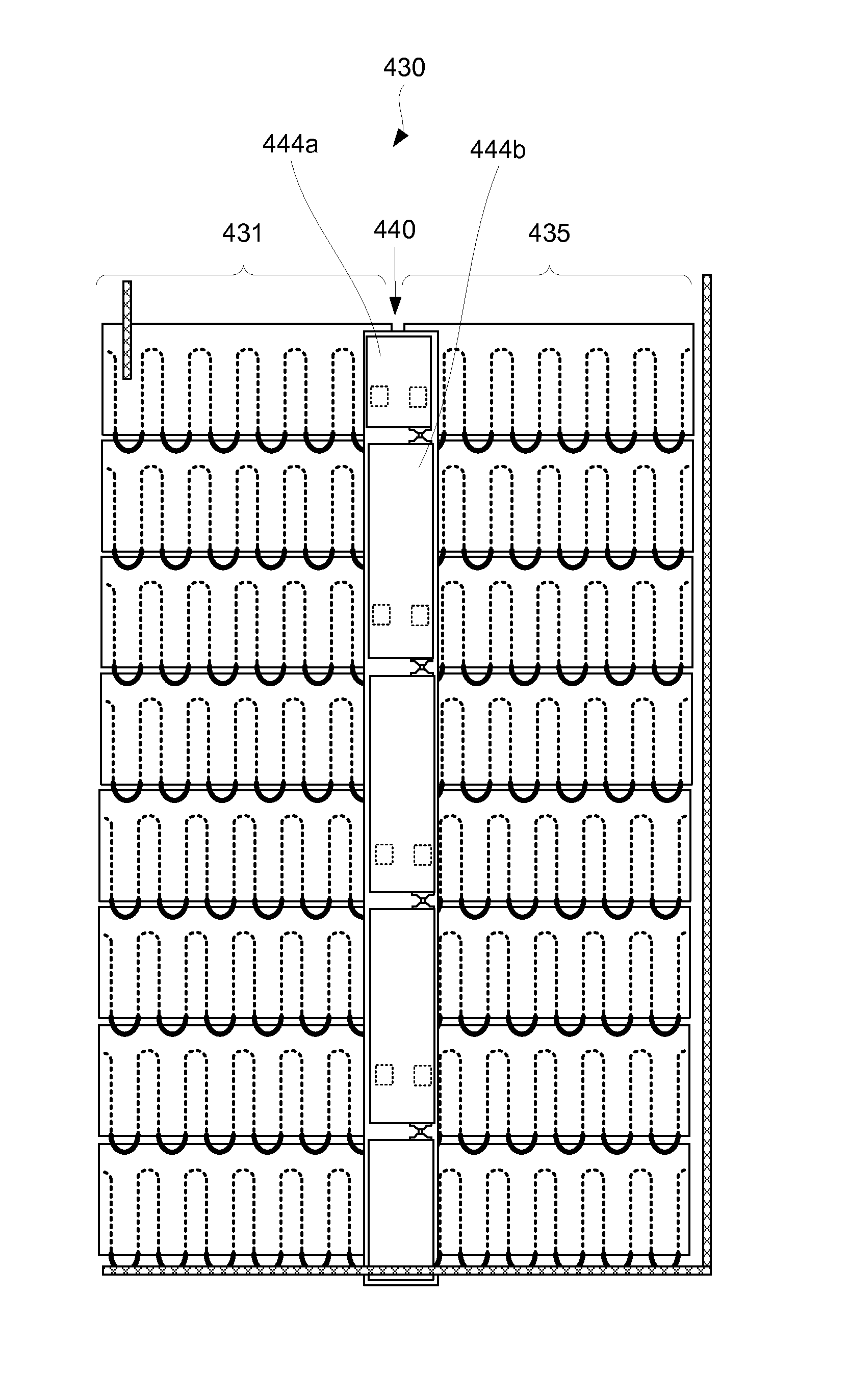

Provided are bypass diode assemblies for use in photovoltaic modules. Also provided are methods of fabricating such assemblies and a method of fabricating photovoltaic modules using such assemblies. A diode assembly may include an insulating strip, at least one lead-diode assembly having a diode and two leads, and at least two interconnecting conductors overlapping with and electrically contacting the leads of the lead-diode assembly. The insulating strip supports the lead-diode assembly and conductors and at least partially insulates these components from photovoltaic cells. Specifically, during module fabrication, the interconnecting conductors make electrical connections to the back sides of the cells through cutouts in the insulating strip. The electrical connections may be made to every cell in a row or a subset of selected cells in that row. In certain embodiments, the same interconnecting conductor is connected to two or more cells positioned in adjacent rows.
First Claim
Other Claims data not available
