Substrate processing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Jan 5, 2016
filing date -
Mar 11, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

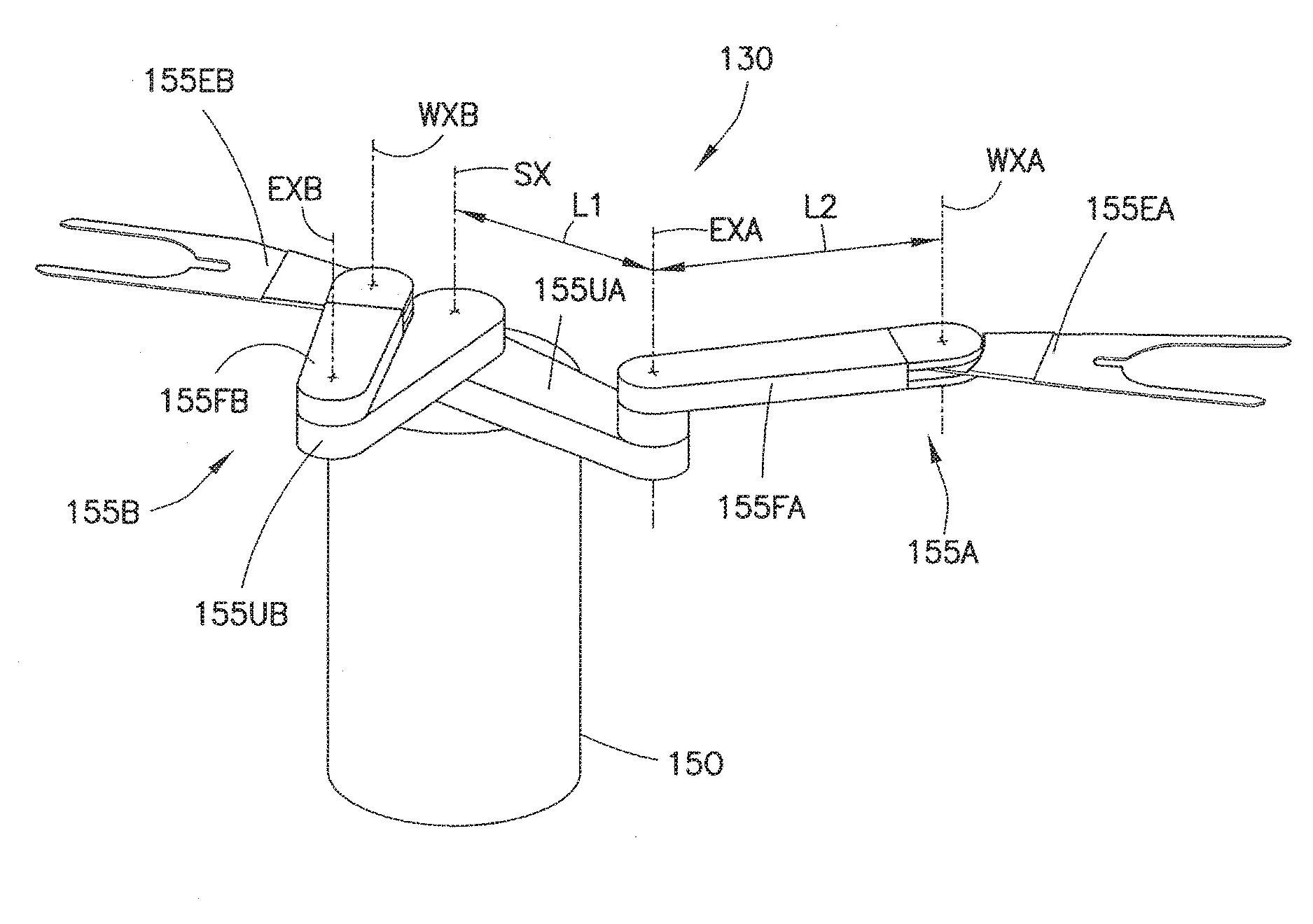

A substrate processing apparatus including a frame, a first SCARA arm connected to the frame, including an end effector, configured to extend and retract along a first radial axis; a second SCARA arm connected to the frame, including an end effector, configured to extend and retract along a second radial axis, the SCARA arms having a common shoulder axis of rotation; and a drive section coupled to the SCARA arms is configured to independently extend each SCARA arm along a respective radial axis and rotate each SCARA arm about the common shoulder axis of rotation where the first radial axis is angled relative to the second radial axis and the end effector of a respective arm is aligned with a respective radial axis, wherein each end effector is configured to hold at least one substrate and the end effectors are located on a common transfer plane.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01L Class
- 18.50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
