SHIFT REGISTER UNIT, SHIFT REGISTER, GATE DRIVE CIRCUIT AND DISPLAY DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 12, 2016
app pub date -
Jul 17, 2015
filing date -
Jul 17, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

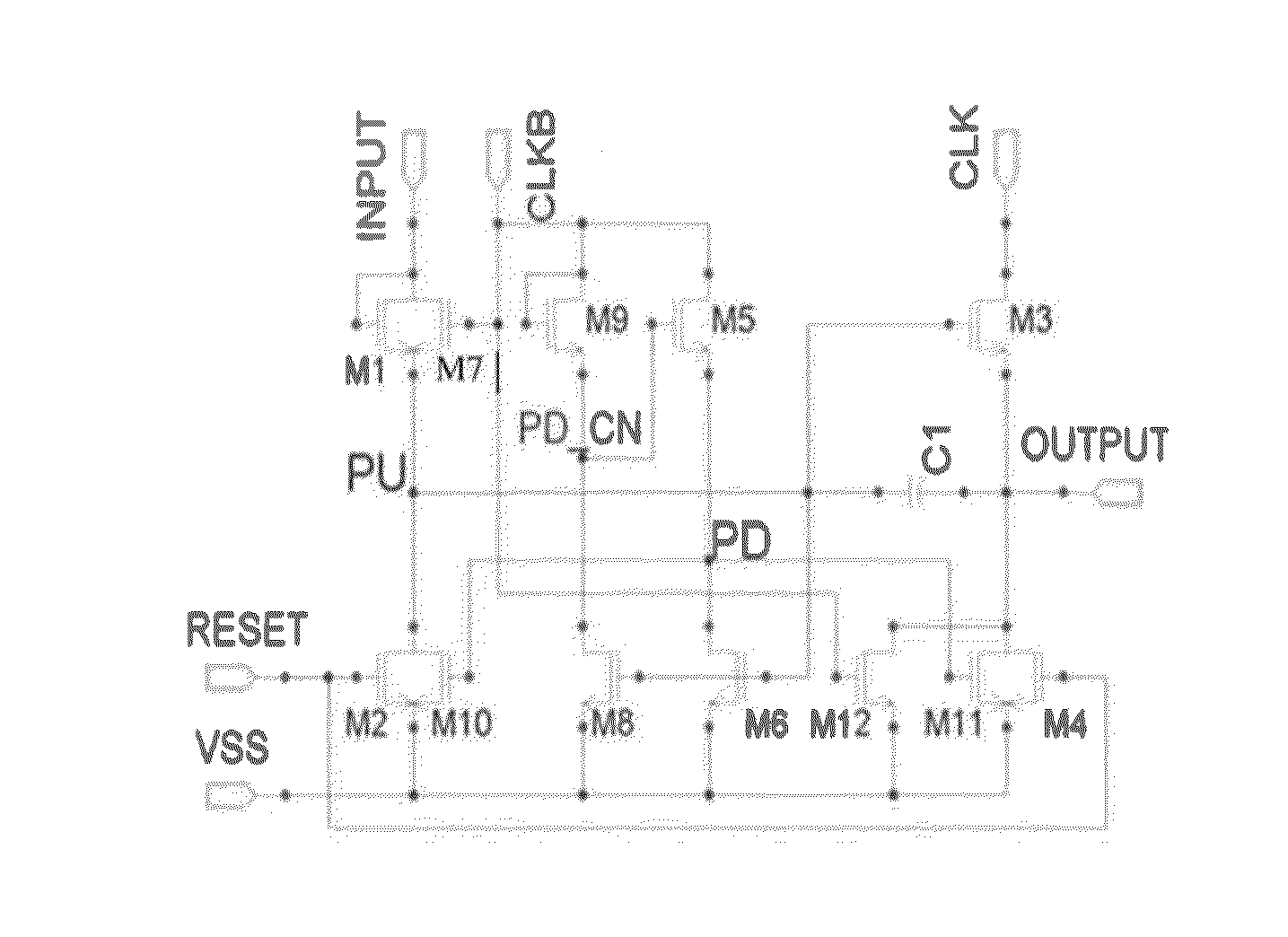

A shift register unit, a shift register, a gate drive circuit and a display device, the shift register unit, comprising: an input module; an output module configured to output a first clock signal of a first clock signal terminal to an output terminal of the shift register unit according to a potential of the pull-up node at an output phase; a reset module configured to pull down the potentials of the pull-up node and the output terminal of the shift register unit according to a reset signal at a reset phase; and a pull-down module configured to pull down the potentials of the pull-up node and the output terminal according to a second clock signal of a second clock signal terminal at a pull-down phase. Compared to the related art, the structure of the shift register unit provided by the present disclosure is simpler.
