METHOD FOR FABRICATING PERIPHERAL WIRING UNIT OF TOUCH PANEL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 14, 2016
filing date -
May 4, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

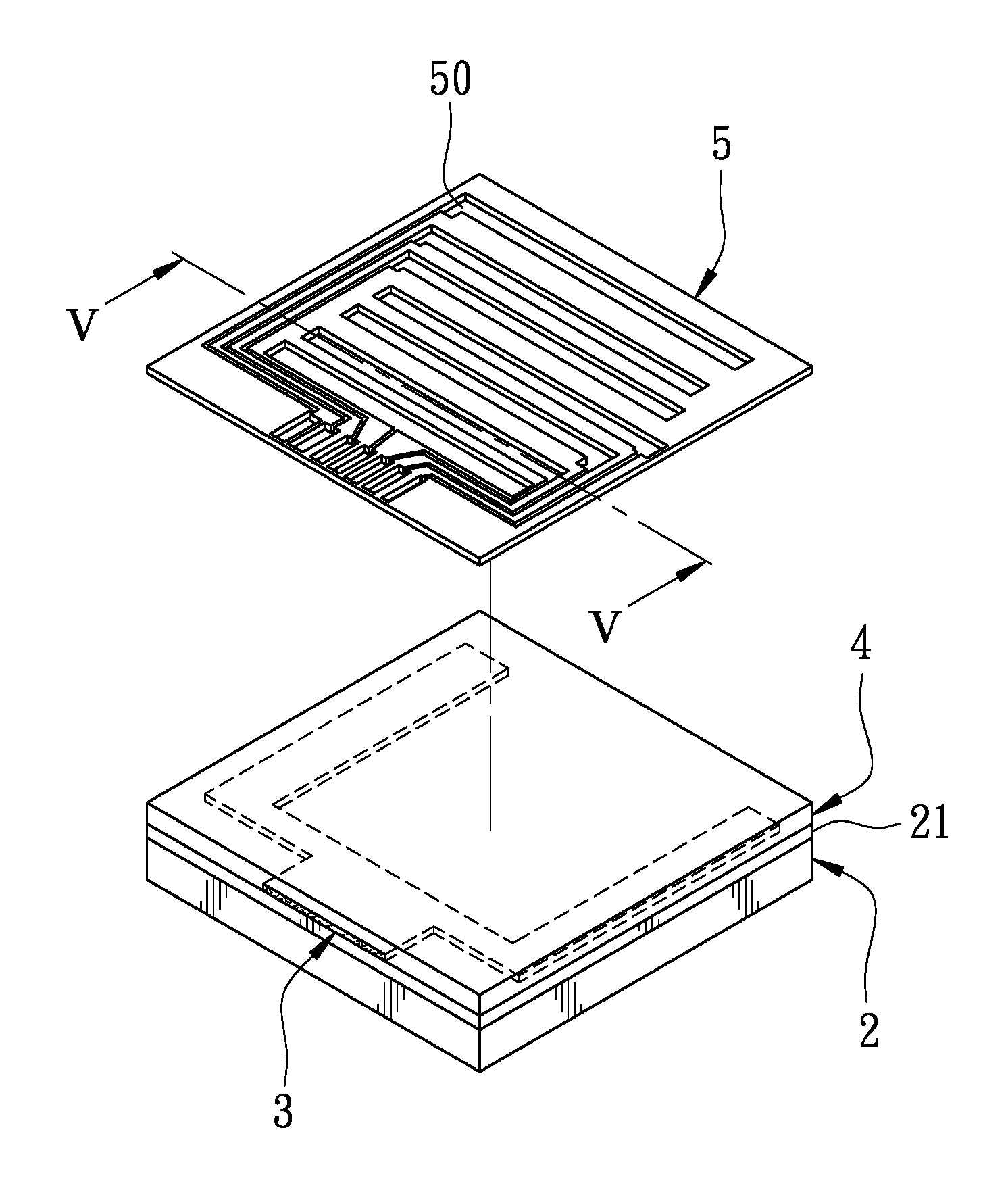

A method for fabricating a peripheral wiring unit of a touch panel includes the following steps: (a) forming a transparent conductive layer on a substrate, the substrate including a peripheral region and a window region surrounded by the peripheral region, and forming a photosensitive conductive layer on the peripheral region of the substrate, such that the photosensitive conductive layer at least partially overlies the transparent conductive layer; (b) exposing the photosensitive conductive layer by using a photomask; and (c) developing the exposed photosensitive conductive layer to form a peripheral wiring unit on the peripheral region of the substrate.
