TROMMEL ASSEMBLY HAVING A SPIRAL ASSEMBLY WITH DECAYING PITCH
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 12, 2016
app pub date -
May 8, 2014
filing date -
May 9, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

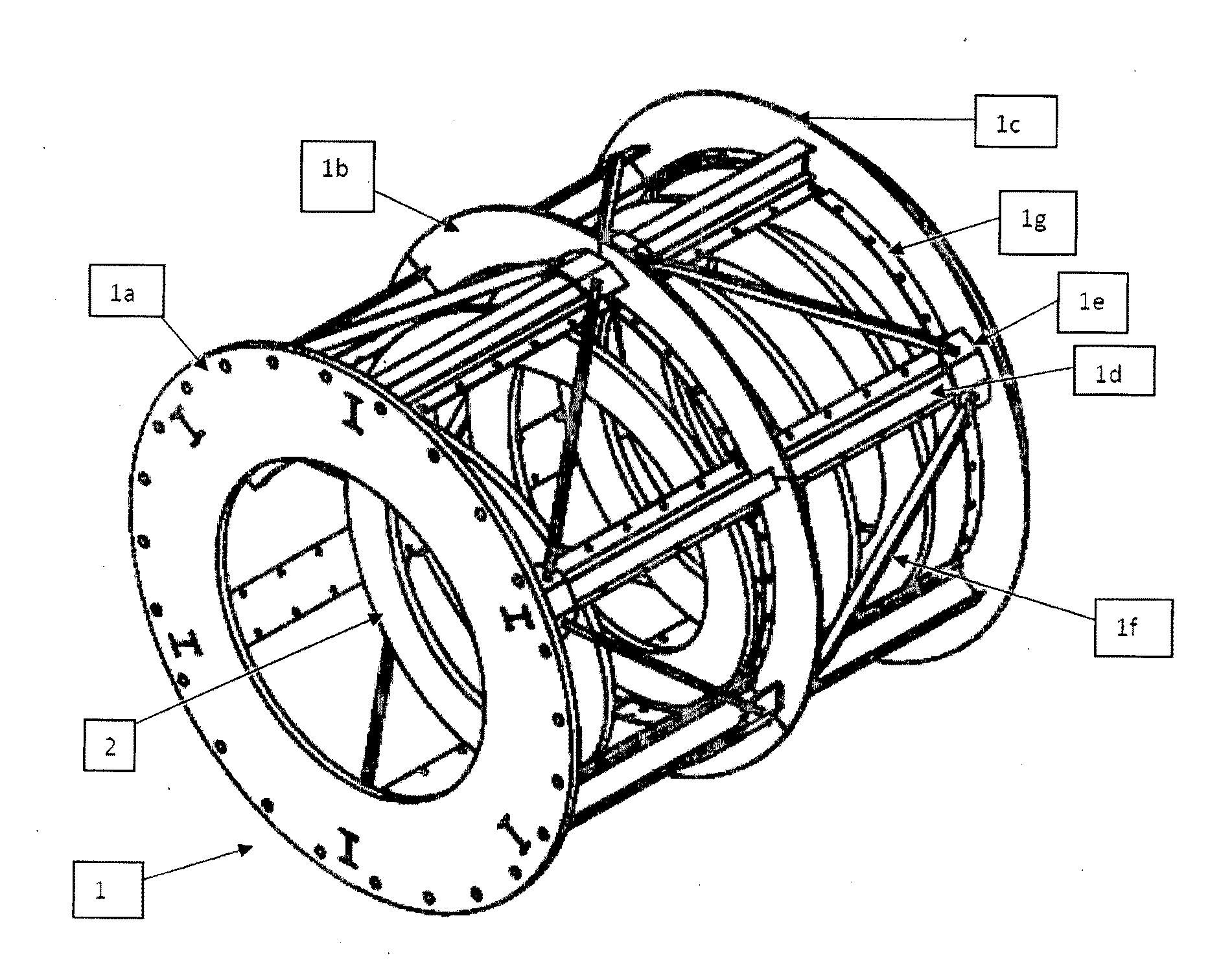

The trommel assembly (1) with a spiral assembly having a decaying spiral pitch (3) comprises rotating drum structure with the decaying spiral assembly (2) and screen panels (6) made of polymeric material or rubber compounds. The pitch (3) is at a maximum at the inlet and at a minimum at the outlet providing increased screening efficiency. Maximum pitch produces low media height with increased inlet velocity and minimum pitch increases media height. The spiral (2) is of single start, double start or multi start configuration. The pitch (3) decreases along the trommel such that screening efficiency is improved without affecting the retention time.
First Claim
Other Claims data not available
