Full Text

US Patent Application No: 2016/0126,169

LEADLESS SEMICONDUCTOR DEVICE AND METHOD OF MAKING THEREOF

---

Abstract

---

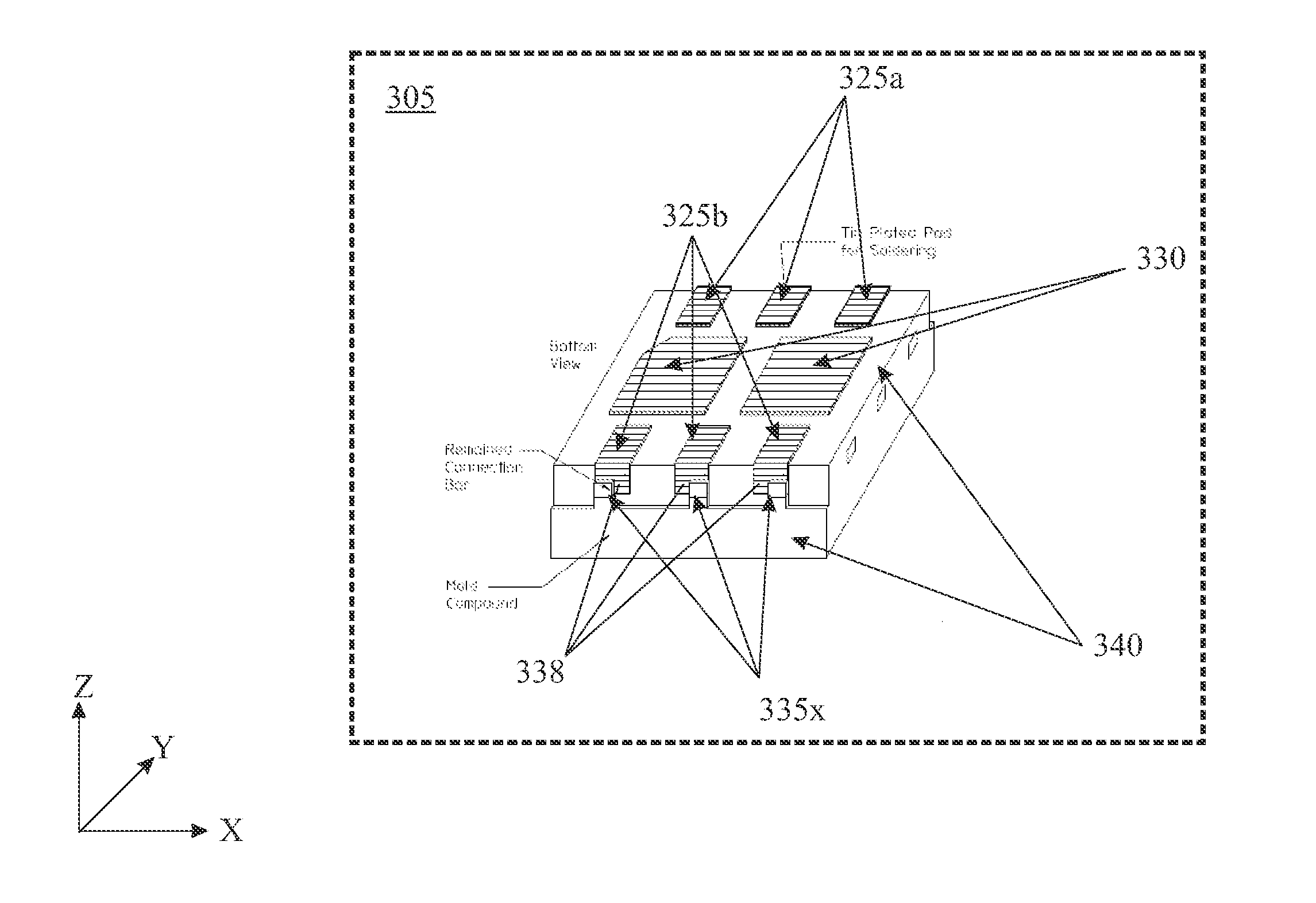

Consistent with an example embodiment, there is a leadless packaged semiconductor device having top and bottom opposing major surfaces and sidewalls extending there between. The leadless packaged semiconductor device comprises a lead frame sub-assembly having an array of two or more lead frame portions each having a semiconductor die arranged thereon. At least five I/O terminals each of said terminals comprise a respective metal side pad; and the respective metal side pad has a step profile. A feature of this embodiment is that these metal side pads, having a step profile, are electroplated to enhance their solderability.

---



---
