MONITORING SYSTEM AND DIAGNOSTIC DEVICE AND MONITORING TERMINAL THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 5, 2016
app pub date -
May 9, 2014
filing date -
May 15, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

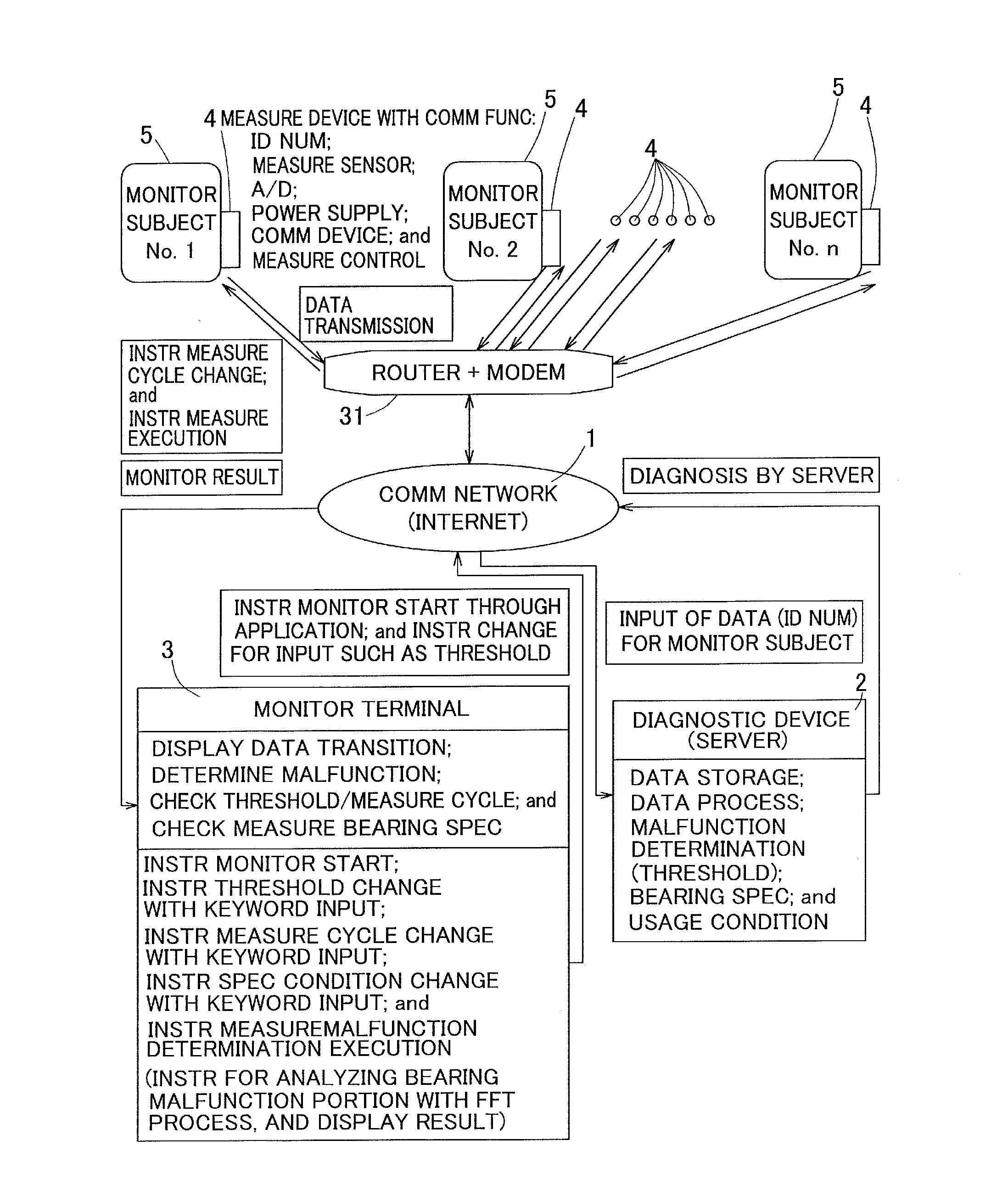

Provided is a monitoring system including a diagnostic device (2), a monitoring terminal (3), and a measurement device (4) with communication function connected via a communication network (1), thereby allowing a measurement condition and a diagnosis condition to be easily changed through the monitoring terminal, and allowing appropriate measurement and diagnosis even when a usage condition of a monitor subject is changed. The diagnostic device (2) includes: a diagnosis module (17) for performing malfunction diagnosis for a monitor subject (5) based on measurement data in accordance with a diagnosis condition; and a diagnosis condition changing module (19) which allows the diagnosis condition to be changed from the monitoring terminal (3). The monitoring terminal (3) generates and transmits the measurement condition instruction information (F1) to the measurement device (4), and transmits a diagnosis condition (F2) to the diagnostic device (2).
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2014225080 | May 15, 2013 |
| CN | A | CN105209995 | May 09, 2014 |
| EP | A1 | EP2998813 | May 09, 2014 |
| WO | A1 | WO2014185346 | May 09, 2014 |
International Classification(s)
- 2014 Application Filing Year
- H04L Class
- 29135 Applications Filed
- 23333 Patents Issued To-Date
- 80.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H04L Class
- 8.87 % this patent is cited more than
- 9 Age
