Vortex flowmeter including pressure pulsation amplitude analysis
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 29, 2020
Grant Date -
May 5, 2016
app pub date -
Nov 4, 2014
filing date -
Nov 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

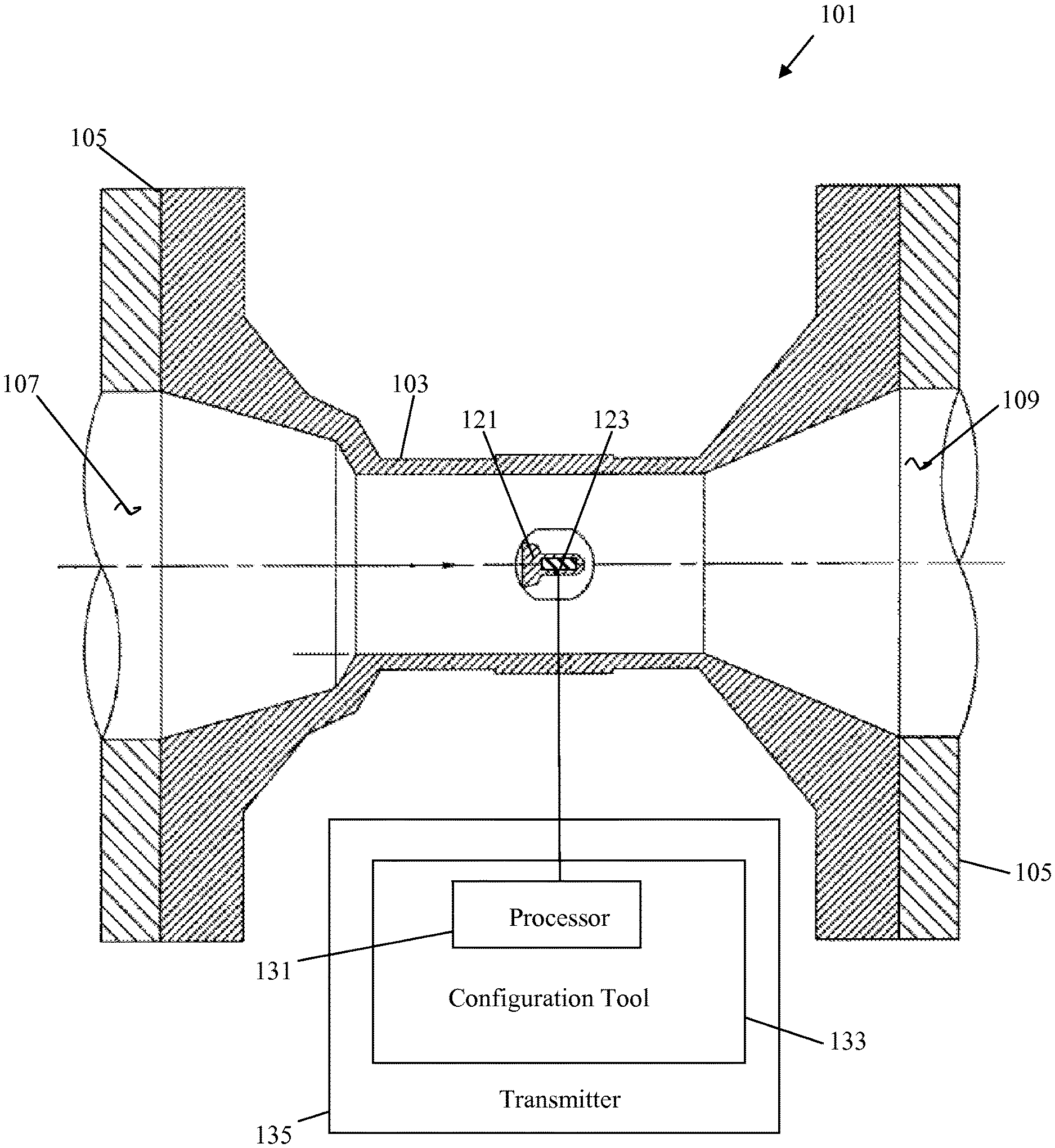

A configuration tool is for a vortex flowmeter having a flowtube, a bluff body positioned in the flowtube for shedding vortices in the fluid, and a pressure sensor configured to obtain a signal indicative of a time-varying fluid pressure having an oscillation associated with the vortices. The configuration tool includes a processor that determines a type of fluid flowing through the flowtube based on the amplitude of the oscillation. The processor sets a fluid-type setting of the vortex meter to match the determined type of fluid. An alarming system for a control system including such a flowmeter includes a processor that assesses a density of a fluid flowing through the flowtube based on the amplitude and compares the assessed density to a fluid density configuration setting. The processor activates an alarm if the difference between the assessed density and the fluid density configuration setting exceeds a threshold.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01F Class
- 1026 Applications Filed
- 869 Patents Issued To-Date
- 84.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01F Class
- 48.05 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 29, 2032 |
