Method for fabricating a photosensitive device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
May 12, 2014
filing date -
May 22, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

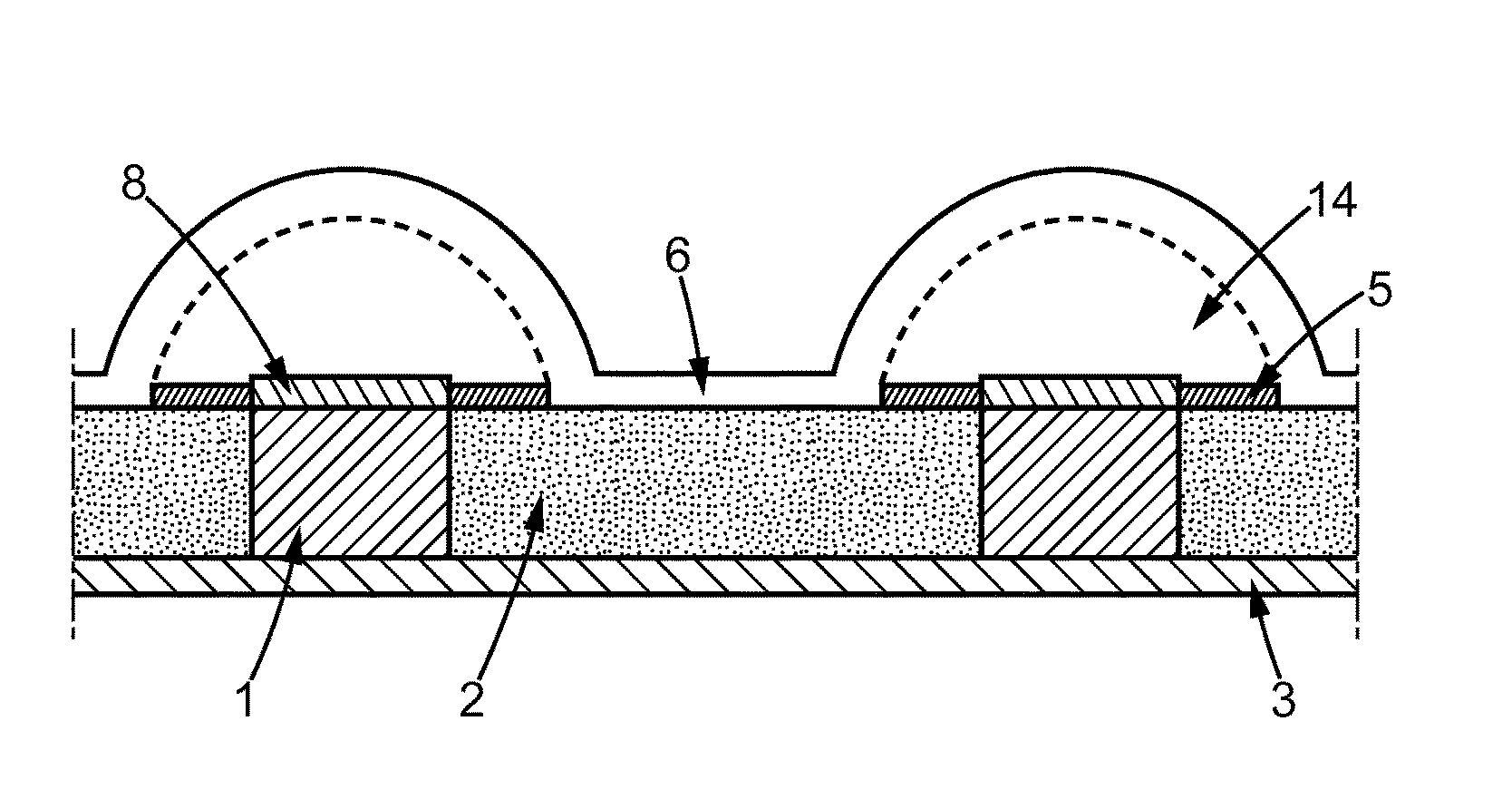

A method for fabricating a photosensitive device, comprising: a first step of preparing, on a substrate, at least a first photosensitive portion, active within a range of wavelengths, the first portion being surrounded by a second portion that is inactive. A material, covering the first portion, is selectively arranged into a hydrophilic layer by an electrochemical process. The second portion comprises a hydrophobic material on an upper surface opposite the substrate. The method further comprises the following steps: spraying on the upper surfaces of the first and second portions a liquid comprising a transparent material, and forming a converging lens containing the material, above the first portion.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| FR | B1 | FR3006108 | May 22, 2013 |
| WO | A1 | WO2014188105 | May 12, 2014 |
| EP | B1 | EP3000137 | May 12, 2014 |
| CN | B | CN105378944 | May 12, 2014 |
| JP | B2 | JP6476168 | May 12, 2014 |
| TW | B | TWI520369 | May 21, 2014 |
International Classification(s)
- 2014 Application Filing Year
- H01L Class
- 23828 Applications Filed
- 21803 Patents Issued To-Date
- 91.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
