Roller Arrangement Having a Movable Inlet Plate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 28, 2016
app pub date -
May 8, 2014
filing date -
May 17, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

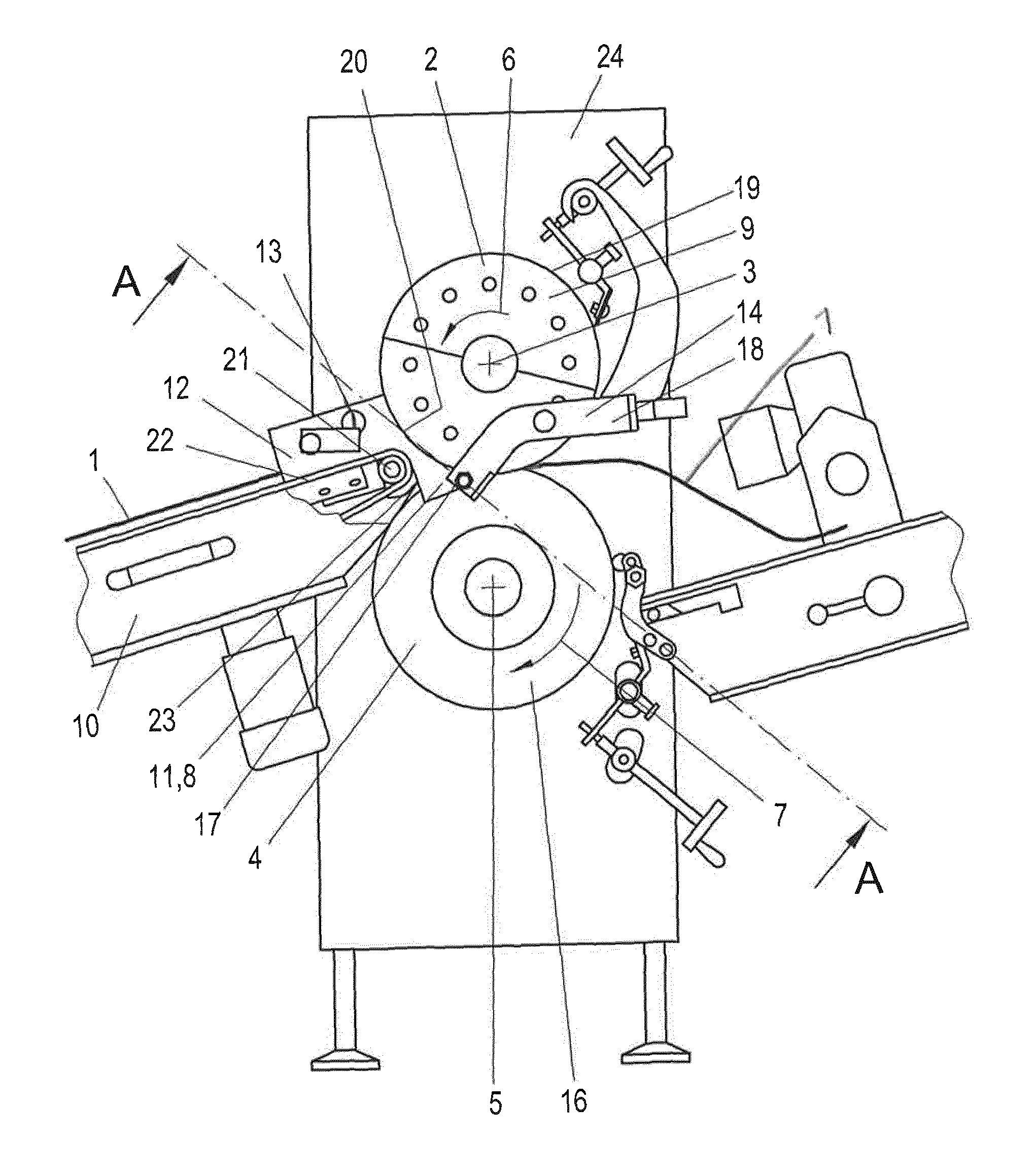

An apparatus to form a flat rolled-out continuously conveyed dough strip has a first roller and a second roller driven in mutually opposite rotary directions. A roller nip between the first and second rollers roll out a dough strip. A terminating ring is disposed concentrically with the first roller and the first roller projects radially for lateral sealing of the roller nip. A conveying device supplies the dough strip to the inlet region of the roller nip, where a movable inlet plate provided. The inlet plate is movable by a moving device from an operating position in which the inlet plate laterally seals the inlet region of the roller nip into a maintenance position in which the inlet plate is disposed at a distance from the roller nip. A clamping device moves the inlet plate onto the second roller in the operating position.
First Claim
Other Claims data not available
