Device and method for safeguarding an automatically operating machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Dec 18, 2015
filing date -
Jun 21, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

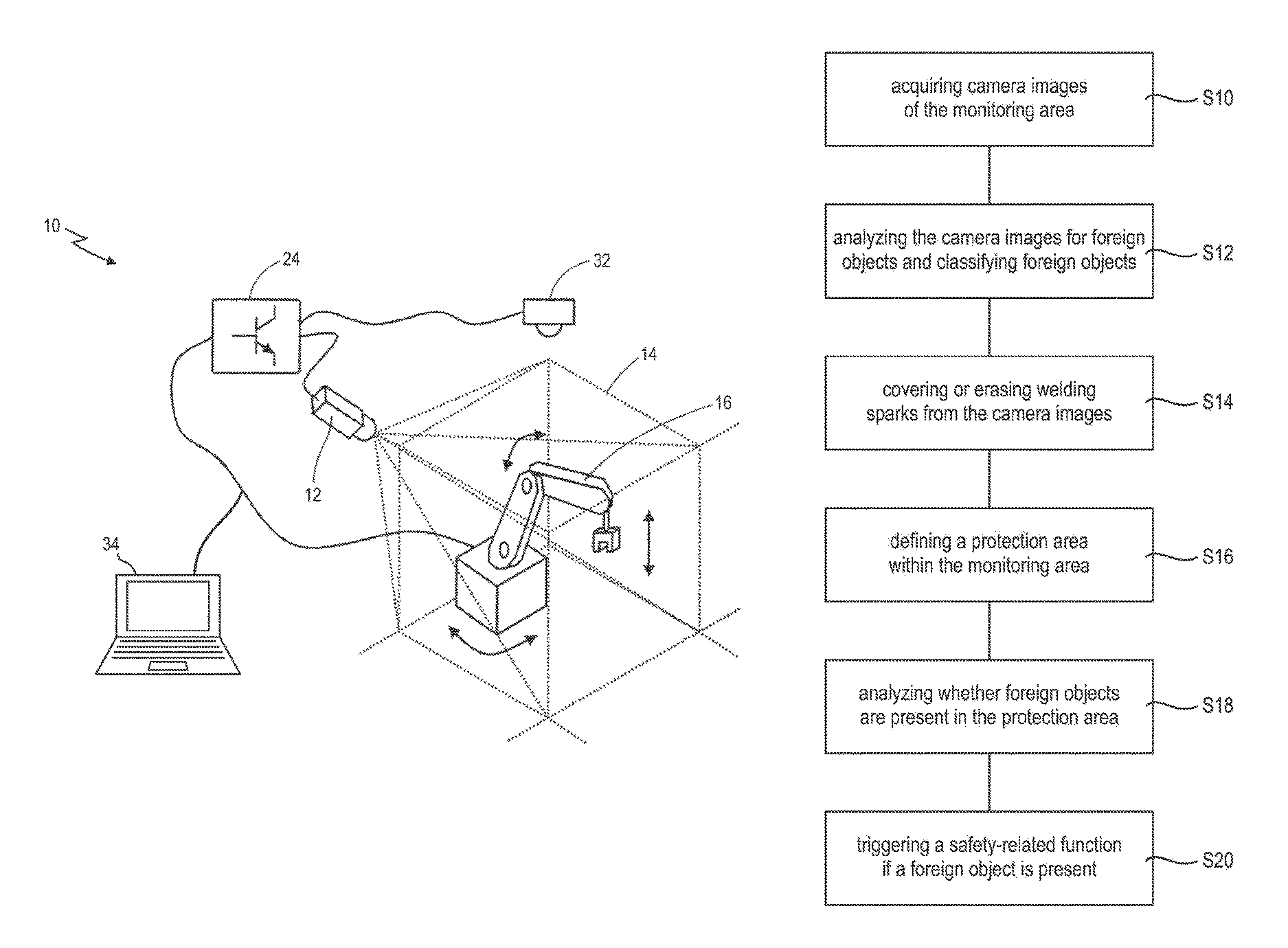

A device for safeguarding a monitoring area in which an automatically operating machine is arranged, having a camera system for monitoring the monitoring area, a configuration unit for defining at least one protection area within the monitoring area, and an analysis unit for triggering a safety-related function. The camera system supplies camera images of the protection area and the analysis unit analyzes whether a foreign object is present in the protection area or penetrates into the protection area. The analysis unit is configured to classify a foreign object, which is present in the protection area or penetrates into the protection area, by analysis of the camera images, to determine on the basis of one or more features characteristic of welding sparks whether the foreign object is a welding spark. The analysis unit triggers the safety-related function if the foreign object has not been recognized as a welding spark.
First Claim
Other Claims data not available
Family
International Classification(s)
- F16M:FRAMES, CASINGS, OR BEDS, OF ENGINES OR OTHER MACH....
- H04N:PICTORIAL COMMUNICATION, e.g. TELEVISION
- F16P:SAFETY DEVICES IN GENERAL
- B23K:SOLDERING OR UNSOLDERING; WELDING; CLADDING OR PLA....
- G06T:IMAGE DATA PROCESSING OR GENERATION, IN GENERAL
- G06K:RECOGNITION OF DATA; PRESENTATION OF DATA; RECORD ....
- 2015 Application Filing Year
- F16M Class
- 1190 Applications Filed
- 816 Patents Issued To-Date
- 68.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16M Class
- 30.96 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
