PELT BOARD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 14, 2016
app pub date -
May 15, 2014
filing date -
May 23, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

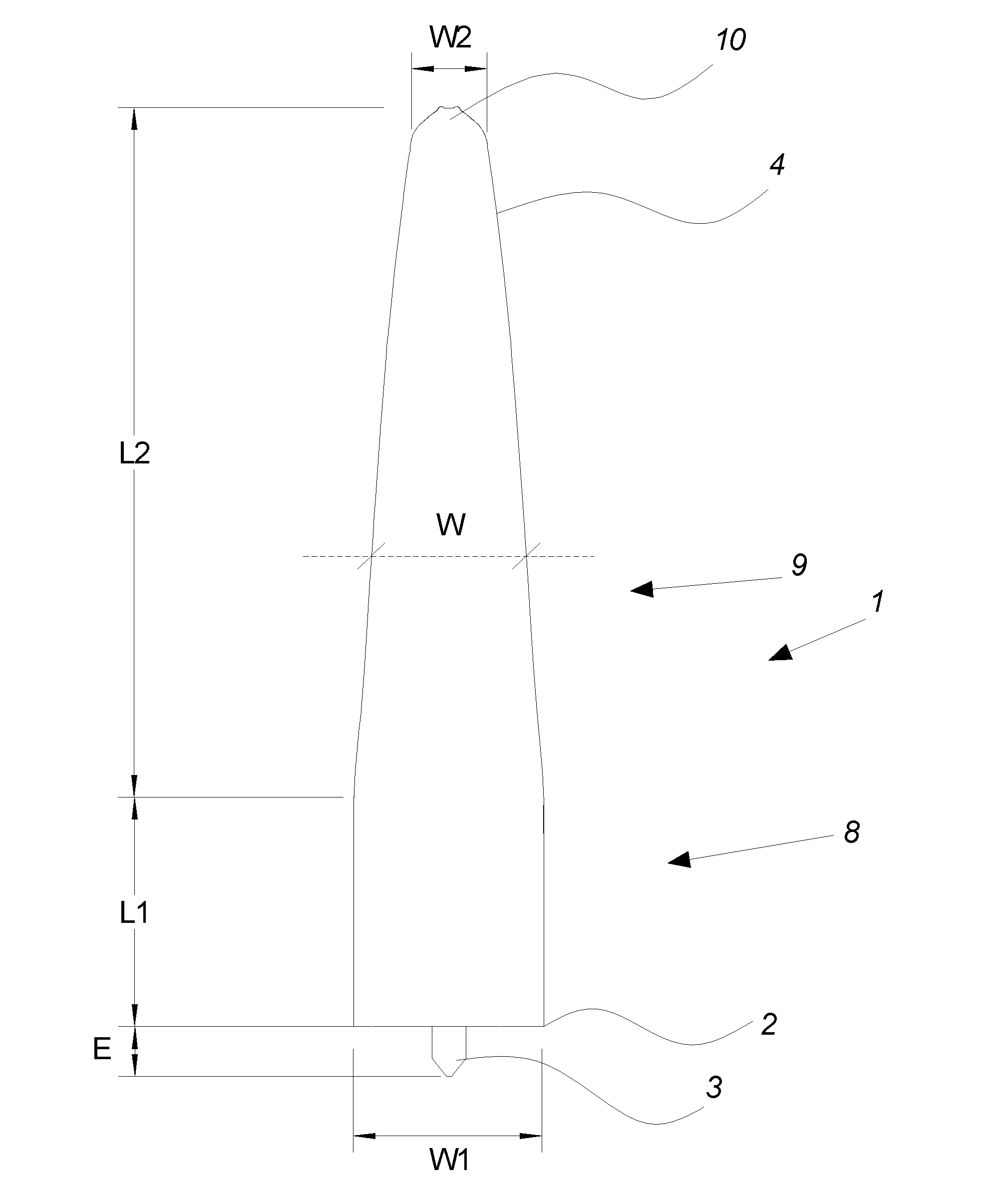

A pelt board (11) is disclosed for stretching and drying of tubular pelts (5), the pelt board (11) having a tip end (4) from which the pelt is drawn onto the pelt board (11) and a foot end (2), wherein the pelt board (11) has a lower part (8) nearest the foot end (2) where the outer cross-sectional circumference of the pelt board (11) is substantially constant and an upper part (9) between the lower part (8) and the tip end (4), where the outer cross-sectional circumference of the upper part (9) gradually decreases towards the tip end (4), wherein the longitudinal extent (L1) of the lower part (8) is in the range of 36 to 50 cm, more preferably in the range of 40 to 45 cm. Furthermore is disclosed an extension piece for connecting with a standard pelt board and fat-absorbing inner bags (13, 19) for use with the pelt board (11).
First Claim
Other Claims data not available
