Vanadium Solid-Salt Battery
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 30, 2015
filing date -
May 31, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

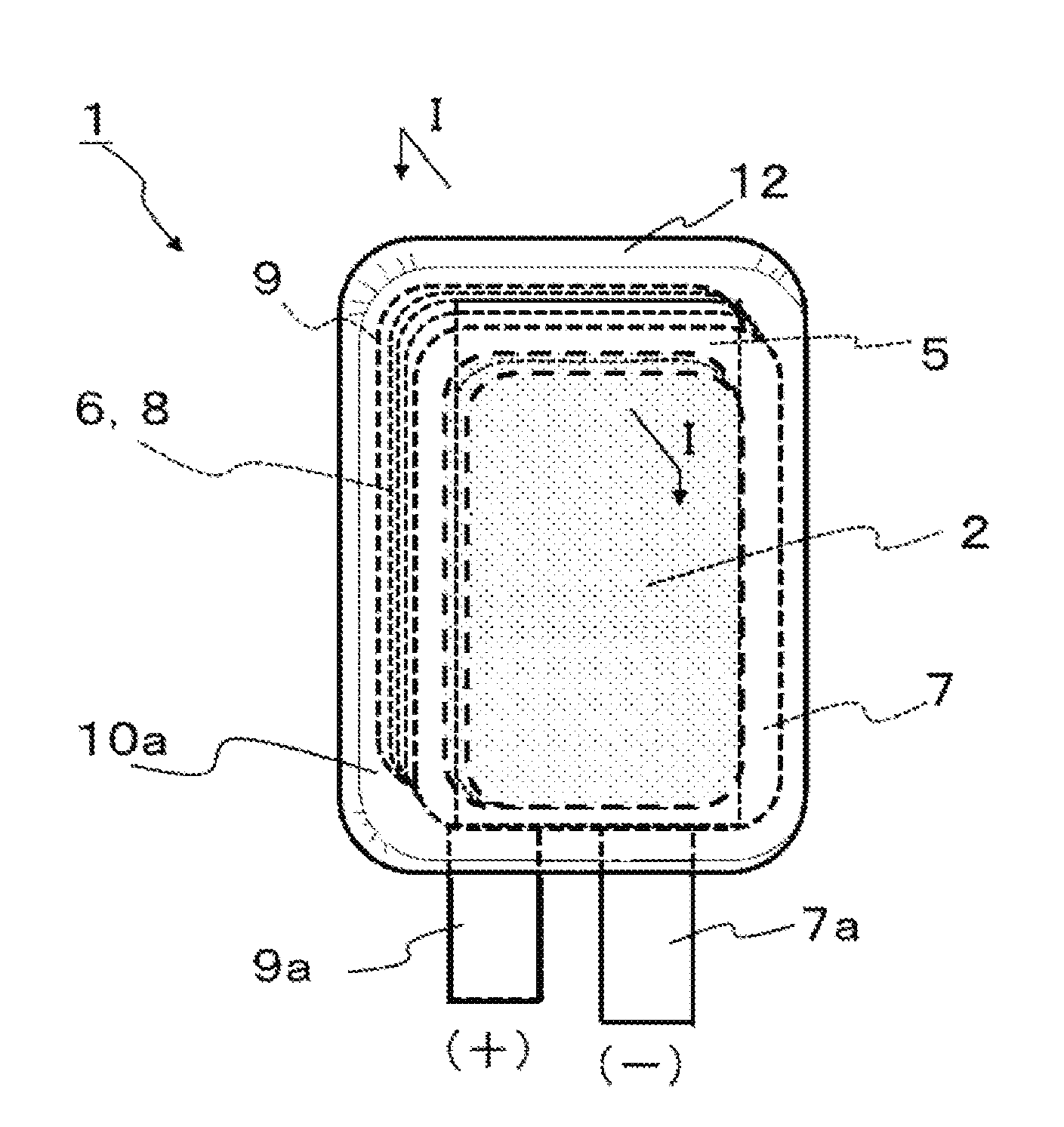

The present disclosure relates to a vanadium solid-salt battery including: a power generating unit including first and second electrode members each containing vanadium, a separator separating the first and second electrode members from each other, and an electrolyte; a first sheet making contact with the first electrode member; a first flat plate-shaped conductive member making surface contact with the first sheet; a second sheet making contact with the second electrode member; a second flat plate-shaped conductive member making surface contact with the second sheet; a third sheet covering the first and second flat plate-shaped conductive members; and a first bonding portion bonding a peripheral portion of the third sheet so that at least portions of the first flat plate-shaped conductive member, the first sheet, the power generating unit, the second sheet and the second flat plate-shaped conductive member are pressure-bonded.
First Claim
Other Claims data not available
