PIPE FIXING DEVICE FOR CONSTRUCTION MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 31, 2016
app pub date -
May 30, 2013
filing date -
May 30, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

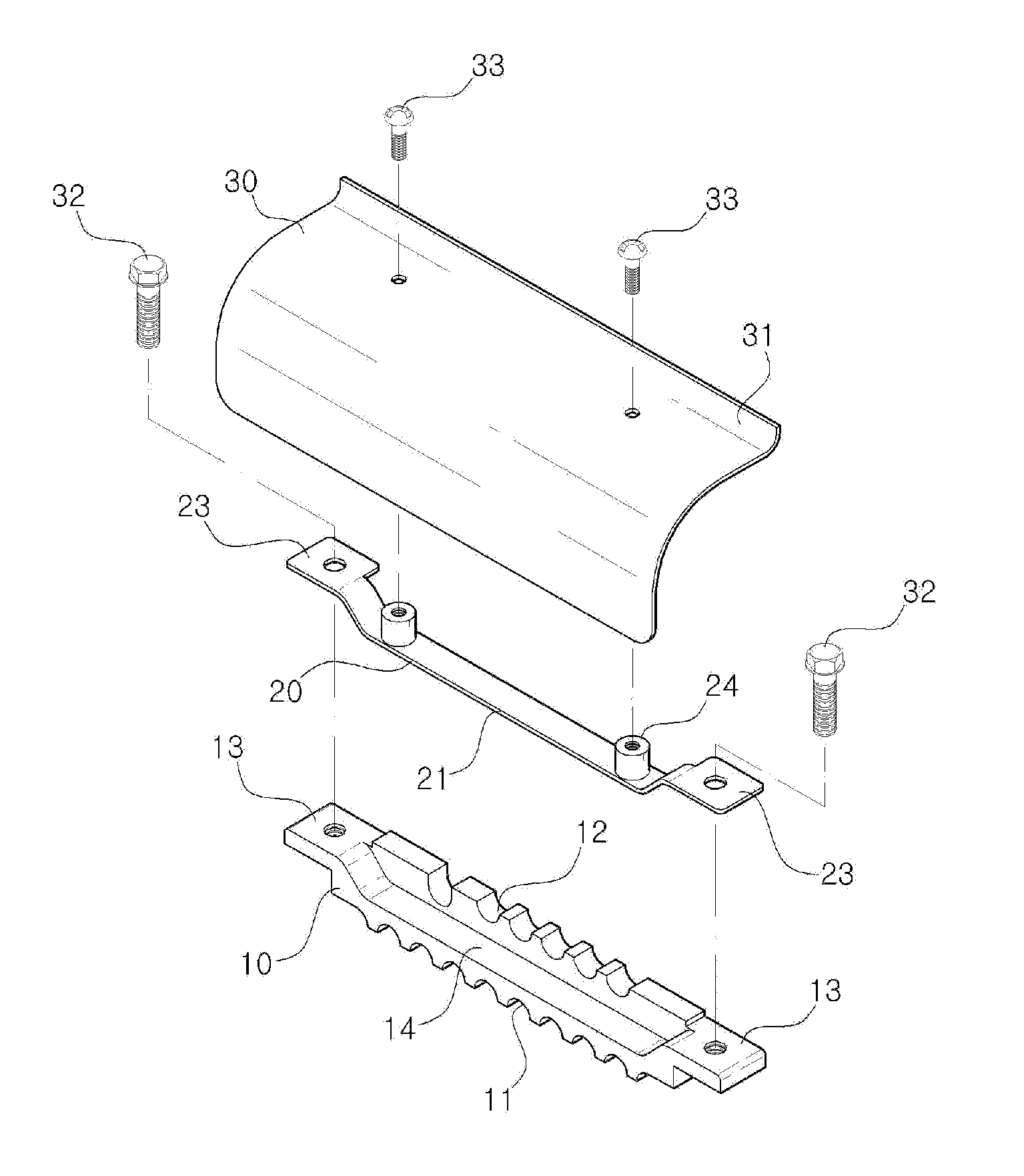

The present invention relates to an improved pipe fixing device for a construction machine, wherein a hydraulic hose that is connected to a side of a hydraulic cylinder of a work apparatus that has a boom of an upper swivel body of the construction machine, is plumbed and assembled to be detachable in phases from an upper and a lower part of a clamp, thereby fixing the movement of the hydraulic hose so to be structurally sound and thereby reducing the required manpower. The pipe fixing device comprises: a hose clamp comprising a pair of fixing parts that are attached to the side of an upper swivel body, a first connection part supporting at pre-determined intervals a plurality of first array hoses that are formed extending in-between the pair of fixing parts and that arrive from a lower part, and a second connection part supporting at pre-determined intervals a plurality of second array hoses; a guide that is coupled to the hose clamp so as to restrict the movement of the plurality of first array hoses; and a cover that is fixed on the guide.
First Claim
Other Claims data not available
