Charge control device and charge control method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Dec 2, 2015
filing date -
Jun 3, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

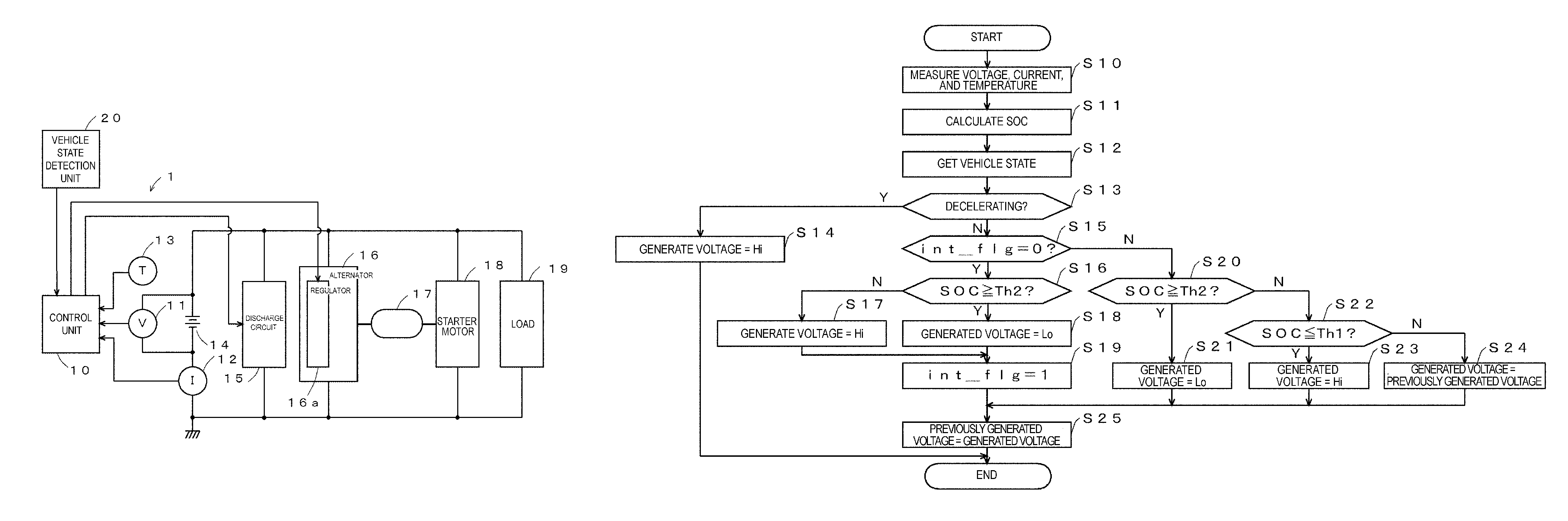

To efficiently control charging and regenerative control for a secondary battery. A charge control device, including: a calculation unit (voltage sensor (11), current sensor (12), and control unit (10)) that calculates a state of charge of the secondary battery; a detection unit (vehicle state detection unit (20)) that detects a traveling state of the vehicle; and a control unit (control unit (10)) that, when it is detected that the vehicle is decelerating, sets a voltage generated by an alternator higher than the terminal voltage of the secondary battery in order to regeneratively charge the secondary battery, that, when it is detected that that the vehicle is not decelerating, sets the voltage generated by the alternator lower than the terminal voltage of the secondary battery when a state of charge is greater than a prescribed second threshold value, and that sets the voltage generated by the alternator higher than the terminal voltage of the secondary battery when the state of charge is less than a prescribed first threshold value. The second threshold value is greater than the first threshold value, and the first threshold value and the second threshold value are set within a low SOC region.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02J Class
- 4445 Applications Filed
- 3538 Patents Issued To-Date
- 79.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02J Class
- 22.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
