TRANSMITTER AND RECEIVER CIRCUIT, INTEGRATED CIRCUIT, AND TESTING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 24, 2016
app pub date -
Sep 4, 2015
filing date -
Sep 18, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

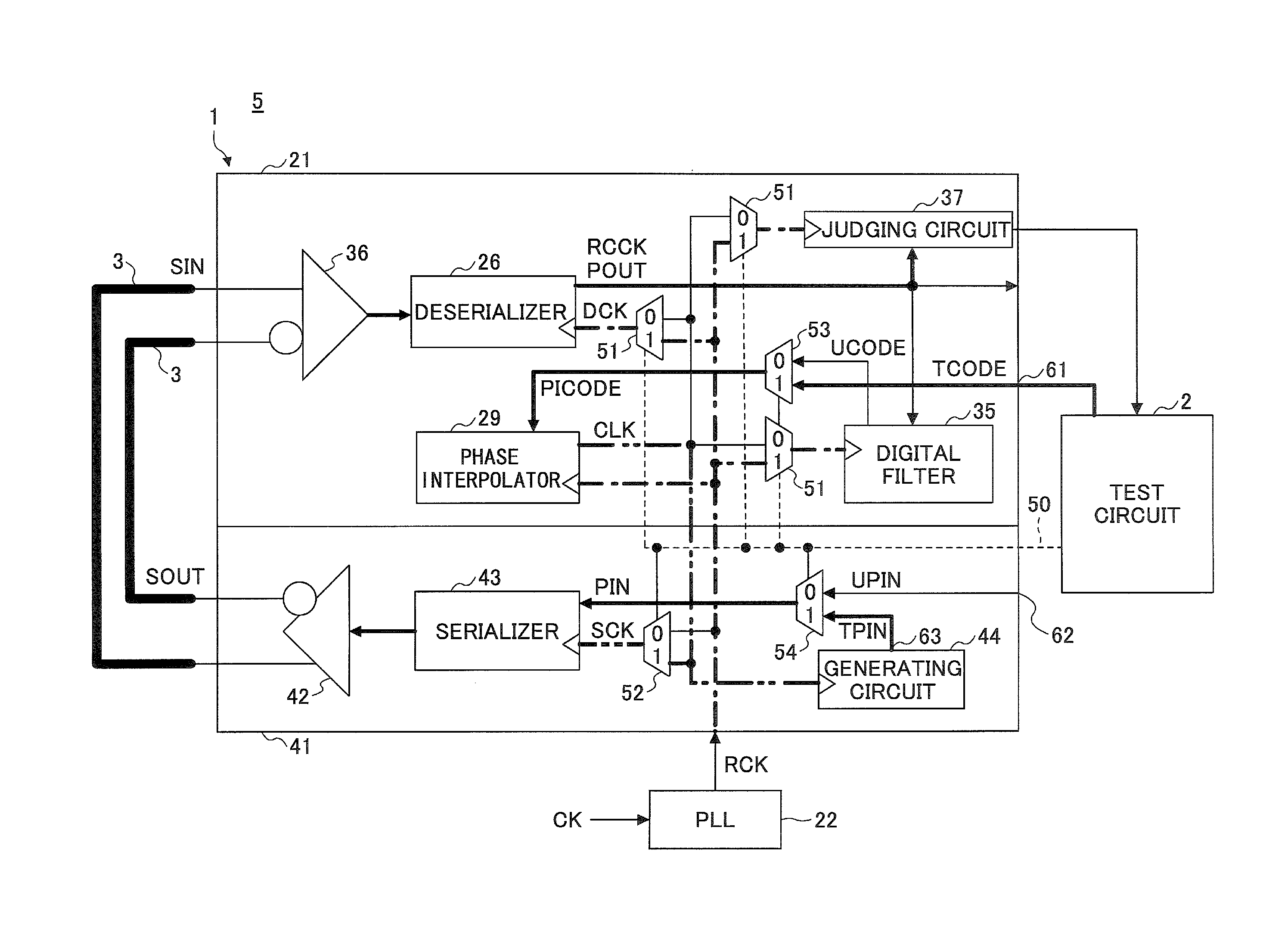

A transmitter and receiver circuit includes a phase interpolator that generates a process clock having a phase based on a reference clock, a first selector that selects a first clock so that the first clock is the process clock in a first mode and is the reference clock in a second mode, a deserializer that converts a serial input data into a parallel output data in accordance with the first clock and outputs the parallel output data, a second selector that selects a second clock so that the second clock is the reference clock in the first mode and is the process clock in the second mode, and a serializer that converts a second parallel input data into a serial output data according to the second clock and outputs the serial output data.
First Claim
Other Claims data not available
