Droplet Actuators that Include Molecular Barrier Coatings
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 24, 2016
app pub date -
Dec 3, 2015
filing date -
Jun 14, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

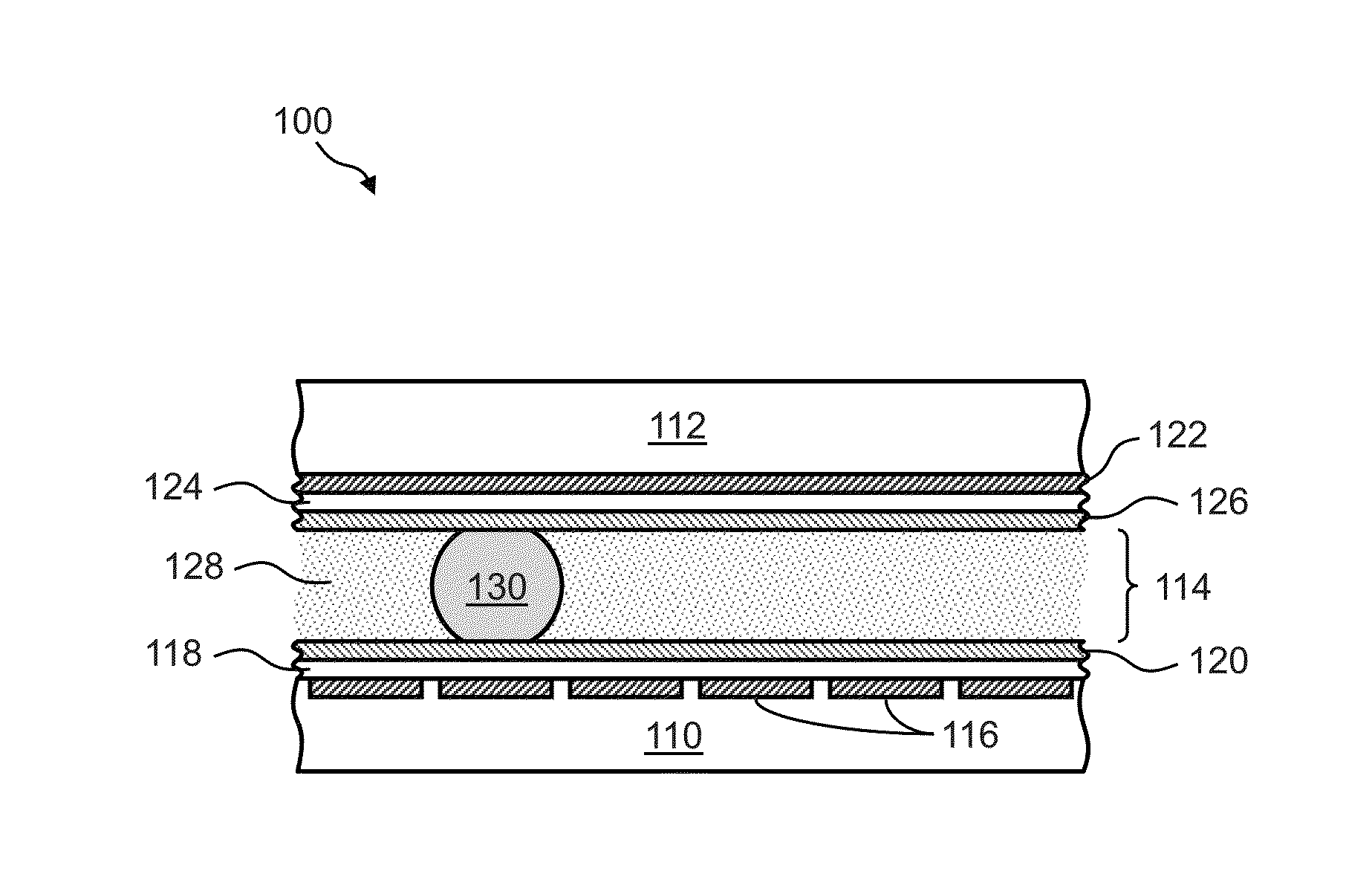

Droplet actuators that include molecular barrier coatings are provided. The molecular barrier coating may be provided atop the conductive layer of the top substrate, atop the droplet operations electrodes of the bottom substrate, or both. Where the conductive layer of the top substrate and/or the droplet operations electrodes of the bottom substrate are formed of an electrically conductive organic polymer, such as poly(3,4-ethylenedioxythiophene) poly(styrenesulfonate) (PEDOT:PSS), the molecular barrier coating helps to immobilize the contents of the PEDOT:PSS layer. Further, the molecular barrier coating reduces, preferably entirely eliminates, moisture from seeping into the electrically conducting organic polymer. Methods of conducting droplet operations using the disclosed droplet actuators are also provided.
First Claim
Other Claims data not available
