AIRBAG FOR A MOTOR VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 7, 2014
filing date -
May 7, 2013
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

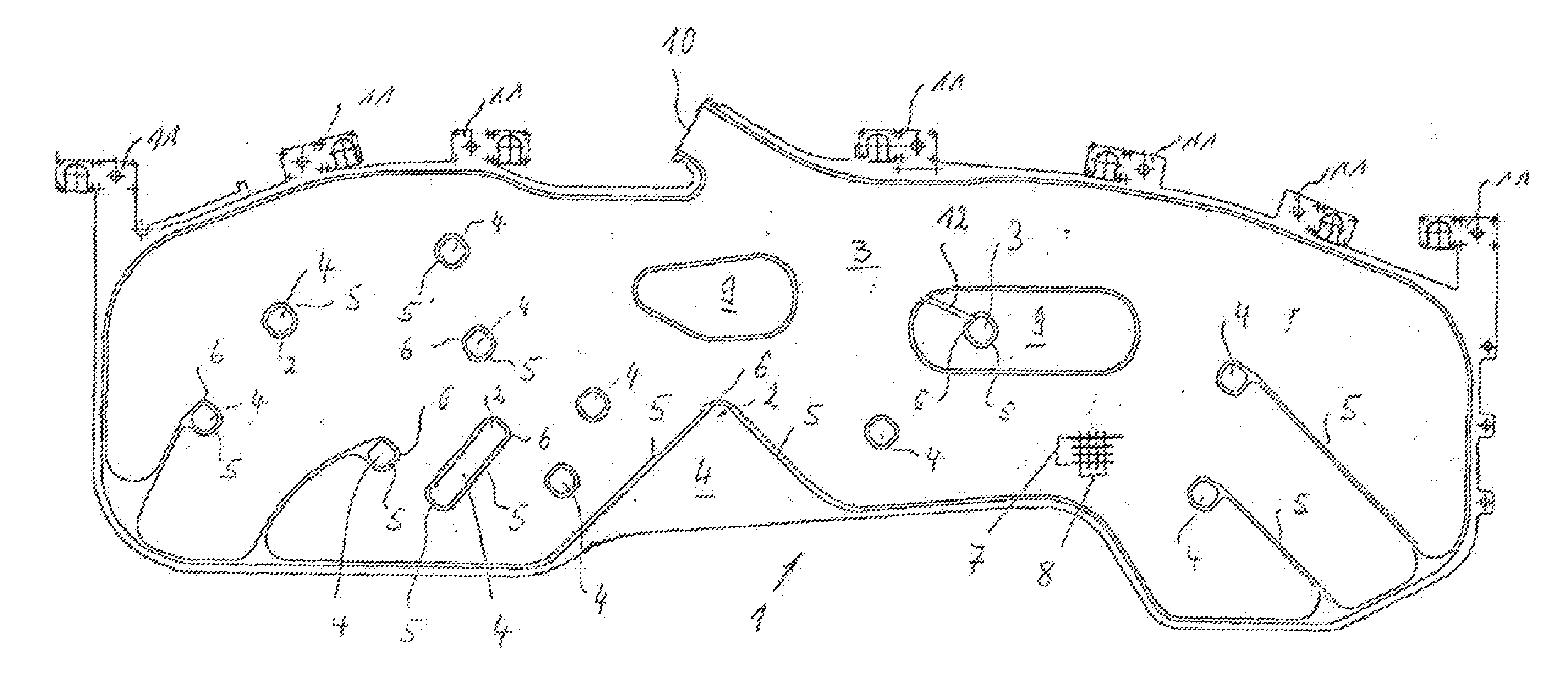

The present invention relates to an airbag for a motor vehicle. The airbag comprises a gas cushion (1) which is formed from at least two layers of fabric and which is brought on inflation from a folded or rolled state into an unfolded state. The at least two layers of fabric are connected to each other at connection points to form inflated cushion portions (3) and non-inflated cushion portions (4), and the connection points have linear connection points (5) and rounded connection points (6). The linearly extending connection points (5) are arranged at an angle of 45° relative to the threads (7, 8) forming the layers of fabric, or at an angle deviating slightly there from that does not impair the tear strength of the connection points when the gas cushion (1) is in the inflated state.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
KEY SAFETY SYSTEMS INC | 7000 NINETEEN MILE ROAD STERLING HEIGHTS MI 48314 |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Muzzaffar, Shoaib | Dietzenbach, DE | 1 | 2 |
# of filed Patents : 1 Total Citations : 2 | |||
Volkmann, Matthias | Kronberg, DE | 23 | 169 |
# of filed Patents : 23 Total Citations : 169 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 2 Citation Count
- B60R Class
- 9.67 % this patent is cited more than
- 9 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 24, 2027 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
