Polarization Re-alignment for Mobile Satellite Terminals
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 13, 2015
filing date -
Jul 30, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

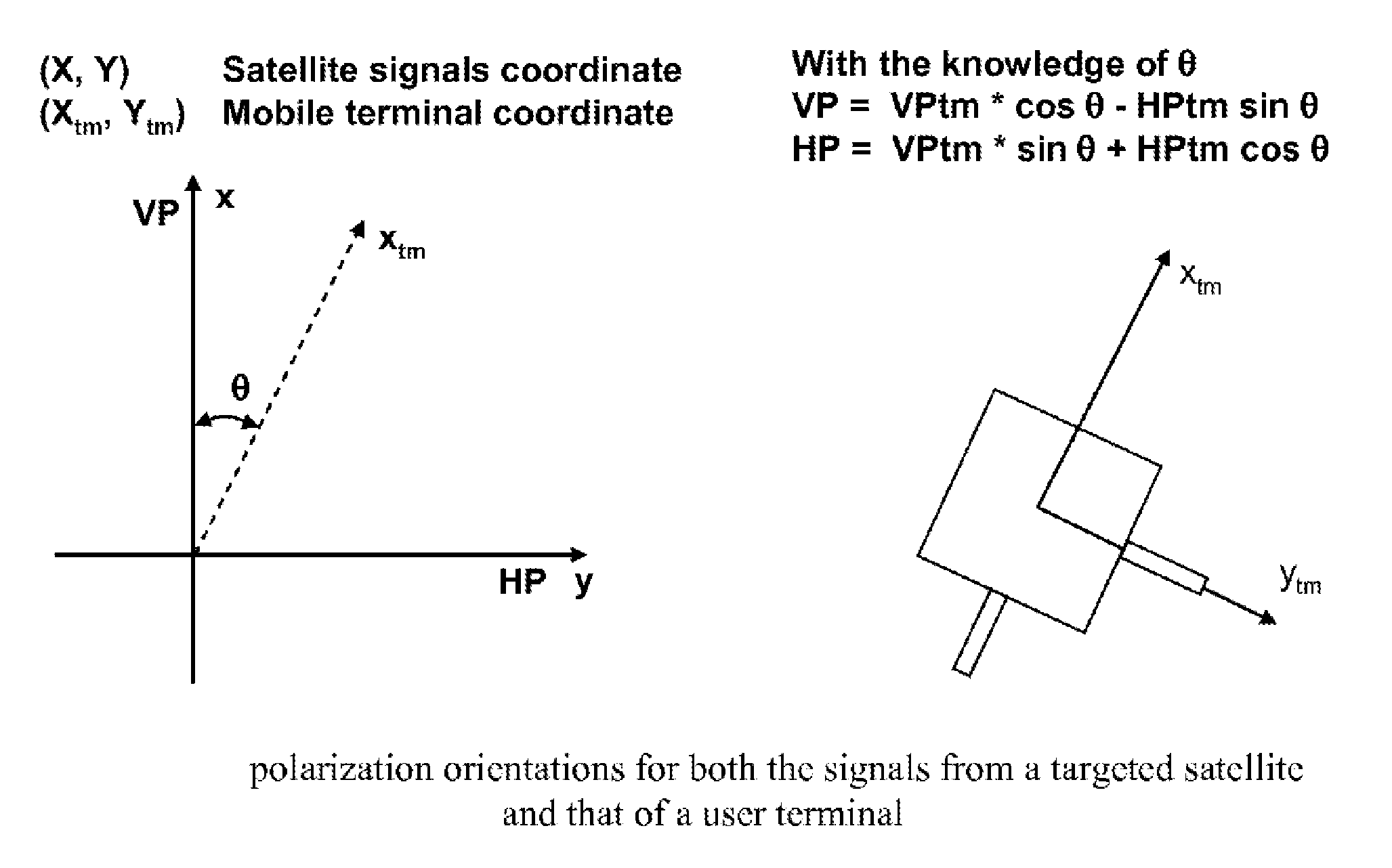

A system for allowing ground terminals, specifically mobile ground terminals, to dynamically and electronically realign signal polarizations to match that of incoming and outgoing signal polarizations from designated space assets, specifically communications from satellites, comprising an adaptive re-orientation technique based on a cost minimization function, and a means of direct calculations of weighting components based on the knowledge of the orientation and bearing of both the satellites and the ground terminals. The embodiment will allow a mobile ground terminal to electronically realign itself to the signals of a satellite, without the need for mechanical processes to physically re-orient the antenna array.
First Claim
Other Claims data not available
