ELECTROSTATIC PROTECTION DEVICE AND LIGHT-EMITTING MODULE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 9, 2015
filing date -
May 8, 2013
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

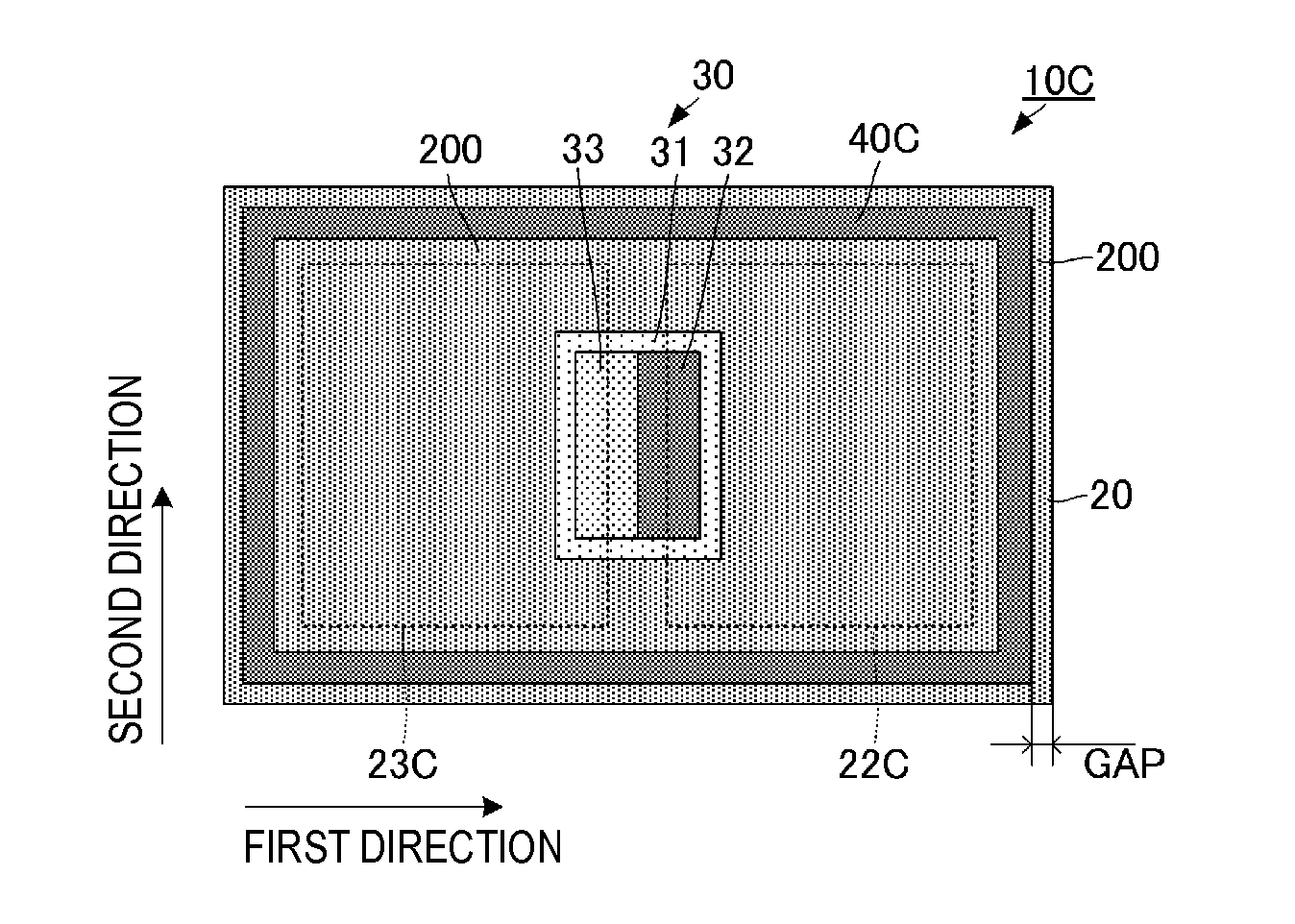

An electrostatic protection device includes a base member formed of a high-resistance semiconductor material. External connecting lands are formed on a first principal surface of the base member along a first direction with a space therebetween. A diode section is formed in the first principal surface of the base member through a semiconductor forming process. The diode section is formed between formation regions of the external connecting lands along the first direction. A high concentration region is a region that has the same polarity as the base member and contains larger amounts of impurities than the base member. The high concentration region is formed in a ring shape enclosing the diode section in a plan view of the base member.
