Lighting apparatus for tobacco-based products
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Sep 15, 2014
filing date -
Sep 15, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

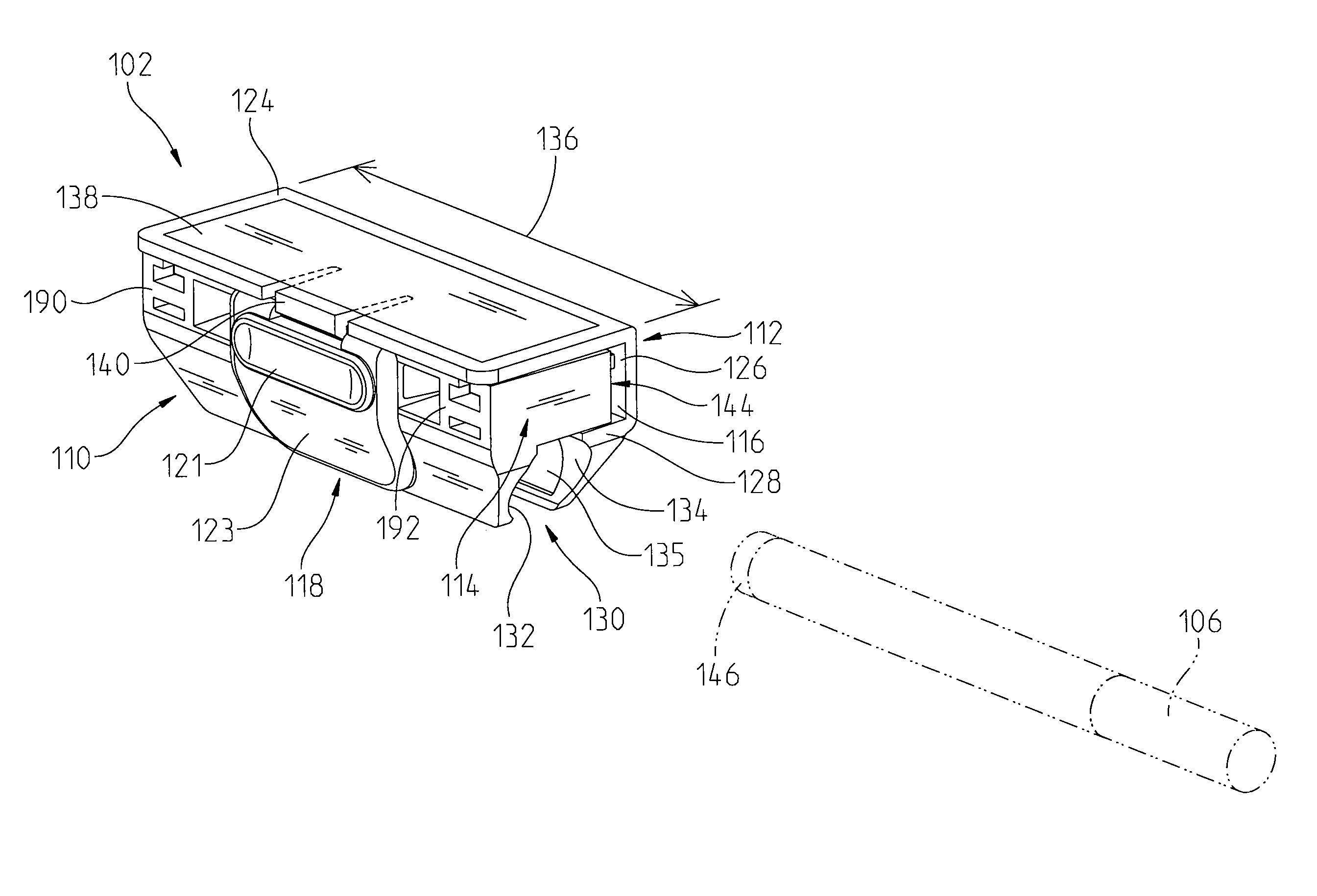

An igniter apparatus for igniting a tobacco-based product having a sensitized tip. The igniter apparatus includes a first member and a second member cooperatively defining a chamber having sides supporting an abrasive. The first member and second member are biased at a first position with a bias element and movement of the first member toward the second member compresses the bias element, reduces the size of the chamber, and thereby decreases the distance between the abrasives located at the side of the chamber. Insertion of the tobacco based product in the first position locates the sensitized tip adjacent to the abrasives. Compression of the bias element reduces the size of the chamber such that the sensitized tip contacts the abrasive. Removal of the tobacco-based product from the reduced-in-size chamber ignites the sensitized tip, thereby lighting the tobacco-based product for smoking.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F23Q Class
- 64 Applications Filed
- 46 Patents Issued To-Date
- 71.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F23Q Class
- 33.02 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
