METHOD AND DEVICE FOR HANDLING ELONGATED ARTICLES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 13, 2015
filing date -
Sep 15, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

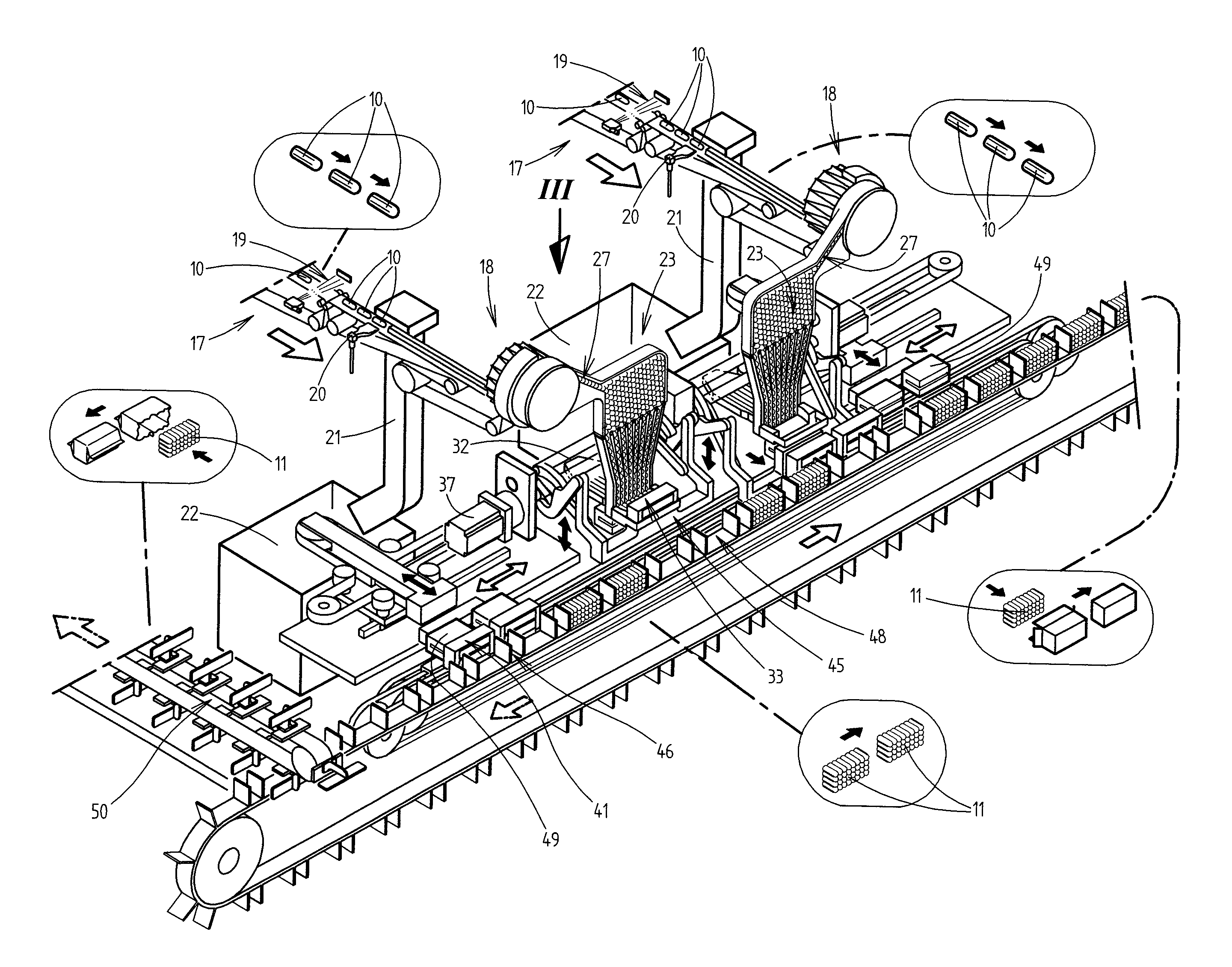

A method for handling elongated articles wherein the articles are removed from a hopper, combined to form a group of articles, and supplied as a group of articles to a packaging process, wherein the formation of the articles in the group corresponds to the formation of the articles in the packaging process. The articles are removed from the hopper and are transferred to a pocket of a first intermediate conveyor as part groups with layers of several articles, wherein the number of layers of articles in the pocket of the first intermediate conveyor is smaller than the number of layers of articles in the group, and the part groups are transferred from the first intermediate conveyor to a second intermediate conveyor, and several part groups are transferred together as a group from the second intermediate conveyor to a removal conveyor, which supplies the group to a packaging device.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B65B Class
- 26.28 % this patent is cited more than
- 9 Age
